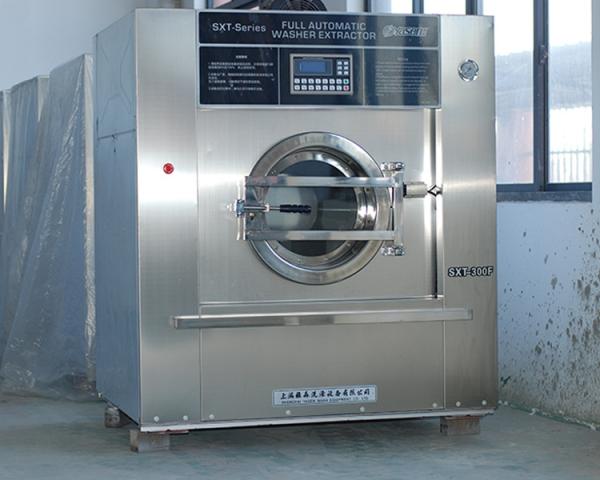

Japanese Commercial Washing Machine 15kg 25kg with Free Standing/Tiltable Installation
Applications
SXT-F Series Washer-extractor is suitable for hotels, restaurants, hospitals, garment factories, industrial-mining enterprises, and individual washing-dyeing operations. It is designed for washing cotton, wool, chemical fiber, and other fabrics.
Product Features
Fully Automatic Computer Control System
SXT-F washer-extractor features professional computer control system with excellent capacity and superior functionality. It includes 30 programmable procedures and 5 standard programs, all designed with user-friendly operation.
- User control over work liquid-level, wash temperature, and wash time
- Efficiently meets washing requirements in different situations
High Strength & Long Durability
- Creative stainless steel drum design prolongs machine lifespan during overload situations
- Advanced limit principle design with stainless steel outer vat (50-150 kg models)
- High corrosion resistance and stability
- High-strength big shaft-pedestal and high-accuracy short shaft design reduces transverse vibration
- High-precision bearing core extends lifespan and durability
- State invention patent seal technology with double water-proof design
- Imported fluorine rubber seal material with special compartment design
Industry-Leading Vibration Control
- Scientifically added overload weight combines gravity and vibration source center
- Achieves perfect balance of suspended object
- High-efficiency vibration-proof springs with 98% vibration reduction rate
Excellent Design & Fine Production
- Frequency-conversion drives with endless speed adjustment
- Stable, quiet operation
- High-quality bearings for long lifespan
- Patent technology seal design resists high temperature and super acid-alkali
- Stainless steel panel with high corrosion proof (back panel galvanized)
- Patent technology safe door-lock union ensures safety
- Five compartment automatic detergent adding system
- Nylon combination injection moulding structure with high corrosion proof
- Larger diameter loading door with ergonomic design reduces labor strength
- Steam heating and hot water heating options
After Sales Service
- 1-year whole machine guarantee
- Lifelong technical support
- Guaranteed spare parts supply
- Engineers available for overseas service
Product Parameters
Name: Automatic Industrial Washer-Extractor
| Attributes |
SXT-200F |
SXT-300F |
SXT-500F |
SXT-700F |
SXT-1000F |
SXT-1500F |
| Rated Capacity (kg) |
20 |
30 |
50 |
70 |
100 |
150 |
| Drum Dimension (mm) |
Φ730×450 |
Φ900×470 |
Φ970×650 |
Φ1200×620 |
Φ1200×888 |
Φ1470×880 |
| Washing Speed (r/min) |
42 |
40 |
50 |
35 |
35 |
30 |
| Extracting Speed (r/min) |
800 |
770 |
740 |
670 |
670 |
610 |
| Rated Voltage (V) |
220/380/415 |
220/380/415 |
220/380/415 |
220/380/415 |
220/380/415 |
220/380/415 |
| Motor Power (kw) |
2.2 |
3 |
4 |
7.5 |
7.5 |
15 |

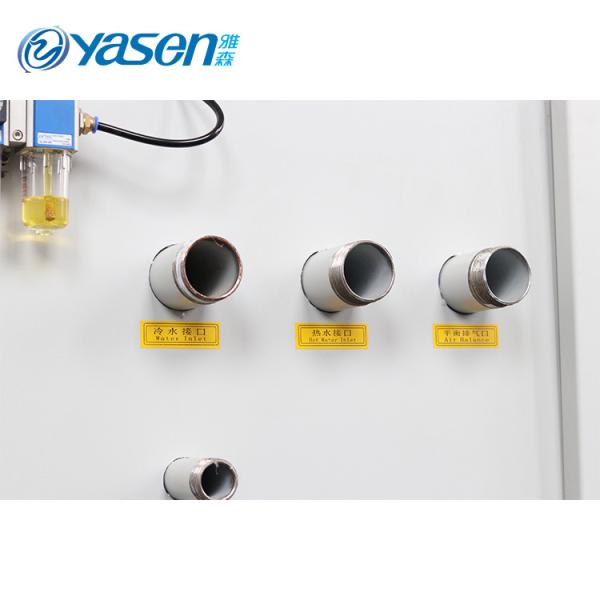

| Water Inlet (lnch) |
G1" |
G1" |
G1.5" |
G1.5" |
G1.5" |
G2" |
| Steam Inlet (lnch) |
G1/2" |
G3/4" |
G1" |
G1" |
G1" |
G1.5" |
| Electric Heating Power (kw) |
18 |
27 |
36 |
54 |
72 |
- |
| Steam Pressure (Mpa) |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
| Steam Consumption (kg/kg) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
| Drainage Dimension (mm) |
Φ60 |
Φ80 |
Φ90 |
Φ127 |
Φ127 |
Φ127x2 |
| Air Pressure (Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
| Noise dB(A) |
<78 |
<78 |
<78 |
<78 |
<78 |
<78 |
| Dimension W×D×H (mm) |
1025×1000×1400 |
1340×1380×1700 |
1570×1455×1780 |
1750×1800×1980 |
1920×2150×1990 |
2150×2420×2350 |
| Net Weight (kg) |
680 |
1500 |
2200 |
2800 |
3200 |
5500 |
