70kg Capacity Automatic Jeans Washer Extractor for Industrial Laundry Facilities
Applications
SXT-F Series Washer-extractor is suitable for hotels, restaurants, hospitals, garment factories, industrial-mining enterprises, and individual washing-dyeing operations. It is used for washing cotton, wool, chemical fiber, and other fabrics.
Product Features

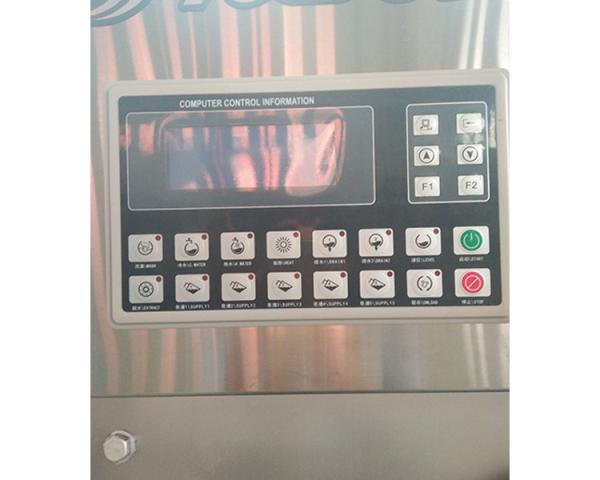

Full-Automatic Computer Control System
SXT-F washer-extractor features a professional computer control system with excellent capacity and superior functionality. It includes 30 programmable procedures and 5 standard programs, all designed with user-friendly operation in mind.
- User-controlled work liquid level, wash temperature, and wash time
- Efficiently meets washing requirements in different situations
High Strength & Long Durability
- Creative stainless steel drum design ensures prolonged machine lifespan during overload situations
- Advanced limit principle design with stainless steel outer vat (50-150 kg models)
- High-strength big shaft-pedestal and high-accuracy short shaft design reduces transverse vibration moment
- High-precision core bearings for extended lifespan and durability
- State invention patent seal technology with double water-proof design
- Imported fluorine rubber seal material with special compartment design
Industry-Leading Vibration Control
- Scientifically added overload weight at front of suspended object
- Combined gravity of suspended object and center of vibration source for perfect balance
- High-efficiency vibration-proof springs with 98% effective vibration-reducing rate
Excellent Design & Fine Production
- Frequency-conversion drives with endless speed adjustment for stable, quiet operation
- High-quality bearings for long lifespan
- Patented technology major shaft seal design resists high temperature and super acid-alkali conditions
- Stainless steel panel with high corrosion resistance (back panel galvanized)
- Patent technology safe door-lock union design ensures operator safety
- Five-compartment automatic detergent adding system with nylon injection moulding structure
- Larger diameter loading door with ergonomic design reduces labor strength
- Steam heating and hot water heating options available
After-Sales Service
- One-year warranty for the whole machine
- Lifelong technical support
- Guaranteed spare parts supply
- Engineers available for overseas machinery service
Installation & Testing
- Free technical training at factory
- Free technical guidance through network
- On-site service available under contract
Warranty
Main spare parts (excluding consumable accessories) under ONE YEAR warranty with defects from manufacturer, including free shipping.
Product Parameters
| Model |
SXT-150F |
SXT-200F |
SXT-300F |
SXT-500F |
SXT-700F |
SXT-1000F |
SXT-1500F |
| Rated Capacity (kg) |
15 |
20 |
30 |
50 |
70 |
100 |
150 |
| Drum Dimension (mm) |
Φ636×472 |
Φ730×450 |
Φ900×470 |
Φ970×650 |
Φ1200×620 |
Φ1200×840 |
Φ1470×880 |
| Washing Speed (r/min) |
42 |
42 |
40 |
40 |
35 |
35 |
30 |
| Extracting Speed (r/min) |
850 |
800 |
770 |
740 |
670 |
670 |
610 |
| Rated Voltage (V) |
3P/220V/380V |
3P/220V/380V |
3P/220V/380V |
3P/220V/380V |
3P/220V/380V |
3P/220V/380V |
3P/220V/380V |
| Motor Power (kw) |
1.5 |
2.2 |
3 |
4 |
7.5 |
7.5 |
15 |
| Water Inlet (lnch) |
G3/4" |
G1" |
G1" |
G1.5" |
G1.5" |
G1.5" |
G2" |
| Steam Inlet (lnch) |
G1/2" |
G1/2" |
G3/4" |
G1" |
G1" |
G1" |
G1.5" |
| Electric Heating Power (kw) |
9 |
18 |
27 |
36 |
54 |
72 |
- |
| Steam Pressure (Mpa) |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
0.3-0.5 |
| Steam Consumption (kg/kg) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
| Drainage Dimension (mm) |
Φ60 |
Φ60 |
Φ80 |
Φ90 |
Φ127 |
Φ127 |
Φ127x2 |
| Air Pressure (Mpa) |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
| Noise dB(A) |
<78 |
<78 |
<78 |
<78 |
<78 |
<78 |
<78 |
| Dimension W×D×H (mm) |
1150×1050×1510 |
1200×1100×1620 |
1340×1450×1750 |
1510×1600×1780 |
1750×1800×1980 |
1920×2150×1990 |
2150×2420×2350 |
| Net Weight (kg) |
450 |
550 |
1300 |
1500 |
2800 |
3200 |
5500 |
