Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
Specifications
Place of Origin :
Shanghai, China
Brand Name :
YASEN
Model Number :
SXT-200,300,500,700,1000,1500F
Certification :
CE,ISO9001:2008
Packaging Details :
Wooden packaging for Washing Machine
Supply Ability :
100 Set/Sets per Month commercial laundry equipment
Price :
$2,500.00/sets >=1 sets
Warranty :
1 Year
After-sales Service Provided :
Video technical support, Field installation, commissioning and training, Free spare parts, Online support
Capacity :
20kg,30kg,50kg,70kg,100kg,150kg
Heating Type :
Steam or Electicity Heating
Feature :
Critical cleaning/Residue Free
Material :
Stainless Steel
Cleaning Process :
Hot Water Cleaning
Cleaning Type :
Clean-In-Place (CIP)
Industry Used :
Hotel and laundry
Voltage :
220V,380V
Port :
SHANGHAI
MOQ :
1pc
Description
Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
Applications
SXT-F Series Washer-extractor is suitable for hotels, restaurants, hospitals, garment factories, industrial-mining enterprises, and individual washing-dyeing operations. It is used for washing cotton, wool, chemical fiber, and other fabrics.
Product Overview
Full-Automatic Computer Control System
SXT-F washer-extractor features professional computer control system with excellent capacity and superior functionality. It contains 30 programmable procedures and 5 standard programs, all designed with user-friendly operation.
Users can control work liquid-level, wash temperature, wash time, and efficiently satisfy washing requirements in different situations.

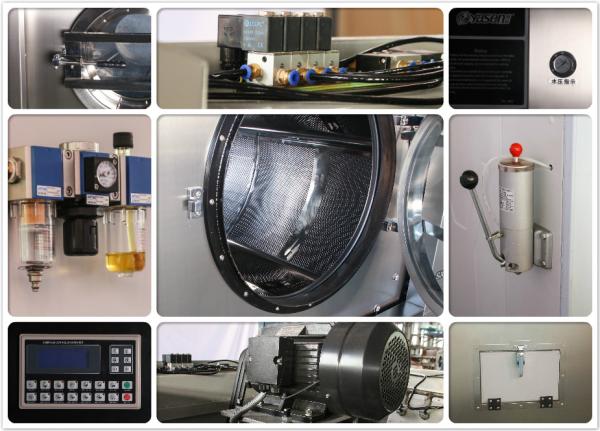

Key Features
High Strength & Long Durability
  • Creative stainless steel drum design ensures prolonged machine lifespan during overload situations
  • Advanced limit principle design with stainless steel outer vat (50-150 kg) for corrosion resistance and high stability
  • High-strength big shaft-pedestal and high-accuracy short shaft design effectively reduces transverse vibration moment
  • High-precision core bearings prolong use lifespan and durability
  • State invention patent seal technology with double water-proof design, imported fluorine rubber seal material, and special compartment design protects bearings and improves lifespan
Industry-Leading Low Vibration
  • Scientifically added overload weight at front of suspended object combines gravity and vibration source center for perfect balance
  • High-efficiency vibrationproof springs with effective vibration-reducing rate up to 98%
Excellent Design & Fine Production
  • Frequency-conversion drives with endless speed adjustment for stable, quiet operation
  • High-quality bearings for long lifespan
  • Imported seal material with patent technology design effectively resists high temperature and super acid-alkali conditions
  • Stainless steel panel with high corrosion proof (back panel is galvanized)
  • Patent technology safe door-lock union device ensures operational safety
  • Five compartment automatic detergent adding system with nylon injection moulding structure for high corrosion resistance
  • Larger diameter loading door with ergonomic design for convenient loading/unloading and reduced labor intensity
  • Steam heating and hot water heating options available
After-Sales Service
  • One-year warranty for the whole machine
  • Lifelong technical support
  • Guaranteed spare parts supply
  • Engineers available for overseas machinery service
Installation & Testing
  • Free technical training at factory
  • Free technical guidance through network
  • On-site service available under contract
Warranty
Main spare parts (except consumable accessories) under ONE YEAR warranty with defects from manufacturer by free shipping.
Product Parameters
Model SXT-150F SXT-200F SXT-300F SXT-500F SXT-700F SXT-1000F SXT-1500F
Rated Capacity (kg) 15 20 30 50 70 100 150
Drum Dimension (mm) Φ636×472 Φ730×450 Φ900×470 Φ970×650 Φ1200×620 Φ1200×840 Φ1470×880
Washing Speed (r/min) 42 42 40 40 35 35 30
Extracting Speed (r/min) 850 800 770 740 670 670 610
Rated Voltage (V) 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V 3P/220V/380V
Motor Power (kw) 1.5 2.2 3 4 7.5 7.5 15
Water Inlet (lnch) G3/4" G1" G1" G1.5" G1.5" G1.5" G2"
Steam Inlet (lnch) G1/2" G1/2" G3/4" G1" G1" G1" G1.5"
Electric Heating Power (kw) 9 18 27 36 54 72 -
Steam Pressure (Mpa) 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5 0.3-0.5
Steam Consumption (kg/kg) 0.5 0.5 0.5 0.5 0.5 0.5 0.5
Drainage Dimension (mm) Φ60 Φ60 Φ80 Φ90 Φ127 Φ127 Φ127x2
Air Pressure (Mpa) 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6 0.4-0.6
Noise dB(A) <78 <78 <78 <78 <78 <78 <78
Dimension W×D×H (mm) 1150×1050×1510 1200×1100×1620 1340×1450×1750 1510×1600×1780 1750×1800×1980 1920×2150×1990 2150×2420×2350
Net Weight (kg) 450 550 1300 1500 2800 3200 5500
Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality Stainless Steel Commercial Laundry Equipment With Clean-In-Place CIP Functionality
