Underground Cable Fault Locator with 0.2m Accuracy
Underground Cable Fault Locator with 0.2m Accuracy
Underground Cable Fault Locator with 0.2m Accuracy
Underground Cable Fault Locator with 0.2m Accuracy
Specifications
Brand Name :
XZH TEST
Model Number :
XHDD503C
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1 unit
Payment Terms :
T/T
Supply Ability :
2000 units/year
Delivery Time :
5-8 work days
Packaging Details :
Wooden case
Bandwidth :
200Hz~600Hz.
Maximum signal gain :
>=112dB.
Fixed-point accuracy :
＜0.2m.
Description
XHDD503C Underground Cable Fault Pinpoint Locator
Introduction

The XHDD503C is a professional power cable fault locator adopting acoustic and magnetic synchronization technology. It detects electronic flashover from an impact discharge generator via a specialized probe, achieving precise positioning through auditory and visual analysis within rough measurement ranges while collecting acoustic-magnetic signal time differences.

Features

  • 5-inch high-brightness touch LCD with sunlight visibility

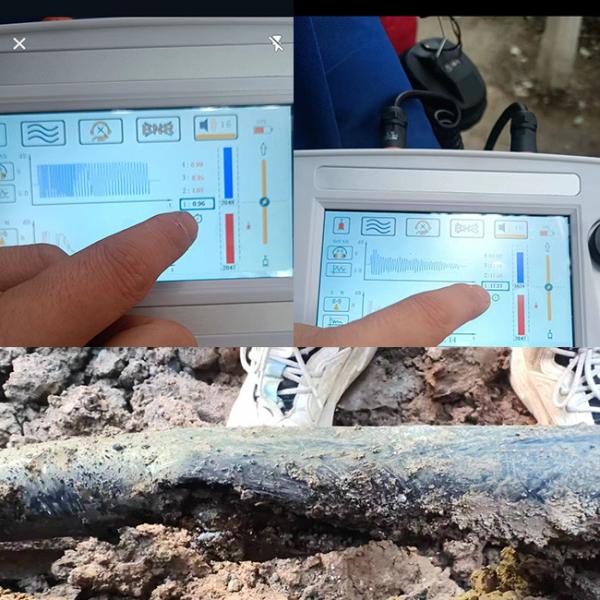

  • Acoustic-magnetic synchronous positioning technology with automatic time difference calculation and manual adjustment capability
  • Advanced background noise reduction with multiple filtering options and path deviation indication
  • Multi-layer physical isolation signal sensors with IP65 waterproof rating
  • Built-in large-capacity lithium battery with extended standby time and fast charging capability
  • Compact, lightweight design with intuitive operation and simple user interface
Technical Specifications

Parameter Specification
Filter Parameters All-pass: 100Hz~1600Hz, Low pass: 100Hz~300Hz, Qualcomm: 160Hz~1600Hz, Bandpass: 200Hz~600Hz
Output Impedance 350Ω
Acoustomagnetic Positioning Accuracy < 0.2m
Path Identification Accuracy < 0.5m
Standby Time > 8 hours
Operating Temperature -25~65℃
Relative Humidity ≤90%

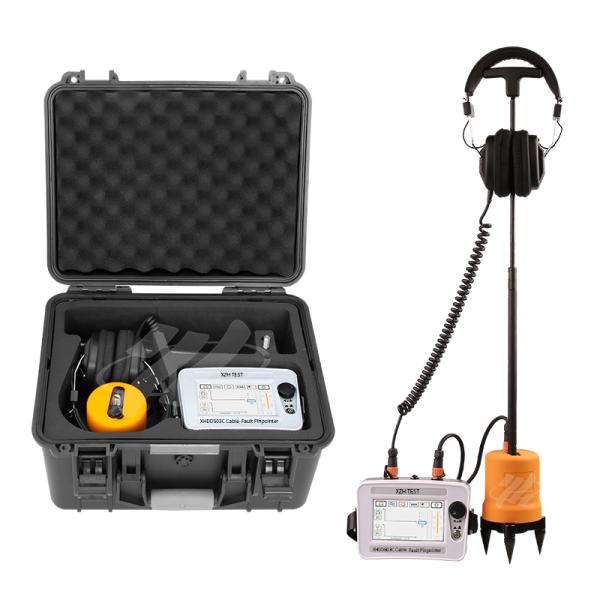

Packing List

Underground Cable Fault Locator with 0.2m Accuracy
Product Details

Underground Cable Fault Locator with 0.2m Accuracy
