Underground Precise Cable Fault Locator With Acoustic Magnetic Detection
Underground Precise Cable Fault Locator With Acoustic Magnetic Detection
Underground Precise Cable Fault Locator With Acoustic Magnetic Detection
Underground Precise Cable Fault Locator With Acoustic Magnetic Detection
Underground Precise Cable Fault Locator With Acoustic Magnetic Detection
Underground Precise Cable Fault Locator With Acoustic Magnetic Detection
Underground Precise Cable Fault Locator With Acoustic Magnetic Detection
Underground Precise Cable Fault Locator With Acoustic Magnetic Detection
Underground Precise Cable Fault Locator With Acoustic Magnetic Detection
Underground Precise Cable Fault Locator With Acoustic Magnetic Detection
Underground Precise Cable Fault Locator With Acoustic Magnetic Detection
Underground Precise Cable Fault Locator With Acoustic Magnetic Detection
Specifications
Certification :
CE, ISO
Brand Name :
XZH TEST
Model Number :
XHDD503
Place of Origin :
XHDD503
MOQ :
1 unit
Payment Terms :
T/T
Delivery Time :
5-8 days
Packaging Details :
wooden case
Model NO. :
XHDD503
Power :
Electricity
Customized :
Customized
Color :
While+Silver
Nw :
6.5kg
Transport Package :
Exported Wood Case with Foam Inside
Trademark :
XZH TEST
Origin :
China
HS Code :
9031809090
Supply Ability :
2000piecs/Year
Customization :
Available
After-sales Service :
Warranty Certificate
Warranty :
1 Year
Description
Product Description

XHDD503 cable faults pin-pointer is used for pin-Pointing kinds of cable faults of underground Power cable by using acoustic and magnetic method. by means of Electronic flashover generates by the impulse generator. Magnetic sound signal of the electronic flashover wave is picked up and amplified through the probe, and judged by auditory and visual to accuracy find out the underground cable faults.

Detailed Photos

Underground Precise Cable Fault Locator With Acoustic Magnetic Detection

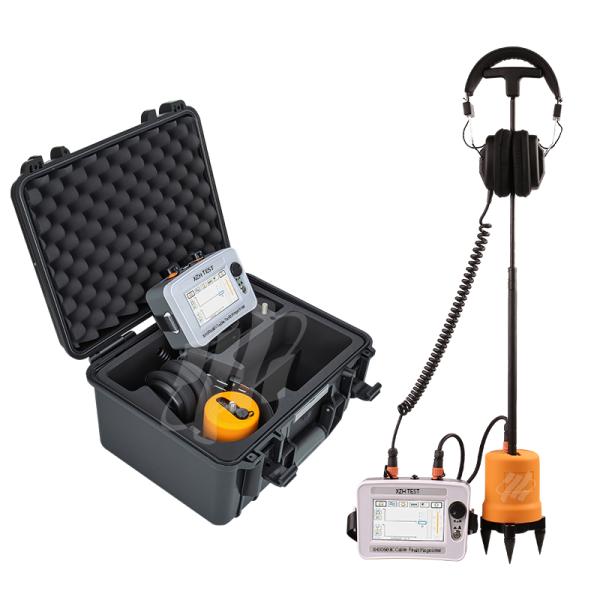

The XHDD503 cable fault locator is very small and light, it is packed in a protective PVC case, easy to carry after the user finished detection.

1. Pointer meter: indicates the magnetic field strength during flashover discharge at the fault point;
2. Volume adjustment: Adjust at fixed points and paths so that our ears can hear more appropriate sound signals;
3. Working mode: Select the working mode (shutdown, fixed point, path);
4. Frequency adjustment: Adjust the receiving frequency during the path detection process so that our ears can hear path signals that are easier to identify. Adjusting at fixed points can effectively avoid radio signals;
5. Level adjustment: adjust the baseline of magnetic field strength so that the meter head can swing effectively;
Underground Precise Cable Fault Locator With Acoustic Magnetic Detection


Product Parameters
Receiving mode Magnetic sound synchronization
enlargement factor

500,000 times
Working power Standard 3.7V 3200mAh battery 4 cells
quiescent current <10mA
output impedance 350Ω
Positioning accuracy ±0.2m
Power dissipation Quiescent current is less than 10mA, The working current is not more than 10mA
Working conditions: Ambient temperature: -25~65ºC; Relative humidity: ≤90%.

Packing list



1 Cable fault pinpointer 1
2 Headphone 1
3 Probe 1
4 Audio line 1 SET
5 Charger 1

Underground Precise Cable Fault Locator With Acoustic Magnetic DetectionUnderground Precise Cable Fault Locator With Acoustic Magnetic Detection
