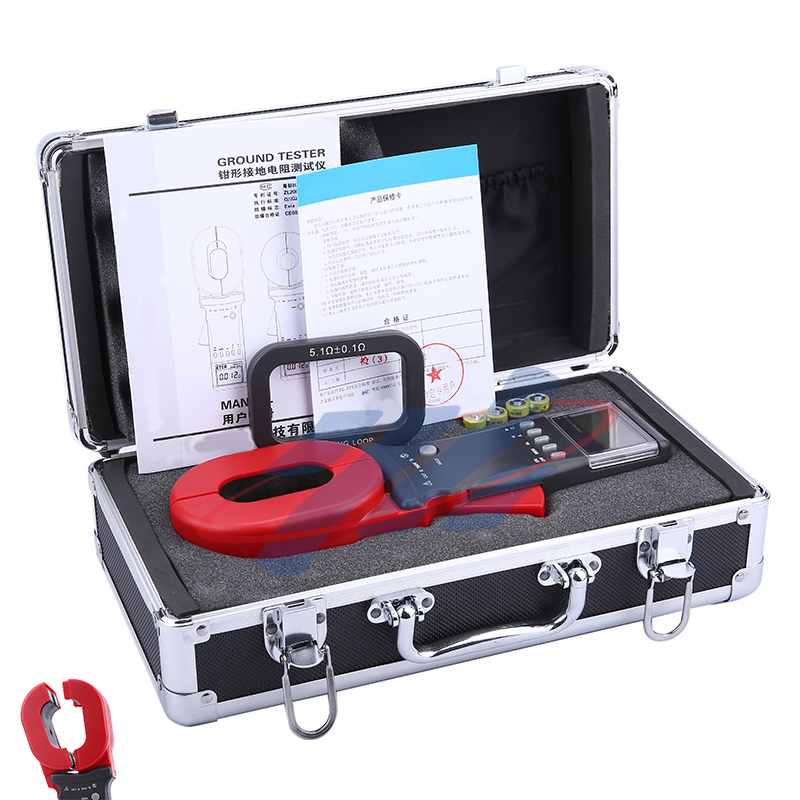

Single-Jaw Portable Ground Resistance Tester
Single-Jaw Portable Ground Resistance Tester
Specifications
Brand Name :
XZH TEST
Model Number :
XHDQ703
Certification :
ISO CE
Place of Origin :
Xi'an Shaanxi China
MOQ :
1set
Supply Ability :
3000unit/year
Delivery Time :
5-8 work days
Packaging Details :
wooden packaging
Power Supply :
6V DC (4 x AA alkaline batteries)
Description

Product Overview


The XHDQ703 Single-jaw Earth Resistance Tester is widely applied to measure earth resistance and loop resistance for electrical equipment in power, meteorology, oilfield, construction and industrial sectors. When measuring earthed systems with loops, it requires no disconnection of earth down-leads or auxiliary electrodes. This tester is capable of detecting earth faults that cannot be measured by traditional methods and is suitable for scenarios where conventional measurement approaches are inapplicable. The XHDQ series clamp-on earth resistance testers measure the combined value of earth electrode resistance and earth lead resistance.

Performance Features


★Functions: Earth resistance test, loop resistance test;

★Start-up time: Self-test completed in only 0.5 seconds, finished instantly upon power-on;

★Automatic interference signal identification and automatic gear shifting;

★Acousto-optic alarm, equipped with RS232 interface;

Single-Jaw Portable Ground Resistance Tester

Technical Specifications
☆ Power Supply: 6V DC (4 x AA alkaline batteries)
☆ Resistance Range: 0.01 – 1200 Ω; Accuracy: ±1% ±0.01 Ω; Resolution: 0.001 Ω
☆ LCD Display: 4-digit digital LCD
☆ Data Storage: 99 sets
☆ Operating Temperature & Humidity: -20°C – 55°C; 20% RH – 90% RH
☆ Jaw Dimensions: 65 mm × 32 mm
☆ Jaw Opening: 32 mm
