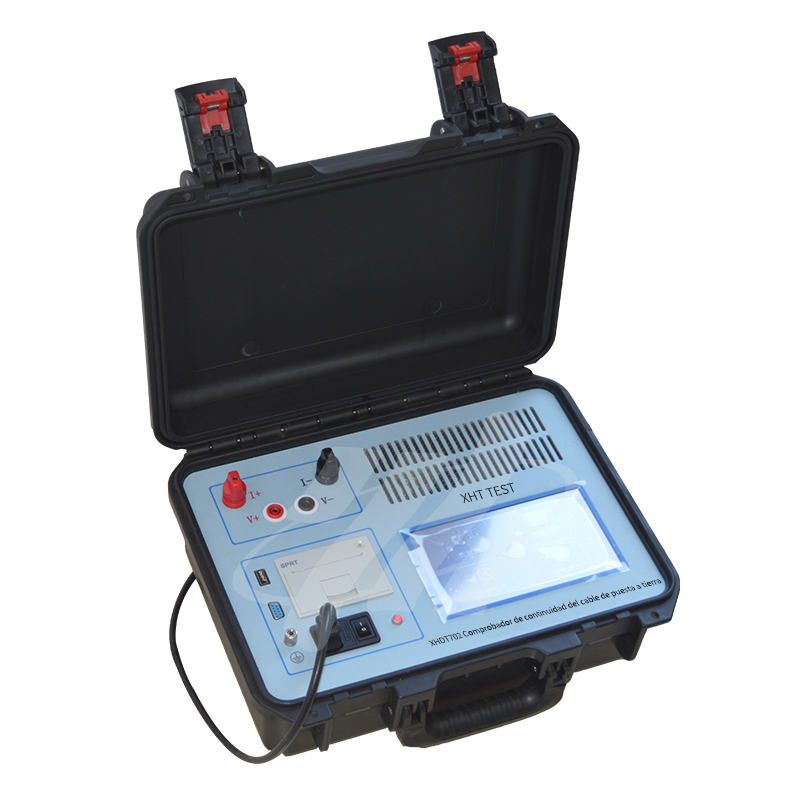

Ground Tester with 10A Auto-switching & LCD Display
Ground Tester with 10A Auto-switching & LCD Display
Specifications
Brand Name :
XZH TEST
Model Number :
XHDT702
Certification :
ISO CE
Place of Origin :
Xi'an Shaanxi China
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
3000unit/year
Delivery Time :
5-8 work days
Packaging Details :
wooden packaging
Output Current :
10A, 1A Auto-switching
Description

Product Overview

XHDT702 Grounding Downlead Continuity Tester is applicable for measuring the continuity resistance between grounding downleads of substation power equipment and ground grid (or adjacent equipment).

Performance Features

  1. Controlled by a high-speed single-chip microcomputer, with high automation and easy operation.
  2. Adopts power supply technology, with multiple current gears and wide measurement range.
  3. Intelligent power management technology is adopted.
  4. 320X240 dot-matrix 65K true-color LCD with ultra-small pixels, clear display in strong light.
  5. Built-in power-off storage, capable of storing 1000 groups of test data for random query.
  6. Built-in lithium battery and charger for convenient operation.

    Ground Tester with 10A Auto-switching & LCD Display

    Technical Specifications

    ★ Output Current: 10A, 1A Auto-switching

    ★ Measurement Range: 10A: 1mΩ～2Ω, 1A: 2Ω～20Ω

    ★ Resolution: 0.1μΩ

    ★ Accuracy: ±(0.2% of reading + 2 digits)

    ★ Power Supply: AC 220V±10% 50Hz±1Hz

    ★ Ambient Temperature: -10～50℃

    ★ Ambient Humidity: ≤90%RH
