Live Cable Fault Locator and Direct Finder for Accurate Cable Identification
Live Cable Fault Locator and Direct Finder for Accurate Cable Identification
Specifications
Brand Name :
XZH TEST
Model Number :
XHSB505DS
Certification :
CE
Place of Origin :
Xi'an
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
3000unit/year
Delivery Time :
5-8 work days
Packaging Details :
wooden packaging
Description

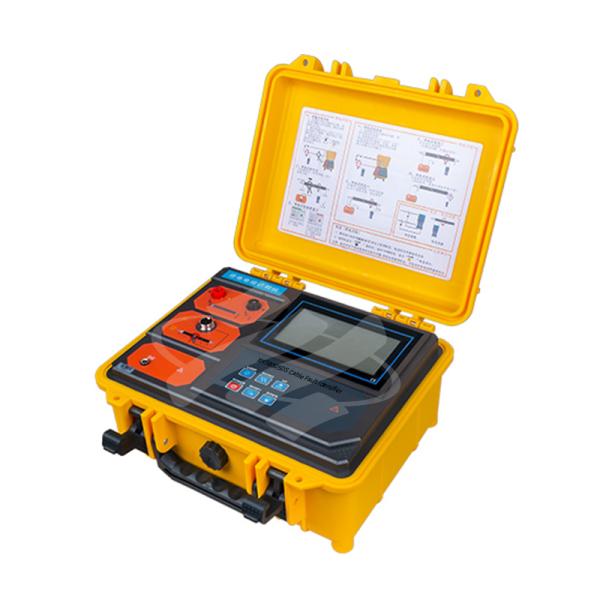

XHSB505DS
A specialized tool designed for cable technicians to solve technical challenges in cable identification and direct fault finding.
Cable identification begins with operations at both ends of the cable. It is essential to ensure that the dual numbering at both ends of the cable is accurate. This instrument is designed using PSK technology combined with a precise algorithm.
Transmission frequency For live identification: 625Hz, 1562Hz, 2500Hz, 10000Hz; For power-off identification: 1562Hz, 2500Hz. Use the up and down arrow keys to adjust the transmission frequency.
transmission line length

3m
Display mode Large LCD screen displays the remaining battery voltage in real time, with backlight.

Live Cable Fault Locator and Direct Finder for Accurate Cable Identification

Identifying Power-Out Cables:

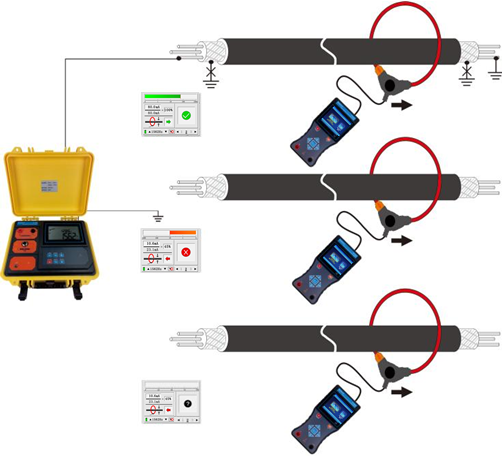

Wrap the Φ200mm flexible current clamp around each cable in the direction of the arrows shown in the diagram.

The wiring diagram below is suitable for on-site identification of target cables that are power-out cables. Please ensure that the arrows on the flexible current clamps point to the far end of the cable (the end where the cable core is grounded), i.e., pay attention to the direction of the positive input of the pulse-coded current signal.

When performing live or de-energized identification, do not bring the coil interface of the flexible current clamp close to the cable for measurement to avoid errors.

Live Cable Fault Locator and Direct Finder for Accurate Cable Identification

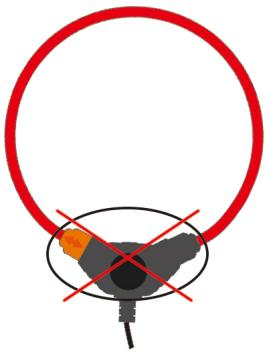

Note: Do not place the cable near the coil connector during measurement to avoid errors.
