Energized Charged Direct Finder Cable Fault Locator for Accurate Detection
Energized Charged Direct Finder Cable Fault Locator for Accurate Detection
Specifications
Brand Name :
XZH TEST
Model Number :
XHSB505B
Certification :
ISO
Place of Origin :
Xi'an
MOQ :
1set
Payment Terms :
T/T
Supply Ability :
3000unit/year
Delivery Time :
5-8 work days
Packaging Details :
wooden packaging
Description
XHSB505B
The Energized Cable Identifier is a charged, direct finder solution designed for efficient cable identification in industrial applications.

Instrument Layout and Description

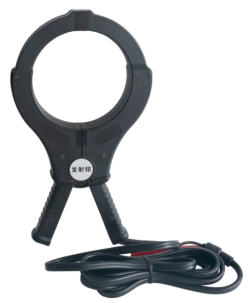

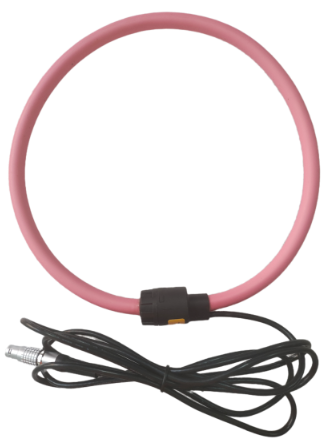

This instrument consists of a transmitter, transmitter clamp, receiver clamp, and handheld receiver.

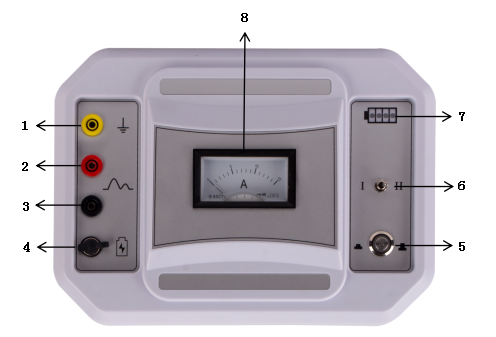

Transmitter Panel:

Energized Charged Direct Finder Cable Fault Locator for Accurate Detection

1. Grounding Terminal: Safety grounding terminal for the equipment;

2. Positive Output Terminal: Transmitter output positive, connect to the red output wire;

3. Negative Output Terminal: Transmitter output negative, connect to the black output wire;

4. Charging: DC 12V charging port, connect a 12V charger to start charging;

5. Power Switch: Turns the power on/off;

6. Position Switch: "Ⅰ" indicates a non-energized cable; "Ⅱ" indicates an energized cable;

7. Battery Level Indicator: Indicates the battery level in real time when the built-in battery is working;

8. Ammeter: Displays the instantaneous average value of the output current.

Energized Charged Direct Finder Cable Fault Locator for Accurate DetectionEnergized Charged Direct Finder Cable Fault Locator for Accurate DetectionEnergized Charged Direct Finder Cable Fault Locator for Accurate Detection

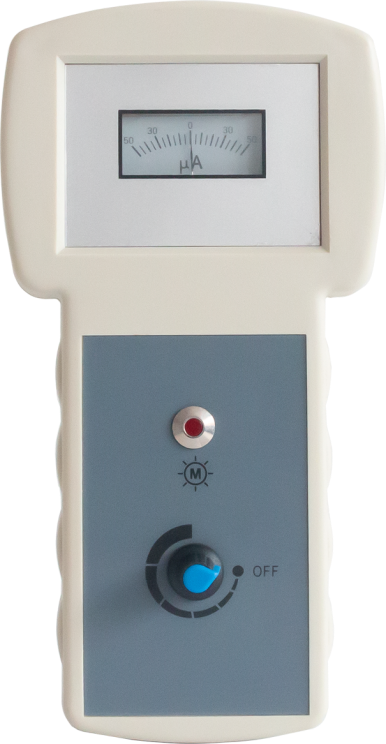

1. The handheld receiver has an adjustment knob to adjust the received signal strength (clockwise rotation increases signal strength; counterclockwise rotation decreases signal strength; it also has an on/off function).

2. There is a BNC connector on the bottom of the handheld receiver for connecting a receiver clamp to receive signals.

Energized Charged Direct Finder Cable Fault Locator for Accurate Detection
