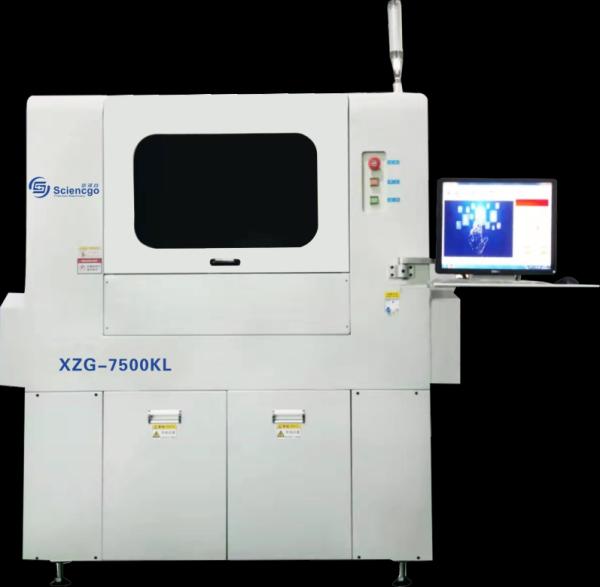

Touch Switch Insertion Machine XZG-7500KL
Touch Switch Insertion Machine XZG-7500KL
Touch Switch Insertion Machine XZG-7500KL
Touch Switch Insertion Machine XZG-7500KL
Touch Switch Insertion Machine XZG-7500KL
Touch Switch Insertion Machine XZG-7500KL
Touch Switch Insertion Machine XZG-7500KL
Touch Switch Insertion Machine XZG-7500KL
Touch Switch Insertion Machine XZG-7500KL
Touch Switch Insertion Machine XZG-7500KL
Touch Switch Insertion Machine XZG-7500KL
Touch Switch Insertion Machine XZG-7500KL
Specifications
Brand Name :
Sciencgo
Model Number :
XZG-7500KL
Place of Origin :
China Dongguan
MOQ :
1
Payment Terms :
D/P,L/C,D/A,T/T
Supply Ability :
Have spot goods available
Delivery Time :
7~21days
Description
Product introduction

The 7500 series is a product of the Alien 7000 series.

Transport the 6 * 6-5H tactile switches to the plug-in head through the vibrating plate sorting, and insert them quickly, flexibly, and accurately into the circuit board, and fix them with bent feet.

Functional characteristics

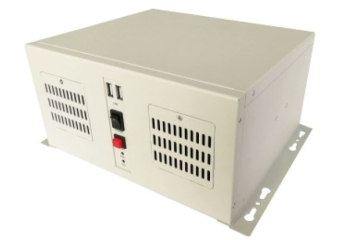

  • Professional industrial control computert software (independently developed)+Leisai motion control card, stable and efficient.
  • Built in plastic surgery mechanism, realizing straight foot, bent foot, frog foot, one machine plug does not affect each other.

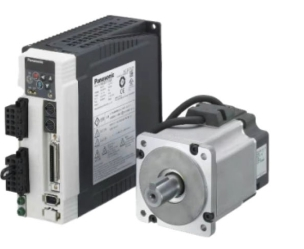

  • The X/Y axis is driven by imported SongXia AC servo motor and imported TBI grinding screw to ensure an error of less than 0.001mm.
  • The base adopts TBI ball spline with high precision and long service life.
  • A simple and easy to understand operation page with excellent human-machine dialogue function, which quickly shortens the production line transfer time.
  • Mark visual positioning calibration has higher accuracy and smaller errors compared to traditional hole positioning.
Technical Specifications
Plugin Speed 6000~8000/hour Machine noise 65db
Insertion direction can be set to 0~180° with increment of 1° Correction method CCD visual positioning
Substrate size 500*50mm / 280*350mm Driving system AC Panasionic servo, DC stepper
Entering board height 900±40 Data input USB interface import, manual input
Rail width 500~280 (Adjustable) Control model C language system development
Component type 6*6*5H/6*6*6H/6*6*7H Customizable Entry method L to R, R to L (optional)
Insert bend Internal bending Programming method Online manual programming
External dimensions L1700*W1150*H17000mm Feeding Vibration disk
Whole machine weight 800KG Component packing Bulk
Power supply power AC220V,50/60Hz,1KW PCB board requirements Board edge≥5mm,aperture1.2mm
Use air pressure 0.6Mpa DIsplay System 17 inch color LCD display
Environment condition 10~30° Communication interface RS-232°
Gas flow 0.1m3/min MODE Fully automatic,semi-automatic, manual
