High-Precision Automatic Tactile Switch Insertion Machine | 0.001mm Accuracy
High-Precision Automatic Tactile Switch Insertion Machine | 0.001mm Accuracy
High-Precision Automatic Tactile Switch Insertion Machine | 0.001mm Accuracy
High-Precision Automatic Tactile Switch Insertion Machine | 0.001mm Accuracy
High-Precision Automatic Tactile Switch Insertion Machine | 0.001mm Accuracy
High-Precision Automatic Tactile Switch Insertion Machine | 0.001mm Accuracy
High-Precision Automatic Tactile Switch Insertion Machine | 0.001mm Accuracy
High-Precision Automatic Tactile Switch Insertion Machine | 0.001mm Accuracy
High-Precision Automatic Tactile Switch Insertion Machine | 0.001mm Accuracy
High-Precision Automatic Tactile Switch Insertion Machine | 0.001mm Accuracy
High-Precision Automatic Tactile Switch Insertion Machine | 0.001mm Accuracy
High-Precision Automatic Tactile Switch Insertion Machine | 0.001mm Accuracy
Specifications
Place of Origin :
China Dongguan province
Brand Name :
Sciencgo
Price :
Quotation based on configuration
Supply Ability :
Have spot goods available
Delivery Time :
7~21days
MOQ :
1
Model Number :
XZG-7500KL
Payment Terms :
L/C,D/A,D/P,T/T
Description
Product Introduction

Product Introduction: The Alien 7500 Series, a flagship evolution of the Alien 7000 line, is engineered for ultra-high-speed assembly of 6*6-5H tactile switches. This system automates the entire workflow—from precision vibrating plate sorting to rapid insertion and secure bent-foot clinching—ensuring seamless PCBA integration.

Key Technical Features:

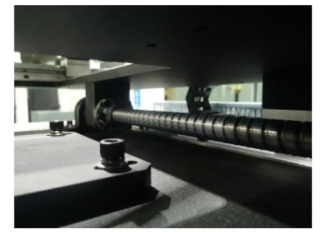

  • Best-Grade Precision (Parameters): Driven by imported Sanxie AC servo motors and TBI grinding screws, the X/Y axis achieves an industry-leading error margin of less than 0.001mm.
  • Versatile Foot Forming (Function): Featuring an integrated shaping mechanism, it effortlessly handles straight, bent, and frog-foot configurations within a single setup, eliminating cross-interference.
  • Advanced Hardware (Material/Hardware): The base utilizes high-precision TBI ball splines, significantly extending service life and maintaining mechanical rigidity under heavy production cycles.
  • Visual Intelligence (Process): Equipped with Mark Visual Positioning Calibration, the machine outperforms traditional hole-positioning methods by minimizing cumulative errors on complex PCBs.
Technical Specifications
Plugin Speed 6000~8000/hour Machine noise 65db
Insertion direction can be set to 0~180° with increment of 1° Correction method CCD visual positioning
Substrate size 500*50mm / 280*350mm Driving system AC Panasionic servo, DC stepper
Entering board height 900±40 Data input USB interface import, manual input
Rail width 500~280 (Adjustable) Control model C language system development
Component type 6*6*5H/6*6*6H/6*6*7H Customizable Entry method L to R, R to L (optional)
Insert bend Internal bending Programming method Online manual programming
External dimensions L1700*W1150*H17000mm Feeding Vibration disk
Whole machine weight 800KG Component packing Bulk
Power supply power AC220V,50/60Hz,1KW PCB board requirements Board edge≥5mm,aperture1.2mm
Use air pressure 0.6Mpa DIsplay System 17 inch color LCD display
Environment condition 10~30° Communication interface RS-232°
Gas flow 0.1m3/min MODE Fully automatic,semi-automatic, manual
