Industrial LVDS Display Module 1024x600 LCD Module Panel 8 Inch For HMI And Embedded Devices
Industrial LVDS Display Module 1024x600 LCD Module Panel 8 Inch For HMI And Embedded Devices
Specifications
Outline :
118.5×84.7×5.2 mm
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Price :
$16.75-21.5 Piece
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Viewing Area :
116.2mm×87.1mm
Model Number :
YVO0800TVL-H01
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Operating_Temperature :
-20°C to 70°C
Brand Name :
XXT
Place of Origin :
GuangDong, China
Response Time :
6ms
Display Color :
Monochrome Black and White
Payment Terms :
T/T
Delivery Time :
14-60 days
Supply Ability :
Up to 1,000 pcs/day
Color Gamut :
72 % of NTSC(Typ.)
Drive System :
a-Si TFT active matrix
MOQ :
100 pcs
Name :
LVDS Display Module
Description
8" LVDS TFT LCD Display 1024×600 | Industrial LCD Module for HMI & Embedded Devices
Product Overview

The YVO0800TVL-H01 is an 8-inch TFT LCD display module designed for industrial and embedded display applications requiring stable image performance and reliable long-term operation. Featuring a 1024*600 WSVGA resolution, digital LVDS interface, and 450 nits brightness, this display module delivers clear visuals for control systems, automation equipment, medical terminals, and intelligent device interfaces.

With support for customization including touch panel integration, interface optimization, brightness adjustment, FPC modification, and cover glass design, this display module is suitable for a wide range of OEM and industrial projects.

Product Features
  • 8 Inch TFT LCD Display Module
  • 1024*600 WSVGA Resolution
  • Digital LVDS Interface
  • Normally White Display Mode
  • 450 cd/m² Brightness
  • 700:1 Contrast Ratio
  • Stable Industrial-Grade Performance
  • Wide Operating Temperature Support
  • Custom Touch Panel & Interface Solutions Available
Key Advantages

High Definition Display Performance: The 1024*600 resolution provides sharp image rendering and clear text visibility, suitable for industrial user interfaces and embedded control systems.

Industrial LVDS Interface: Equipped with a digital LVDS interface for stable signal transmission and compatibility with industrial controller boards and embedded systems.

Reliable Brightness and Contrast: 450 nits brightness combined with a 700:1 contrast ratio ensures excellent readability in indoor industrial environments.

Wide Temperature Operation: Designed for demanding applications with an operating temperature range from -20°C to +70°C.

Flexible Customization Support: Available customization options include:

  • Capacitive touch panel integration
  • Brightness adjustment
  • Interface conversion
  • FPC cable modification
  • Cover lens customization
  • Mechanical structure optimization
Technical Specifications
ItemSpecification
Model NumberYVO0800TVL-H01
Display Size8 Inch
Resolution1024 * 600
Display TypeTFT LCD
InterfaceDigital LVDS
Display ModeNormally White
Brightness450 cd/m²
Contrast Ratio700:1
Viewing Direction6 O'Clock
Module Dimensions192.80 * 116.90 * 6.40 mm
Active Area176.64 * 99.36 mm
Operating Temperature-20°C to +70°C
Storage Temperature-30°C to +80°C
CertificationCE, RoHS
Touch FunctionOptional
CustomizationSupported
Typical Applications
  • Industrial Automation Equipment
  • Embedded Control Systems
  • Medical Equipment Displays
  • Smart Terminal Devices
  • Testing & Measurement Equipment

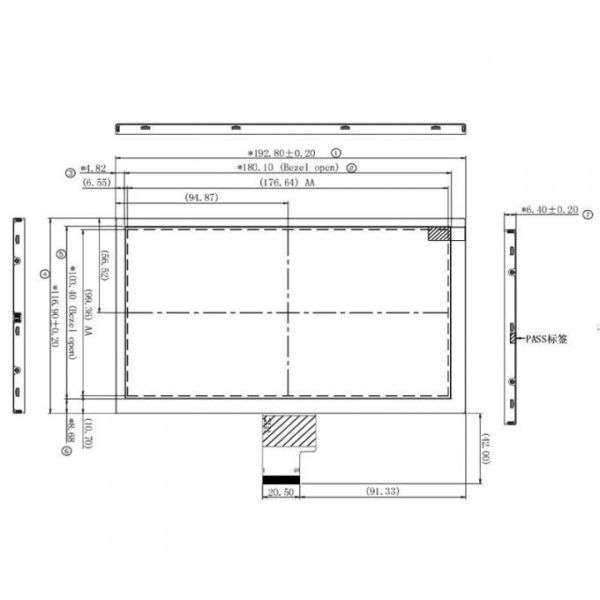

Mechanical Dimensions
  • Module Size: 192.80 * 116.90 * 6.40 mm
  • Active Display Area: 176.64 * 99.36 mm

Compact structural design suitable for embedded integration projects.

Customization Services

We provide flexible display customization services for industrial and commercial projects:

  • Touch screen integration
  • Optical bonding solutions
  • High brightness enhancement
  • Interface customization
  • FPC cable design
  • Cover glass processing
  • Driver board support
  • Housing structure matching

OEM and ODM projects are supported.

Quality Control

Every display module undergoes strict inspection and functional testing before shipment to ensure stable quality and reliable performance.

Quality control includes:

  • Display performance testing
  • Interface signal verification
  • Brightness and color inspection
  • Aging test procedures
  • Packaging protection inspection
Supply & Service Advantages
  • Stable Supply Capability
  • Professional Technical Support
  • Fast Sample Service
  • Global Shipping Support
Frequently Asked Questions

Do you provide samples?
Yes, sample orders are available for evaluation and testing.

What is the standard lead time?
Typical lead time is approximately 7 working days after order confirmation.

What is the minimum order quantity?
Minimum order quantity starts from 1 piece.

Can you support custom projects?
Yes, we support customized display solutions based on project requirements.

What applications is this display suitable for?
Suitable for industrial equipment, embedded systems, medical devices, smart terminals, and automation control systems.

Why Choose Us
  • Industrial display manufacturing experience
  • Strict quality management process
  • Flexible OEM/ODM support
  • Competitive pricing solutions
  • Stable long-term supply capability
  • Fast technical response and after-sales support
