13.3 E Paper Display 3 Color Electronic Paper Screens 960x680 For Retail Signage
13.3 E Paper Display 3 Color Electronic Paper Screens 960x680 For Retail Signage
Specifications
Color Gamut :
72 % of NTSC(Typ.)
Response Time :
6ms
Viewing Area :
116.2mm×87.1mm
Model Number :
YE133A01
Lumens Degrees :
1000cd/m²
Storage Temperature :
-30℃~80℃
View Direction :
free/all
Display Mode :
Normally White, Transmissive
Display Color :
Monochrome Black and White
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Delivery Time :
14-30 days
Controller Ic :
SSD1316
Operating_Temperature :
-20°C to 70°C
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Brand Name :
XXT
Place of Origin :
Guangdong, China
MOQ :
300pcs
Outline :
118.5×84.7×5.2 mm
Drive System :
a-Si TFT active matrix
Price :
99.89-107.82/pc
Supply Ability :
300k/month
Packaging Details :
35 pcs/box
Payment Terms :
T/T
Signal Interface :
LVDS
Description
13.3" 3-Color E Ink Display 960×680 | Ultra Low Power E-Paper Display for Retail Signage
960×680 Resolution Black / White / Red Reflective Display for ESL, Industrial Control & Smart Signage
Product Overview

The YE133A01 is a 13.3-inch large-format reflective e-paper display module designed for commercial and industrial applications requiring low power consumption, high readability, and multi-level information presentation.

Featuring a 960×680 resolution and 3-color display capability (Black / White / Red), this module is ideal for electronic shelf labels, logistics management systems, industrial monitoring equipment, smart signage, warehouse terminals, and retail information displays.

The display uses reflective electrophoretic technology with bi-stable image retention, meaning power is only consumed during content updates. The anti-glare surface and ultra-wide viewing angle provide excellent readability under ambient light and direct sunlight without requiring a backlight.

Key Features
  • 13.3-inch large-format reflective e-paper display
  • 960×680 resolution with 88 DPI pixel density
  • Black / White / Red 3-color display capability
  • Ultra-low power consumption with deep sleep ≤3μA
  • Bi-stable image retention without continuous power
  • SPI communication interface with 3-wire / 4-wire modes
  • I2C temperature sensor interface support
  • Hard-coating anti-glare surface treatment
  • Wide viewing angle with paper-like readability
  • Integrated controller with embedded display RAM
  • Slim 1.15mm module thickness
  • Suitable for battery-powered and embedded systems
  • RoHS compliant for international environmental standards
Product Specifications
Item Specification
Model Number YE133A01
Display Size 13.3 Inch
Display Type Reflective E-Paper Display Module
Display Colors Black / White / Red
Resolution 960 × 680
Pixel Density 88 DPI
Pixel Pitch 0.287 × 0.287 mm
Active Area 275.52 × 195.16 mm
Outline Dimension 286.32 × 212.16 × 1.15 mm
Interface 3-Wire / 4-Wire SPI + I2C
Driver Controller SSD1677 Compatible Controller
Connector Type 24-Pin 0.5mm ZIF Socket
Refresh Method Full Refresh
Operating Temperature 0℃ ~ 35℃
Storage Temperature 0℃ ~ 35℃
Update Power Consumption ≤250mAs
Deep Sleep Current ≤3μA
Power Supply 2.5V ~ 3.7V
Surface Treatment Hard-Coat Anti-Glare
Weight 72g ±0.2g
Product Advantages
Large-Format 3-Color Display

The YE133A01 combines a large 13.3-inch active area with high-resolution reflective display technology, allowing more information to be displayed clearly in a single screen.

The 3-color display structure supports:

  • Red for alerts, promotions, and priority information
  • Black for detailed text, barcodes, and operational data
  • White for clean background presentation

This improves information classification and readability in retail, industrial, and logistics environments.

Ultra-Low Power Consumption

Using bi-stable display technology, the screen retains the displayed image without continuous power input.

Power performance:

Mode Consumption
Screen Update ≤250mAs
Deep Sleep ≤3μA

This allows long battery operating life for applications requiring periodic updates while minimizing maintenance frequency.

Excellent Readability Under Ambient Light

The reflective display structure eliminates the need for backlighting and provides a paper-like visual experience.

Advantages include:

  • Clear visibility under strong lighting
  • Reduced glare with anti-glare coating
  • Wide viewing angle
  • Low eye fatigue
  • Stable readability in indoor and outdoor environments

The module performs well in retail stores, warehouses, smart kiosks, and industrial facilities.

Integrated Controller for Simplified Development

The display integrates a high-performance controller with:

  • Embedded SRAM
  • Timing control
  • Voltage regulation
  • Oscillator circuits
  • Waveform memory
  • Temperature compensation support

This reduces external component requirements and simplifies hardware development for embedded systems.

Slim and Lightweight Design

With only 1.15mm thickness and lightweight construction, the module can be integrated into compact large-format devices while maintaining a clean industrial appearance.

Suitable for:

  • Smart retail signage
  • Industrial display panels
  • Digital warehouse tags
  • Information terminals
  • Embedded display systems
Typical Applications
Electronic Shelf Label Systems

Ideal for:

  • Retail shelf labels
  • Supermarket information displays
  • Pharmacy product labels
  • Smart pricing systems
  • Digital signage displays

The 3-color display helps highlight pricing changes, promotional information, and stock notifications.

Logistics & Warehouse Systems

Applicable for:

  • Cargo identification labels
  • Smart warehouse tags
  • Shipping information displays
  • Distribution management systems

The reflective display remains readable under warehouse lighting and transportation environments.

Industrial Monitoring & Control

Suitable for:

  • Equipment status panels
  • Industrial process displays
  • Maintenance information systems
  • Factory monitoring terminals

The display supports stable operation in commercial and industrial environments with long-term reliability.

Smart Information Displays

Can be integrated into:

  • Public information terminals
  • Conference room signage
  • Smart office systems
  • Low-power digital displays
  • IoT information panels

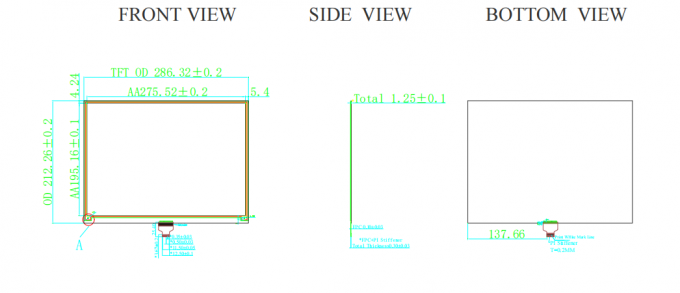

Mechanical Characteristics
Parameter Value
Outline Dimension 286.32 × 212.16 × 1.15 mm
Active Area 275.52 × 195.16 mm
Pixel Pitch 0.287 × 0.287 mm
Connector 24-Pin 0.5mm ZIF Socket
Weight 72g ±0.2g
Surface Hard-Coat Anti-Glare
Interface Features

The module supports flexible communication interfaces suitable for embedded and industrial control platforms.

Supported interfaces:

  • 3-wire SPI
  • 4-wire SPI
  • I2C temperature sensor communication

Integration features:

  • Embedded waveform memory
  • Internal voltage booster and regulator
  • Flexible FPC structure
  • OTP memory for module identification
  • Simplified peripheral circuit design
Reliability & Environmental Performance

The YE133A01 is designed for long-term commercial and industrial deployment.

Reliability features include:

  • Anti-glare hard-coating protection
  • Vibration and transportation durability
  • Stable display performance
  • Long operating lifespan
  • Reliable performance under continuous operation

Environmental compliance:

  • RoHS compliant
Customization Options
FPC & Connector Customization
  • Flexible FPC layout
  • Connector position adjustment
  • Cable length modification
  • Custom installation structure
Cover Lens Customization
  • Custom glass dimensions
  • Surface printing
  • Logo printing
  • Protective coating options
  • Anti-glare surface enhancement
Display Color Configuration

Available display combinations include:

  • Black / White
  • Black / White / Red
  • Black / White / Yellow
  • Black / White / Red / Yellow
Refresh Mode Optimization

Optional refresh solutions include:

  • Full refresh
  • Partial refresh
  • Fast refresh
  • Low-power refresh
  • Custom waveform optimization
Why Choose YE133A01
  • Large-format reflective display for information-rich applications
  • Ultra-low power consumption
  • Clear visibility under ambient light
  • 3-color display for enhanced information categorization
  • Slim industrial-grade design
  • Easy MCU and embedded system integration
  • Suitable for retail, logistics, industrial, and smart signage applications
  • OEM and ODM customization support available
