3.5 E Paper Display 184x384 Electronic Paper Screen For Smart Labels And Embedded Devices
3.5 E Paper Display 184x384 Electronic Paper Screen For Smart Labels And Embedded Devices
Specifications
Place of Origin :
Guangdong, China
Outline :
118.5×84.7×5.2 mm
Model Number :
YE035A32
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Viewing Area :
116.2mm×87.1mm
MOQ :
600pcs
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Payment Terms :
T/T
Packaging Details :
320 pcs/box
Color Gamut :
72 % of NTSC(Typ.)
Price :
4.05-7.02/pc
Supply Ability :
300k/month
Drive System :
a-Si TFT active matrix
Delivery Time :
14-30 days
Name :
E Paper Display
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Brand Name :
XXT
Operating_Temperature :
-20°C to 70°C
Description
3.5" Low Power E Ink Display 184×384 | Electronic Paper Screen for Smart Labels & Embedded Devices

184×384 Resolution Low Power Reflective Display for ESL, Portable Devices & Industrial Applications

Product Overview

The YE035A32 is a 3.5-inch reflective e-paper display module designed for compact embedded systems and low-power commercial applications. Featuring a 184×384 resolution and high-contrast Black & White display capability, this module is ideal for electronic shelf labels, portable terminals, logistics tags, wearable devices, industrial monitoring equipment, and smart embedded systems.

The display adopts reflective electrophoretic technology, providing a paper-like viewing experience with excellent readability under ambient light and direct sunlight. Thanks to bi-stable display technology, the screen only consumes power during refresh operations, making it highly suitable for battery-powered devices requiring long operating life.

Key Features
  • 3.5-inch reflective e-paper display module
  • 184×384 resolution with 122 DPI pixel density
  • High-contrast Black & White display
  • Ultra-low power consumption with deep sleep ≤3μA
  • Bi-stable image retention without continuous power
  • SPI communication interface with 3-wire / 4-wire support
  • I2C temperature sensor interface support
  • Hard-coating anti-glare surface treatment
  • Wide viewing angle with paper-like readability
  • Integrated controller with embedded RAM
  • Ultra-slim 0.9mm module thickness
  • Wide operating temperature adaptability
  • Partial refresh support
  • RoHS, HF and REACH compliant
Product Specifications
Item Specification
Model Number YE035A32
Display Size 3.5 Inch
Display Type Reflective E-Paper Display Module
Display Colors Black / White
Resolution 184 × 384
Pixel Density 122 DPI
Pixel Pitch 0.2075 × 0.2075 mm
Active Area 38.18 × 79.68 mm
Outline Dimension 45.03 × 91.75 × 0.9 mm
Interface 3-Wire / 4-Wire SPI + I2C
Driver Controller SSD1685 Compatible Controller
Connector Type 24-Pin 0.5mm ZIF Socket
Refresh Method Full Refresh / Partial Refresh
Operating Temperature -15℃ ~ 65℃
Recommended Operating Range 0℃ ~ 50℃
Storage Temperature -15℃ ~ 65℃
Deep Sleep Current ≤3μA
Power Supply 2.5V ~ 3.7V
Surface Treatment Hard-Coat Anti-Glare
Product Advantages

High-Contrast Reflective Display

The YE035A32 delivers a clear monochrome display effect with sharp text rendering and stable barcode presentation.

Key display benefits include:

  • High contrast ratio for easy readability
  • Clear display of text, QR codes, and barcodes
  • Paper-like visual experience
  • Excellent readability under strong lighting
  • Wide viewing angle without brightness distortion

The 122 DPI resolution ensures that even small fonts and detailed information remain clear and easy to read.

Ultra-Low Power Consumption

Using bi-stable display technology, the module only consumes power during content updates and retains the image after power is removed.

Power performance:

Mode Consumption
Deep Sleep ≤3μA
Typical Refresh Consumption 26mAs Max

This makes the module highly suitable for battery-powered systems requiring long operating life and low maintenance.

Wide Temperature Adaptability

The display supports stable operation in demanding commercial and industrial environments.

Environmental capabilities include:

  • Operating temperature: -15℃ ~ 65℃
  • Transportation temperature support
  • Humidity resistance
  • Vibration resistance
  • Long-term operational stability

Suitable for warehouses, logistics systems, retail environments, outdoor kiosks, and industrial equipment.

Flexible Interface & Easy Integration

The module supports multiple communication interfaces compatible with mainstream MCU and embedded systems.

Supported interfaces:

  • 3-wire SPI
  • 4-wire SPI
  • I2C temperature sensor communication

Additional integration features:

  • Embedded waveform memory
  • Partial refresh support
  • Internal voltage booster and regulator
  • Flexible FPC structure
  • OTP memory for module identification

This helps simplify hardware development and reduce system complexity.

Slim and Lightweight Design

With only 0.9mm thickness, the module is ideal for compact embedded devices and portable systems.

Suitable for:

  • Smart labels
  • Portable scanners
  • Wearable devices
  • Compact industrial terminals
  • Battery-powered information displays
Typical Applications

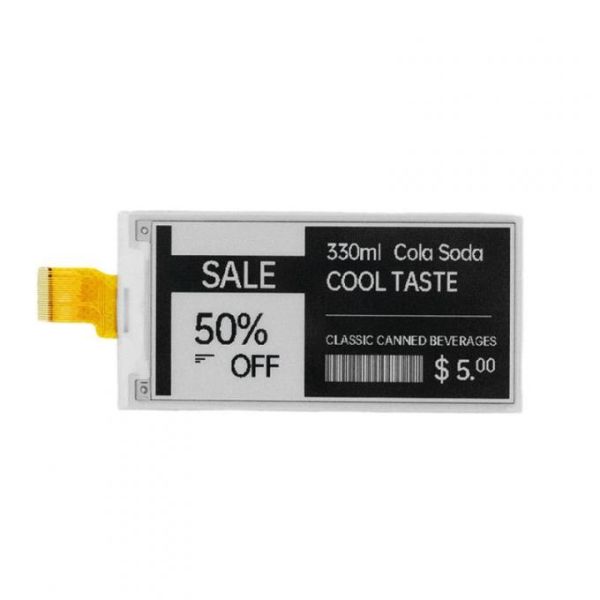

Electronic Shelf Labels

Suitable for:

  • Retail shelf labels
  • Smart pricing systems
  • Cosmetic product labels
  • Digital product information tags

The reflective display provides clear readability under store lighting while minimizing power consumption.

Logistics & Warehouse Systems

Applicable for:

  • Smart cargo tags
  • Inventory tracking labels
  • Shipping information displays
  • Warehouse identification systems

The display remains readable under warehouse lighting and transportation environments.

Portable & Wearable Devices

Suitable for:

  • Handheld terminals
  • Portable data collectors
  • Smart nameplates
  • Wearable electronic devices
  • Low-power IoT terminals

Industrial Monitoring Equipment

Can be integrated into:

  • Equipment status displays
  • Industrial process indicators
  • Maintenance information systems
  • Compact industrial control panels

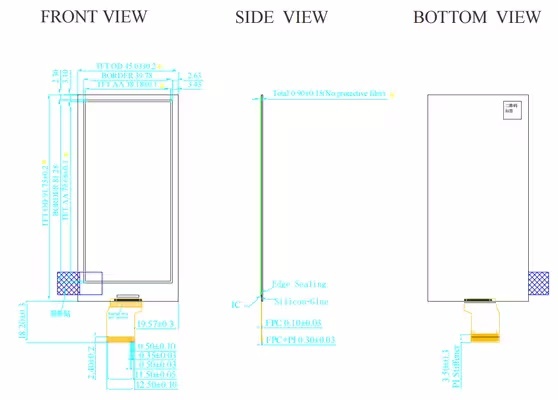

Mechanical Characteristics
Parameter Value
Outline Dimension 45.03 × 91.75 × 0.9 mm
Active Area 38.18 × 79.68 mm
Pixel Pitch 0.2075 × 0.2075 mm
Connector 24-Pin 0.5mm ZIF Socket
Surface Hard-Coat Anti-Glare
Interface Features

The module supports flexible communication interfaces for embedded and industrial systems.

Supported interfaces:

  • 3-wire SPI
  • 4-wire SPI
  • I2C communication

Integrated features include:

  • Internal waveform memory
  • Embedded voltage generation circuits
  • Partial refresh capability
  • OTP identification memory
  • Simplified peripheral circuit design
Reliability & Environmental Performance

The YE035A32 is designed for stable long-term commercial and industrial deployment.

Reliability advantages include:

  • Anti-glare hard-coating protection
  • Scratch-resistant surface
  • Vibration resistance
  • Humidity resistance
  • Long operating lifespan
  • Low maintenance requirements

Environmental compliance:

  • RoHS compliant
  • HF compliant
  • REACH compliant
Customization Options

Flexible customization services are available according to project requirements.

FPC & Connector Customization

  • Flexible FPC layout adjustment
  • Connector position modification
  • Cable length customization
  • Installation structure optimization

Cover Lens Customization

  • Custom dimensions
  • Surface printing
  • Logo printing
  • Anti-glare enhancement
  • Protective coating options

Display Color Configuration

Available display combinations include:

  • Black / White
  • Black / White / Red
  • Black / White / Yellow
  • Black / White / Red / Yellow

Refresh Mode Optimization

Optional refresh solutions include:

  • Full refresh
  • Partial refresh
  • Fast refresh
  • Low-power refresh
  • Custom waveform optimization
Why Choose YE035A32
  • Compact reflective display for embedded applications
  • Ultra-low power consumption
  • High-contrast monochrome readability
  • Wide temperature adaptability
  • Slim industrial-grade structure
  • Easy MCU and embedded system integration
  • Suitable for retail, logistics, industrial, and wearable applications
  • OEM and ODM customization support available3.5 3.5
