5.0 Inch ESP32 Display Module IPS Smart Display Module 800x480 For ESP32-S3 HMI
5.0 Inch ESP32 Display Module IPS Smart Display Module 800x480 For ESP32-S3 HMI
Specifications
Outline :
118.5×84.7×5.2 mm
Signal Interface :
LVDS
Lumens Degrees :
1000cd/m²
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Display Mode :
Normally White, Transmissive
View Direction :
free/all
Viewing Area :
116.2mm×87.1mm
Model Number :
5.0 Inch ESP32-S3HMI
Price :
$36.99/pieces -199 pieces
Controller Ic :
SSD1316
Storage Temperature :
-30℃~80℃
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Response Time :
6ms
Display Color :
Monochrome Black and White
Operating_Temperature :
-20°C to 70°C
Payment Terms :
T/T
Supply Ability :
Up to 5,000 pcs/day
Brand Name :
XXT
MOQ :
100
Name :
ESP32 Display Module
Color Gamut :
72 % of NTSC(Typ.)
Place of Origin :
GuangDong, China
Drive System :
a-Si TFT active matrix
Description
5.0 Inch IPS Smart Display for ESP32-S3 HMI with 8M PSRAM 16M Flash
Product Overview

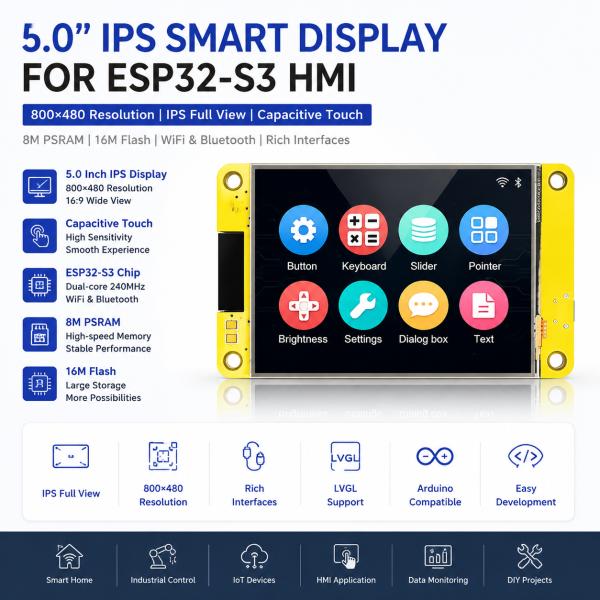

The XXT 5.0 Inch ESP32-S3 Smart Display is a high-performance HMI module featuring a 5-inch IPS LCD with 800×480 resolution, capacitive touch panel, and full LVGL GUI support. Equipped with 8MB PSRAM and 16MB Flash, this module delivers smooth and responsive graphics for industrial, medical, and IoT applications.
With built-in WiFi and Bluetooth, the module integrates display, touch, memory, and wireless connectivity into a compact all-in-one platform, suitable for embedded systems, smart devices, and development projects.

Key Features
High-Performance ESP32-S3 MCU
  • Dual-core processor with high-speed operation
  • Integrated WiFi and Bluetooth for wireless connectivity
  • Optimized for IoT, industrial, and HMI applications
  • Supports LVGL GUI framework for rich graphical interfaces
5.0 Inch IPS Display
  • 800×480 pixel resolution with vibrant color reproduction
  • IPS full viewing angle technology for wide-angle readability
  • 300 cd/m² typical brightness for clear visibility in various environments
  • Supports high-contrast, sharp display of UI elements
Capacitive Touch Panel
  • Smooth, responsive touch interface (CTP / RTP optional)
  • Supports precise interaction for HMI and embedded applications
  • Ideal for smart device control and industrial touch panels
Memory and Storage
  • 16MB Flash + 8MB PSRAM for seamless GUI rendering
  • Supports complex LVGL animations and graphical UI development
  • Enables high-speed data handling and storage

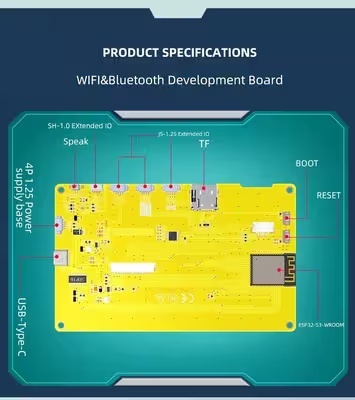

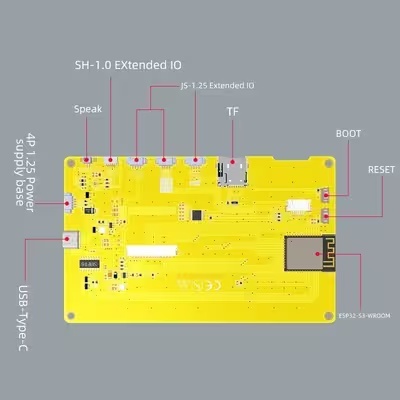

Connectivity & Expansion
  • USB interface for programming and power supply
  • Type-C interface for versatile connectivity
  • Supports external sensors, audio, and other peripherals
  • LVGL and Arduino IDE compatible
Industrial Reliability
  • Operating temperature: -20°C to +70°C
  • High-reliability IPS panel
  • safety-grade production standards ensuring long-term stable operation
  • CE, RoHS certified for international compliance
Technical Specifications
FeatureSpecification
Display Size5.0 Inch
Resolution800 × 480 Pixels
Display TypeIPS TFT LCD
Touch TypeCapacitive Touch Panel (CTP/RTP optional)
Controller ICST7262
Flash & PSRAM16MB Flash / 8MB PSRAM
Viewing AngleFull-angle IPS
Operating Voltage5V
Active Area108.0 × 64.8 mm
Outline Dimension137.0 × 84.0 mm
Brightness300 cd/m²
Operating Temp-20°C to +70°C
Storage Temp-30°C to +85°C
Weight150 g
Application Scenarios
  • Industrial HMI panels for machine control
  • Smart home devices and IoT controllers
  • Medical monitoring and portable instruments
  • Embedded device GUI development
  • Smart displays for education and prototyping
Advantages
  • All-in-One Design: Display, touch, memory, and wireless connectivity integrated in one module
  • Rapid Development: Supports Arduino IDE, LVGL, and ESP-IDF
  • Wireless Connectivity: Built-in WiFi and Bluetooth for IoT applications
  • Compact and Reliable: Industrial-grade IPS panel for stable operation
  • Flexible Expansion: Supports external peripherals, sensors, and audio modules
Company Highlights
  • 15+ years LCD production experience
  • Strong engineering team with 24/7 online support
  • CE, RoHS certified, with 12-month warranty
  • High reliability & long-term supply assurance
Packaging & Delivery
  • Sample order available
  • Minimum order quantity: 1 piece
  • Secure anti-static packaging
  • Worldwide shipping supported
Ideal For
  • Industrial and medical HMI terminals
  • Smart IoT devices
  • Embedded GUI development and prototyping
  • Portable smart display systems
  • Education and research projects
