800x480 ESP32-S3 TFT LCD Display 5.0 Inch IPS Intelligent Display Module
800x480 ESP32-S3 TFT LCD Display 5.0 Inch IPS Intelligent Display Module
Specifications
MOQ :
100
Price :
$2.99– 24.99 / Piece
Color Gamut :
72 % of NTSC(Typ.)
Supply Ability :
Up to 5,000 pcs/day
Response Time :
6ms
Viewing Area :
116.2mm×87.1mm
Lumens Degrees :
1000cd/m²
Storage Temperature :
-30℃~80℃
View Direction :
free/all
Display Mode :
Normally White, Transmissive
Display Color :
Monochrome Black and White
Interface :
RGB, SPI, MIPI, LVDS, or Parallel
Brand Name :
XXT
Controller Ic :
SSD1316
Operating_Temperature :
-20°C to 70°C
Payment Terms :
T/T
Lcm Dimension :
34.60(H) X 47.80(V) X 1.90(T)
Model Number :
JC8048W550
Signal Interface :
LVDS
Place of Origin :
GuangDong, China
Drive System :
a-Si TFT active matrix
Outline :
118.5×84.7×5.2 mm
Description
ESP32-S3 5.0 Inch IPS TFT LCD Smart Display Module 800×480 Capacitive Touch Screen
Product Overview

The JC8048W550 is a high-performance 5.0-inch ESP32-S3 smart display module designed for Human-Machine Interface (HMI), IoT applications, smart home systems, industrial control equipment, and embedded development projects.

Powered by the ESP32-S3-WROOM-1 processor, this all-in-one smart display integrates a high-resolution 800×480 IPS LCD, capacitive touch panel, WiFi, Bluetooth, onboard memory, TF card expansion, and battery management functions into a compact development platform.

With 16MB Flash and 8MB PSRAM, the module delivers smooth graphical performance and responsive user interaction, making it an ideal solution for modern embedded GUI applications.

Key Features
High-Performance ESP32-S3 Processor
  • ESP32-S3 dual-core processor
  • Integrated WiFi and Bluetooth connectivity
  • Optimized for IoT and wireless communication projects
  • Supports advanced graphical user interfaces
5.0 Inch IPS Touch Display
  • 800 × 480 resolution
  • IPS full viewing angle technology
  • Clear and vibrant image quality
  • Excellent color reproduction
  • Suitable for modern HMI interfaces
Capacitive Touch Control
  • Responsive capacitive touch technology
  • Smooth user interaction experience
  • Ideal for industrial and consumer applications
  • Supports modern touch-based user interfaces
Large Memory Capacity
  • 16MB Flash storage
  • 8MB PSRAM
  • Supports complex graphical applications
  • Enables smooth LVGL and GUI operation
Flexible Storage Expansion
  • Integrated TF card slot
  • Supports image, font, and data storage
  • Convenient for multimedia and IoT applications
Battery Management Support
  • Lithium battery interface
  • Integrated charging management circuit
  • Suitable for portable and battery-powered products
USB Type-C Interface
  • Power supply connection
  • Program downloading
  • Firmware debugging
  • Convenient development and deployment

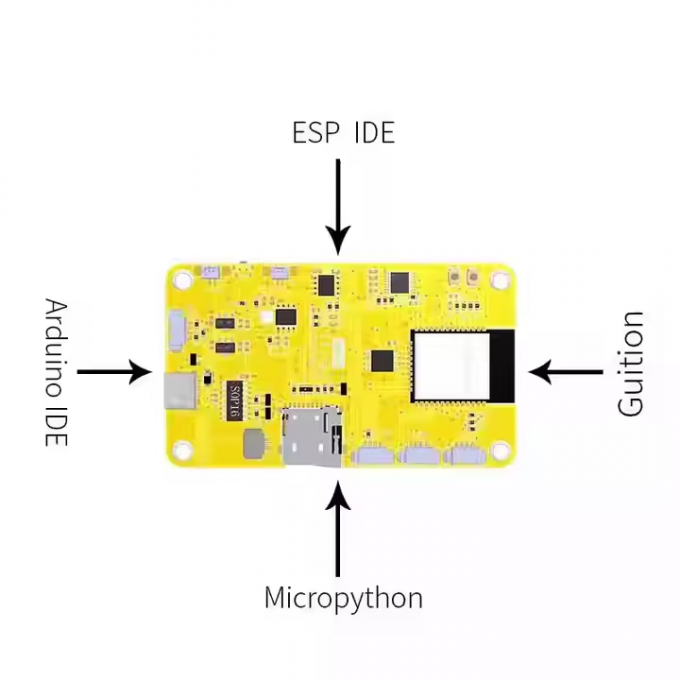

Development Ecosystem

Compatible with:

  • Arduino IDE
  • MicroPython
  • ESP-IDF
  • Guition
  • LVGL GUI Framework
Technical Specifications
Display Specifications
Item Specification
Display Size 5.0 Inch
Resolution 800 × 480 Pixels
Display Type IPS TFT LCD
Touch Type Capacitive Touch
Viewing Angle Full Viewing Angle
Brightness High Brightness Display
Controller Specifications
Item Specification
Main Controller ESP32-S3-WROOM-1
Wireless Connectivity WiFi + Bluetooth
Flash Memory 16MB
PSRAM 8MB
Expansion Storage TF Card Supported
Electrical Specifications
Item Specification
Power Supply USB Type-C
Battery Support Lithium Battery
Charging Circuit Integrated
Operating Temperature -20°C ~ +70°C
Hardware Resources

The module integrates multiple hardware resources for rapid development:

  • ESP32-S3 controller
  • IPS TFT LCD display
  • Capacitive touch panel
  • WiFi communication
  • Bluetooth communication
  • TF card slot
  • USB Type-C interface
  • Battery charging circuit
  • GPIO expansion resources
Typical Applications
Smart Home Control Panels

Suitable for:

  • Lighting control
  • Curtain control
  • HVAC systems
  • Home automation interfaces
Industrial HMI

Ideal for:

  • Equipment monitoring
  • Process control
  • Machine operation terminals
  • Factory automation systems
Medical Equipment

Applicable for:

  • Portable monitoring devices
  • Diagnostic instruments
  • Healthcare terminals
IoT Systems

Suitable for:

  • Smart agriculture dashboards
  • Sensor monitoring systems
  • Data visualization terminals
  • Edge computing devices
Energy Management

Can be used in:

  • EV charging stations
  • Battery monitoring systems
  • Energy control panels
Security & Access Control

Ideal for:

  • Access management terminals
  • Video monitoring interfaces
  • Smart security devices
Advantages

Combines display, touch, wireless communication, storage, and processing capabilities in a single compact module.

Supports mainstream ESP32 development platforms and GUI frameworks, significantly reducing development time.

Integrated wireless communication and expansion interfaces enable flexible system integration.

Designed for continuous operation with stable performance in embedded and industrial applications.

Reduces external components and simplifies product design.

Customization Services

For volume projects, customization options are available:

  • Display brightness adjustment
  • Touch panel customization
  • Firmware development
  • Interface modification
  • Logo customization
  • Housing integration support
  • OEM & ODM services
Quality Assurance

Every module undergoes functional verification and quality inspection before shipment to ensure consistent performance and reliability.

Our manufacturing process follows strict quality control standards to support long-term product availability and stable operation.

Packaging & Delivery
  • Sample orders available
  • Low MOQ support
  • Secure anti-static packaging
  • Worldwide shipping available
  • Technical support provided
Ideal For
  • Smart Home Devices
  • Industrial HMI Systems
  • IoT Control Panels
  • Medical Equipment
  • Energy Management Systems
  • Embedded GUI Development
  • Smart Terminals
  • Rapid Prototyping Projects

The JC8048W550 5.0 Inch ESP32-S3 Smart Display Module provides a complete hardware platform for developers seeking a high-performance touch display solution with wireless connectivity, advanced graphical capabilities, and flexible expansion options.
