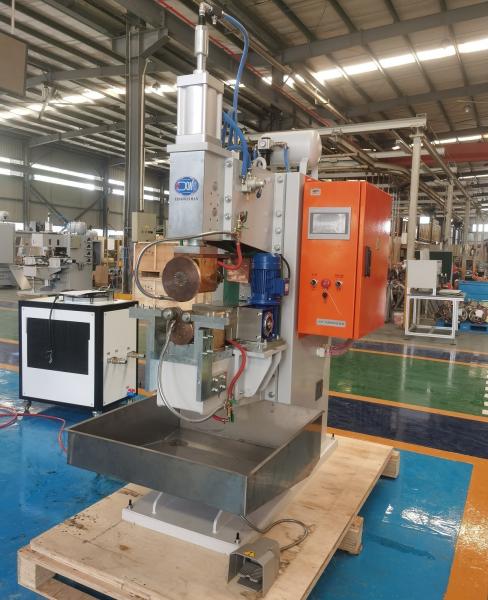

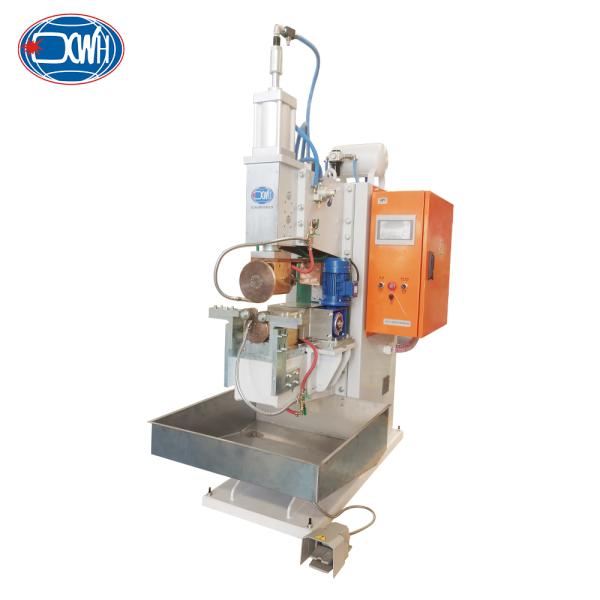

Plate Semi Auto Side Rolling Seam Welding Machine For Washing Machine Connector

Product Introduction:

The seam welding machine is a professional equipment designed for the deep optimization of stainless steel corrugated pipe ring seam welding process. Through the coordinated control of variable frequency power supply and automatic rotating fixture, it achieves precise energy management and uniform melting of ring seam welding. The equipment is designed with "human-machine collaboration" as its core, and the operator only needs to complete the loading and unloading process. The fixture positioning, pipe rotation, and welding actions are all automatically completed by the equipment, which not only reduces the operating threshold but also ensures the yield of welded parts. After welding is completed, the workpiece can be immediately transferred to an external water tank for rapid cooling, forming a coherent production rhythm. Widely used in the mass production of stainless steel water connectors such as dishwashers and ice makers in industries such as home appliances and bathrooms, its stable welding quality and efficient operation process have become key equipment for improving product reliability and production efficiency.

Features:

Technical Parameters:

General Structures:

Detailed Images:

Efficient automation process: Integrated automation is at the core of this solution, managing the precision tasks of clamping, rotating, and welding. By limiting manual intervention to managing the straightforward material handling, the system effectively eliminates variations and accelerates the production cycle.

Optimized Process with Immediate Cooling: Featuring an external water tank, the system ensures components enter the cooling phase immediately after welding. This integration on the production line's critical path not only stabilizes product quality but also shortens cycle times, enhancing overall manufacturing efficiency.

Gas Storage Tanks: Equipped with its own gas storage tank, the machine guarantees a consistent supply of pressure. This ensures that the welding force remains constant and unwavering throughout the operation, significantly boosting the reliability and performance of the equipment.

Proactive System Design: The waterway system is built with reliability in mind. All components are rust-proofed as a proactive measure, and drainage is handled via a dedicated, independent path to the tank. This design incorporates an integrated diagnostic function; the condition of the waterway can be assessed based on the outflow, facilitating the observation and elimination of blockages.

Scene Images:

Application:

Before Welding:

After Welding:

Multi Types of Seam Welders:

Horizontal Automatic Seam Welding Machine: The seam welder is mainly designed for welding shock absorbers or piston cylinder tubes. It is an automatic welding equipment used for welding circular and annular welds, widely used for welding various metal materials with sealing requirements, including stainless steel, low-alloy steel, aluminum, iron, and other alloys. It mainly completes welding by rotating the electrode to drive the workpiece to rotate.

FAQ:
