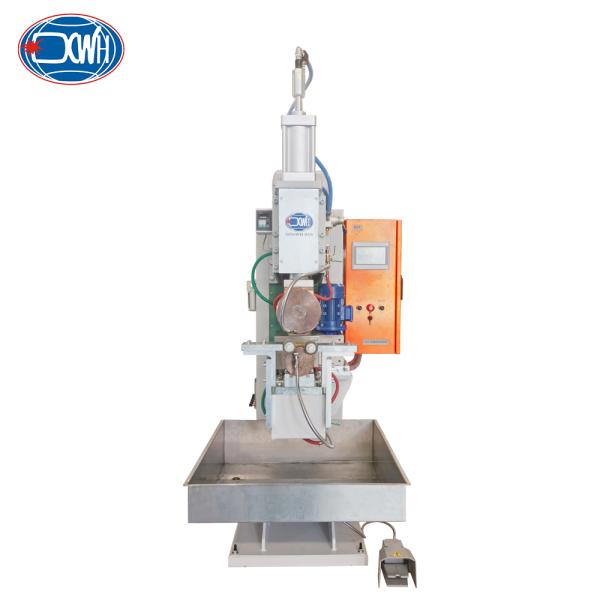

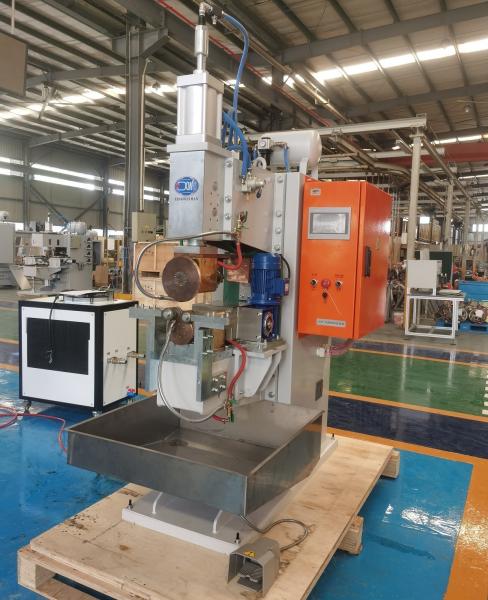

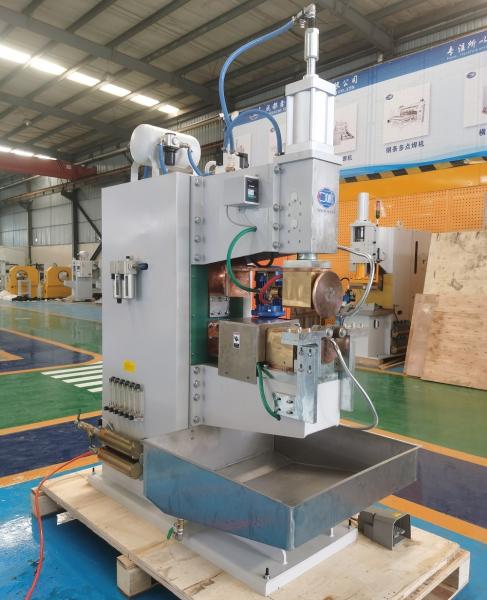

Rolling Resistance Stainless Steel Bellows Braided Water Connectors Seam Welders

Product Introduction:

This corrugated stainless steel variable frequency ring seam welding machine is an efficient welding equipment that integrates automation and humanized design, specially designed for water connection applications of flexible corrugated stainless steel pipe fittings. It adopts a working mode of "manual feeding automatic clamping, rotary welding manual material extraction and cooling", fully delegating the highly repetitive core welding process to the machine for automatic completion, ensuring stable and efficient production pace. Its sturdy heavy-duty body (1200KG) provides reliable support for continuous mass production and is an ideal choice for production lines of household appliance connectors such as dishwashers and washing machines.

Features:

1.The body is designed for impact resistance, earthquake resistance, and high rigidity, and is finely processed by machinery to meet the installation and load strength of each component. Multiple reinforcing ribs have been welded inside the rack to ensure the rigidity of the equipment during use and minimize slight deformation during the welding process, ensuring the stability of welding and the safety of manual use.

2.The upper electrode is pressurized by a gas-liquid booster cylinder, and the electrode pressure is adjustable. The gas-liquid booster cylinder can achieve high output of the hydraulic cylinder using general air pressure without the need for a hydraulic unit.

3.The equipment is equipped with air pressure, water pressure switches, and alarms. It can effectively prevent water or gas shortage welding, thereby protecting the safety of equipment use.

4.The descent and ascent speed of the pressure head can be adjusted arbitrarily, which alleviates the pressure impact on the workpiece and reduces noise.

5.Electrode pressurization, smooth and fast, aluminum alloy cylinder barrel, low damping sealing ring, light friction ring combination cylinder, equipped with a pilot high flow electromagnetic directional valve, with faster response speed and extremely sensitive follow-up performance, achieving extremely high dot speed.

6.Insulation protection, safe and reliable. The secondary side circuit adopts a pressurized cylinder seat and upper arm insulation method, which facilitates direct installation and welding work on the lower seat without worrying about short circuits. It is simple and practical.

7.Welding power supply, energy-saving and efficient. The main welding circuit adopts a fully water-cooled resistance welding transformer and rectifier, with strong output power.

Technical Parameters:

Model Item	Unit	FN-80-H	FN-100-H	FN-160-H	FN-100-E	FN-160-E
Rated power	KVA	80	100	160	100	160
Voltage input	V	380	380	380	380	380
Frequency	Hz	50	50	50	50	50
Max. short circuit current	KA	26	30	40	30	40
Working stroke	mm	100	100	100	100	100
Welding efficiency	m/min	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9	0.7-3.9
Max. force	N	6000	6000	7800	6000	7800
Max. welding capacity	mm	1.2+1.2	1.5+1.5	2.0+2.0	1.5+1.5	2.0+2.0
Motor Power	W	550	750	750	750	400
Cooling consumption	L/min	8	8	10	8	10
Weight	Kg	380	510	630	530	700
