Specifications
max. welding thickness :
6+6mm
power (kw) :
1000W
rated capacity :
100-250KVA
voltage :
380 V, 220 V, 440V
Brand Name :
Xingweihan
Place of Origin :
Sichuan, China
condition :
New
dimensions :
1200*1700*2200mm
rated duty cycle :
50%
usage :
Brake Base Plate Spot Welding Machine
warranty :
1 Year
weight (kg) :
1000
Product Name :
Carbon Steel Car Brake Base Plate Projection Welding Machine Price
Application :
Industrial Automatic
Function :
Projection Welding Machine Stainless Steel
Machine type :
Pneumatic
Keyword :
Automatic Projection Welding Machine
Feature :
Projection Spot Welding
Welding material :
Alloy Metal Aluminum Stainless Steel
Certification :
CE, RoHS, ISO
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
MOQ :
1 set
Price :
$20,000-25,000 / set
Description
Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate
Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate
Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate

Product Description

Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate

The automatic projection welder for carbon steel automotive brake bottom plate is a high-precision automated welding equipment specially developed for automotive brake systems. It adopts medium frequency inverter (MFDC) or capacitor energy storage welding technology, integrates servo drive system and PLC intelligent control, and achieves efficient spot welding and convex welding processing of carbon steel brake bottom plate (Q235/SPHC, 1-6mm). Through digital parameter control, ensure that the welding strength meets the standards of automotive safety components, suitable for automated connection of brake base plates and fasteners (nuts/bolts).
Technical Parameters
Items \ Models
DN(B)-100
DN(B)-160
DN(B)-200
DN(B)-250
Rated power (KVA)
100
160
200
250
Power input(V)
3φAC 380V
3φAC 380V
3φAC 380V
3φAC 380V
Max. short circuit current （KA）
30
35
40
45
Duty cycle（%）
50
50
50
50
Max. force（N）
6000
6000
10000
15000
Electrode length（ MM）
450
450
450
500
Working stroke（ MM）
80
80
80
80
Cooling consumption（L/min）
20
20
20
20
Max. welding capacity（MM）
3.0+3.0
4.0+4.0
5.0+5.0
6.0+6.0

Main Features

1. Use servo motors or high-precision pneumatic pressurization systems to ensure stable welding pressure and avoid virtual welding and deformation.
2. Supports both spot welding and projection welding modes to meet different welding needs (such as flat spot welding or projection welding).
3. Welding current, time, pressure and other parameters can be accurately adjusted to ensure consistent welding strength.
4. Integrate automatic positioning, welding, and detection functions to reduce manual intervention and improve production efficiency.
5. Optional robot or rotary multi station system for continuous welding, suitable for large-scale production.
6. Strong compatibility and stability are suitable for 1-6mm carbon steel plates, which can be welded to workpieces with coatings or slight corrosion.
7. Adopting medium frequency direct current (MFDC) or capacitor energy storage power supply, with less welding spatter, low electrode loss, and longer lifespan.
8. Equipped with a water cooling system to ensure long-term continuous operation without generating heat.
9. PLC+touch screen control, supports multiple sets of welding parameter storage, facilitates quick production changes.
10. Optional real-time monitoring system (such as current monitoring, pressure feedback) to ensure that the quality of each solder joint meets the standard.
11. Low noise, low smoke and dust, improve the working environment in the workshop.

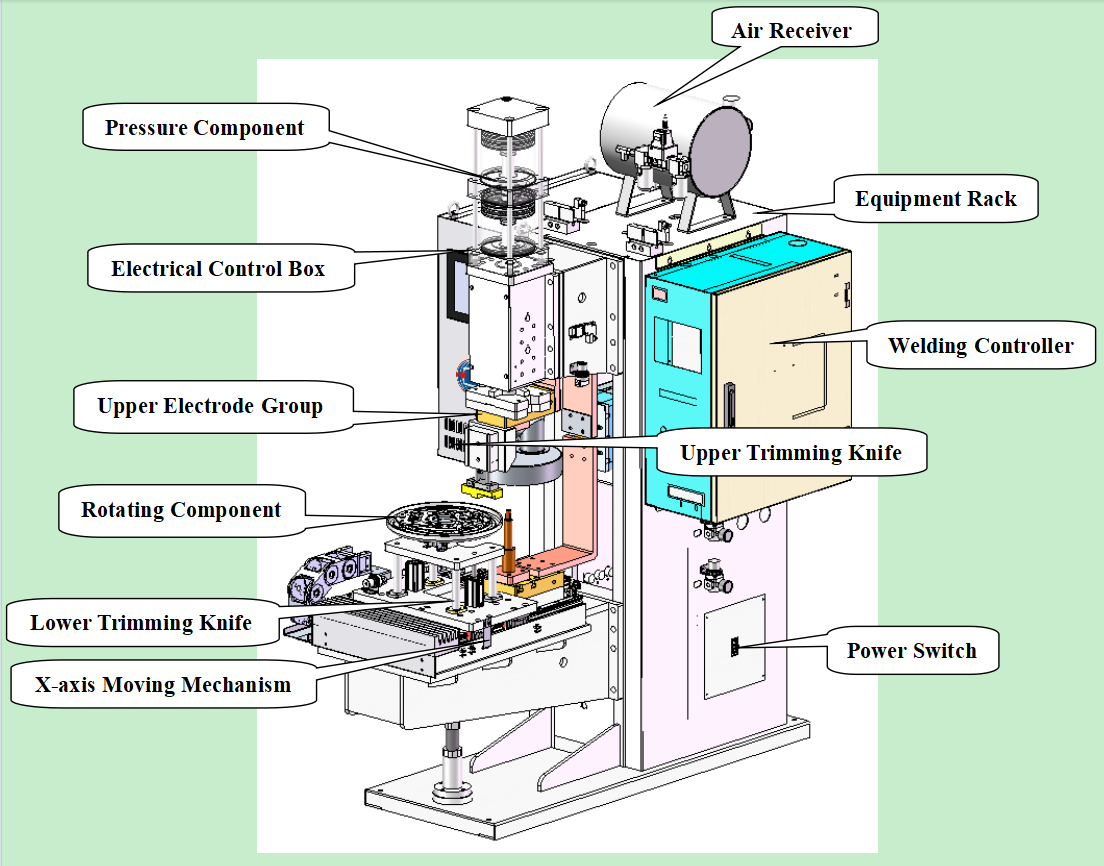

General Strctures
Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate
Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate
Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate
Detail Images
Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate

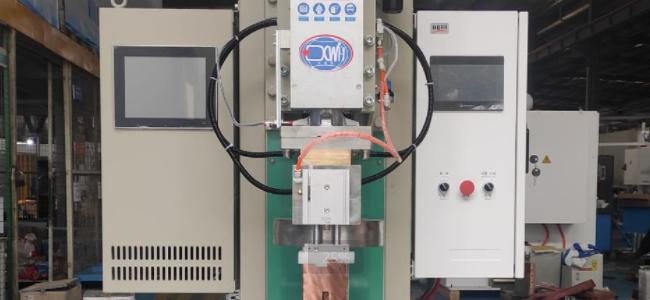

Dual Cabinet Configuration

In addition to the conventional welding controller, the welding system is also equipped with an electrical control cabinet, which enables safer, more efficient, and intelligent operation, especially suitable for industrial scale large-scale or high-precision welding tasks.
Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate

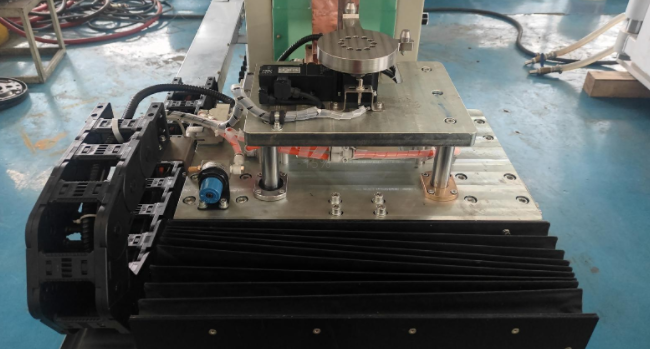

Fully Automatic Welding

High compatibility, with 3 types of workpieces corresponding to 3 types of fixtures. Simply replace the positioning component to achieve model change. Fully automatic welding, automatically moving the point position to complete the welding.
Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate

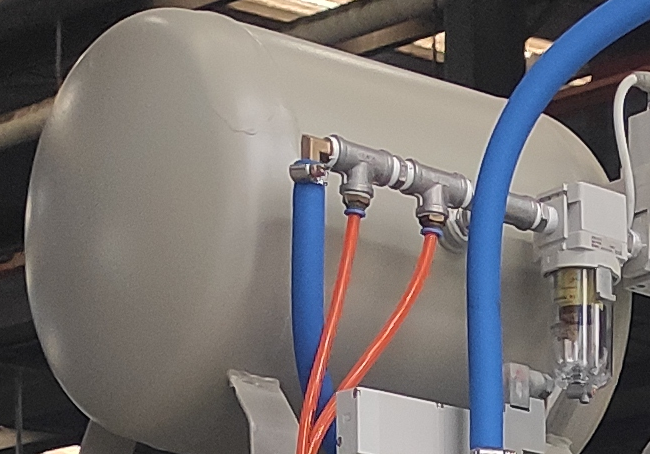

Gas Storage Tanks

The projection and spot welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force.
Pneumatic Stainless Nut Resistance Welders Spot Welder Automatic Projection Welding Machine Carbon Steel Car Brake Base Plate

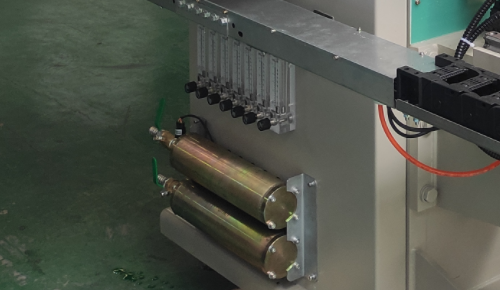

Waterway Components

All waterway components have undergone surface treatment to prevent rusting, and any drainage from the waterway is independently discharged into the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.

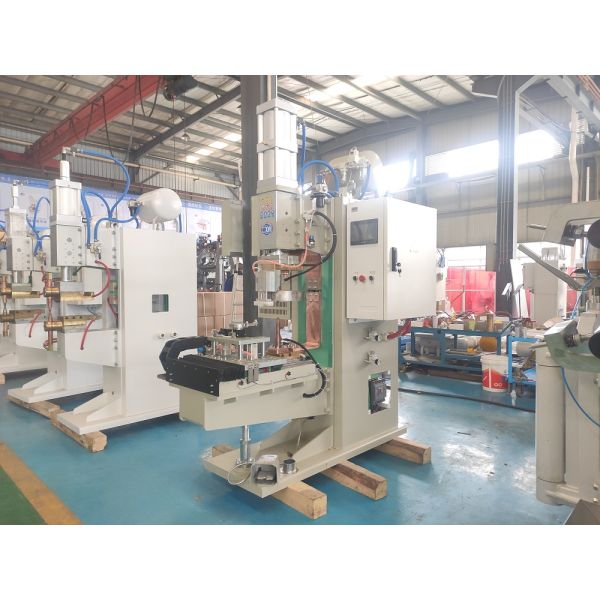

Scene images
