Product name:Automatic Feeding Double-Sided Spot Welding Machine
Product Description

This is a stationary, DC pneumatic spot welding machine designed for the automated assembly of shock absorber bottom covers. It features an integrated automatic feeding system with two high-precision vibrating bowls for the bottom cover and welding ring, respectively. The system utilizes a servo-driven positioning mechanism for accurate part alignment and an MFDC (Mid-Frequency Direct Current) inverter welding power supply combined with a constant pressure control system to perform welding. It is engineered to complete the welding and unloading process automatically, supporting a continuous production cycle.

Technical Parameters
Items ModelsDN(B)-100DN(B)-160DN(B)-200DN(B)-250
Rated power (KVA)100160200250
Power input(V)3φAC 380V3φAC 380V3φAC 380V3φAC 380V
Max. short circuit current (KA)30354045
Duty cycle(%)50505050
Max. force(N)600060001000015000
Electrode length( MM)450450450500
Working stroke( MM)80808080
Cooling consumption(L/min)20202020
Max. welding capacity(MM)3.0+3.04.0+4.05.0+5.06.0+6.0
Main Features

A. Complete Automated Workflow

  • Integrated Auto-Feeding:​ Two independent vibrating bowl feeders are designed for automated orienting and precise feeding of both the bottom cover and welding ring components, reducing manual handling.

  • Servo-Assisted Precision:​ A servo-driven positioning mechanism is employed to help ensure accurate assembly of workpieces prior to welding.

B. Stable & Efficient Welding Process

  • MFDC Inverter Power Supply:​ The use of a Mid-Frequency DC inverter welding power supply, combined with constant pressure control, aims to provide stable, controllable welding energy for consistent results.

  • Optimized Pressure Application:​ A pneumatic-hydraulic booster cylinder provides adjustable electrode pressure, while a dedicated air storage tank is included to help minimize fluctuations in welding force.

C. Robust and Durable Construction

  • High-Rigidity Machine Frame:​ The body is designed for impact resistance and high rigidity, with internal reinforcement ribs intended to minimize deformation during operation and support welding stability.

  • Responsive Drive System:​ The use of a combination cylinder with low-friction components and a pilot-operated high-flow valve is designed for smooth, fast electrode movement and responsive performance.

D. Operational Safety & Protection

  • Comprehensive System Monitoring:​ Equipped with air and water pressure switches and alarms, the system is designed to help prevent operation during pressure shortages, protecting the equipment.

  • Insulated Secondary Circuit:​ An insulated upper arm and pressurized cylinder seat design is intended to help prevent short circuits during direct installation on the lower base, promoting operational safety.

General Structures

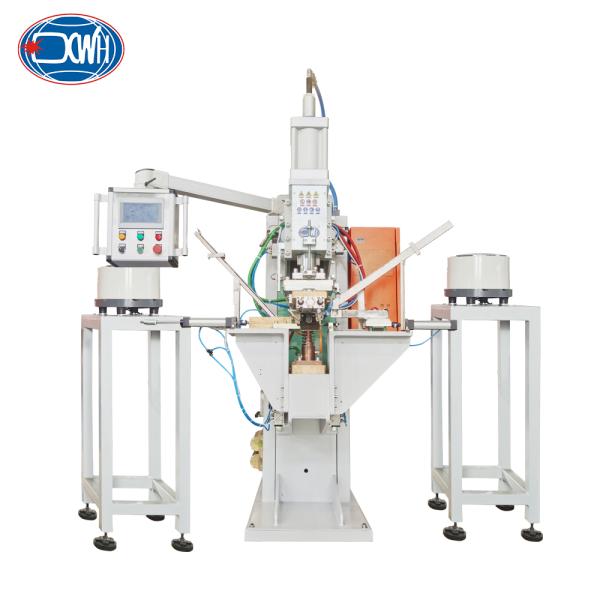

Automatic Feeding Double-Sided Spot Welding Machine

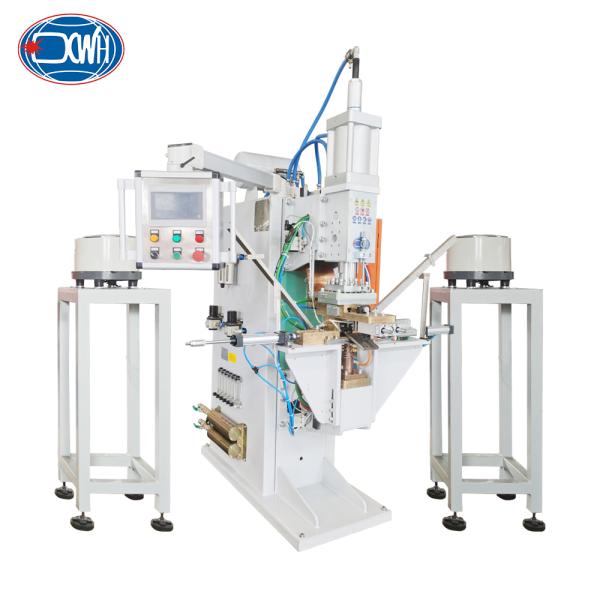

Automatic Feeding Double-Sided Spot Welding Machine
Detail Images
Automatic Feeding Double-Sided Spot Welding Machine
Human-computer Interaction Interface
Automatic Feeding Double-Sided Spot Welding Machine
Double Vibration Disc Efficient Feeding System
Automatic Feeding Double-Sided Spot Welding Machine

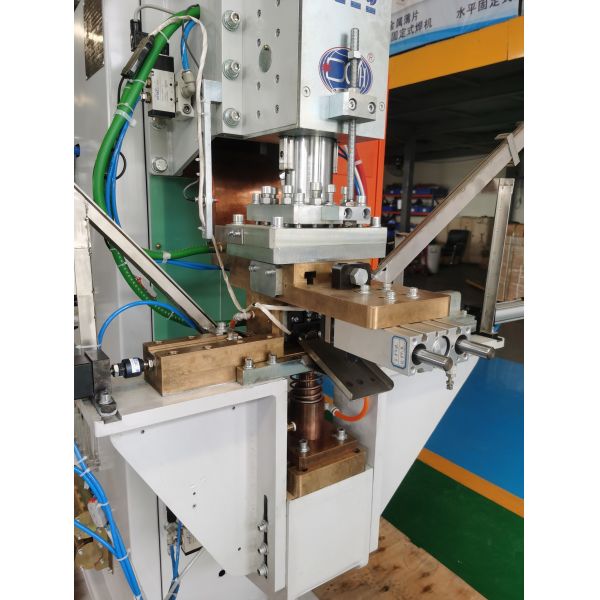

Customized Fixtures and Moving Components
Automatic Feeding Double-Sided Spot Welding Machine

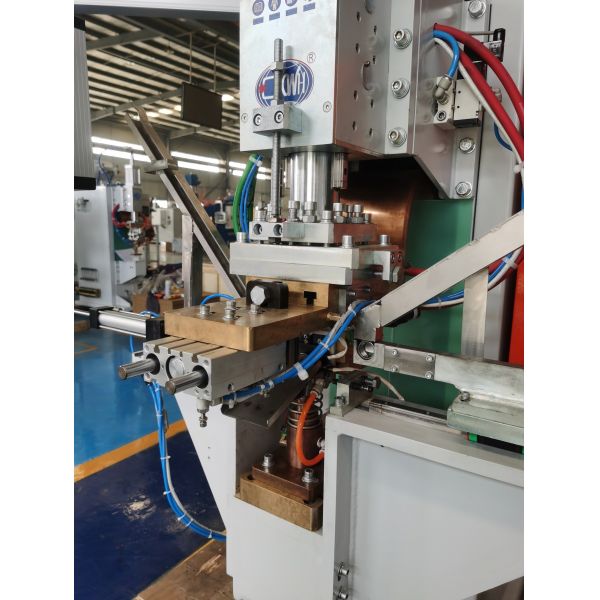

Waterway Components
Scene images
Automatic Feeding Double-Sided Spot Welding Machine
Automatic Feeding Double-Sided Spot Welding Machine

Our factory can customize according to your requirments. More details, please contact!
