Specifications
max. welding thickness :
6+6mm
power (kw) :
1000W
rated capacity :
40-250KVA
voltage :
380 V, 220 V, 440V
Brand Name :
Xingweihan
Place of Origin :
Sichuan, China
condition :
New
dimensions :
1200*1500*2000mm
rated duty cycle :
50%
usage :
Resistance Welders For Fuel Filler Cap
warranty :
1 Year
weight (kg) :
800
Product Name :
Resistance Welder Oil Tank Welding Machine for Fuel Filler Cap
Application :
Resistance Welding Machine
Function :
Projection Welding Machine Price
Machine type :
Semi-automatic
Keyword :
Resistance Welder
Feature :
Projection Spot Welding
Welding material :
Alloy Metal Aluminum Stainless Steel
Certification :
CE, RoHS, ISO
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
MOQ :
1 set
Price :
$20,000-25,000 / set
Description
New 50 KVA Semi-automatic Aluminum Metal Steel China Made Pneumatic Standing 3Mm Resistance Welder Oil Tank Welding Machine Fuel
New 50 KVA Semi-automatic Aluminum Metal Steel China Made Pneumatic Standing 3Mm Resistance Welder Oil Tank Welding Machine Fuel
New 50 KVA Semi-automatic Aluminum Metal Steel China Made Pneumatic Standing 3Mm Resistance Welder Oil Tank Welding Machine Fuel

Product Description

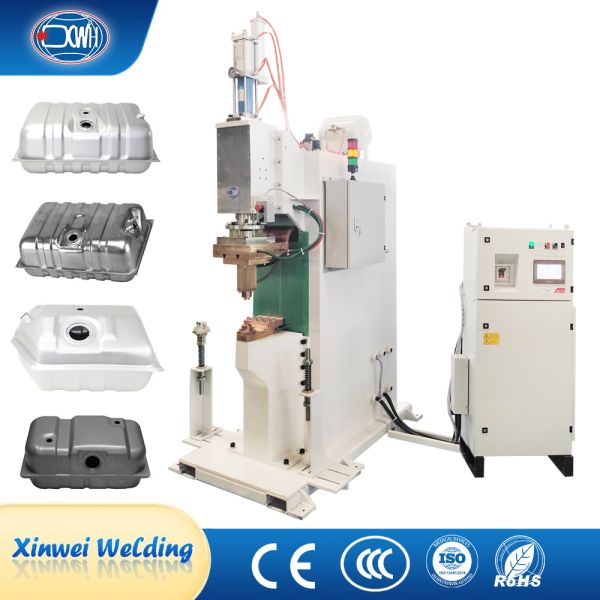

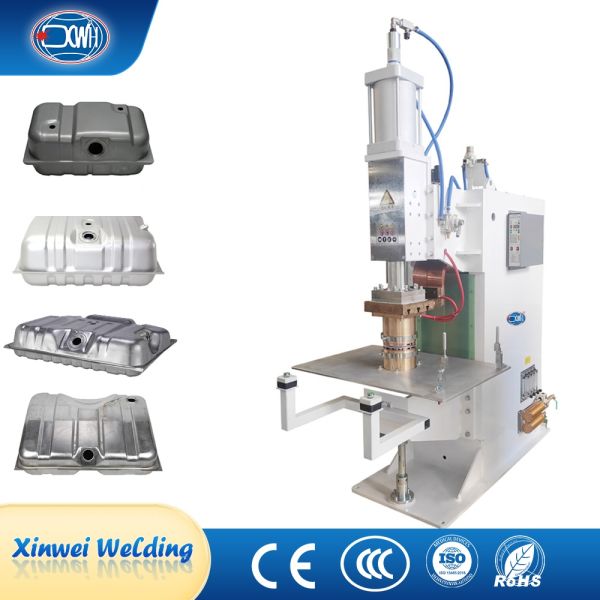

50 Kva Aluminum Metal Steel China Made Pneumatic Standing 3Mm Resistance Welder Oil Tank Welding Machine for Fuel Filler Cap

The semi-automatic projection welding machine designed specifically for fuel tank production lines simplifies the operation process: manual placement of workpieces → automatic positioning and clamping by the equipment → precise convex welding → manual picking of parts. Configure intelligent welding parameter memory function, which can store 50 sets of welding schemes for different specifications of products, without the need for re debugging when switching. The large tonnage gas-liquid pressurization system ensures constant welding pressure, coupled with water-cooled electrode design, and can work continuously and stably for more than 8 hours. Specially optimized ergonomic design makes it more convenient for operators to pick up and place workpieces, and a single person can complete the entire welding process, significantly improving production efficiency.
Technical Parameters
Items \ Models
DN(B)-100
DN(B)-160
DN(B)-200
DN(B)-250
Rated power (KVA)
100
160
200
250
Power input(V)
3φAC 380V
3φAC 380V
3φAC 380V
3φAC 380V
Max. short circuit current （KA）
30
35
40
45
Duty cycle（%）
50
50
50
50
Max. force（N）
6000
6000
10000
15000
Electrode length（ MM）
450
450
450
500
Working stroke（ MM）
80
80
80
80
Cooling consumption（L/min）
20
20
20
20
Max. welding capacity（MM）
3.0+3.0
4.0+4.0
5.0+5.0
6.0+6.0

Main Features

1.The body is designed for impact resistance, earthquake resistance, and high rigidity, and is finely processed by machinery to meet the installation and load strength of each component. Multiple reinforcing ribs have been welded inside the rack to ensure the rigidity of the equipment during use and minimize slight deformation during the welding process, ensuring the stability of welding and the safety of manual use. 2.The upper electrode is pressurized by a gas-liquid booster cylinder, and the electrode pressure is adjustable. The gas-liquid booster cylinder can achieve high output of the hydraulic cylinder using general air pressure without the need for a hydraulic unit. 3.The welding machine is equipped with a dedicated gas storage tank, which is beneficial for reducing welding pressure fluctuations and ensuring stable welding force. 4.The equipment is equipped with air pressure, water pressure switches, and alarms. It can effectively prevent water or gas shortage welding, thereby protecting the safety of equipment use. 5.The descent and ascent speed of the pressure head can be adjusted arbitrarily, which alleviates the pressure impact on the workpiece and reduces noise. 6.Electrode pressurization, smooth and fast, aluminum alloy cylinder barrel, low damping sealing ring, light friction ring combination cylinder, equipped with a pilot high flow electromagnetic directional valve, with faster response speed and extremely sensitive follow-up performance, achieving extremely high dot speed. 7.Insulation protection, safe and reliable. The secondary side circuit adopts a pressurized cylinder seat and upper arm insulation method, which facilitates direct installation and welding work on the lower seat without worrying about short circuits. It is simple and practical. 8.Welding power supply, energy-saving and efficient. The main welding circuit adopts a fully water-cooled resistance welding transformer and rectifier, with strong output power.

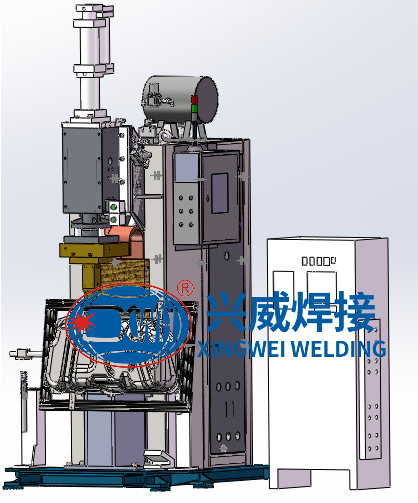

General Strctures
New 50 KVA Semi-automatic Aluminum Metal Steel China Made Pneumatic Standing 3Mm Resistance Welder Oil Tank Welding Machine Fuel
Detail Images
New 50 KVA Semi-automatic Aluminum Metal Steel China Made Pneumatic Standing 3Mm Resistance Welder Oil Tank Welding Machine Fuel

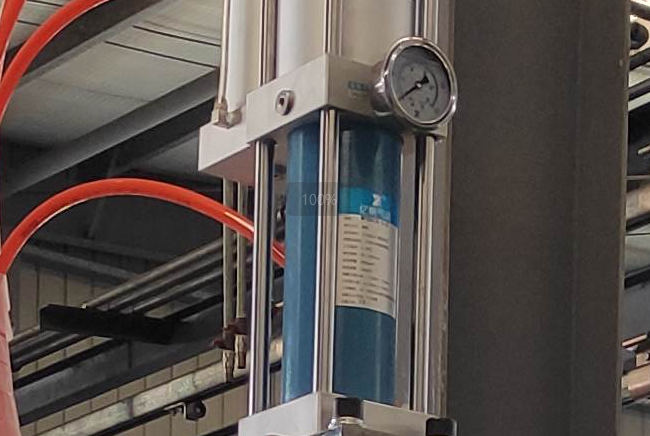

Welding Booster Cylinder

Characteristics: ① Fast speed and stable output. ② The device is simple, easy to adjust, and easy to maintain. ③ High output, capable of reaching the highest output of oil pressure. ④ Convenient access to power sources. ⑤ The movement noise is low. ⑥ There is no disturbance of temperature rise in the oil pressure system.
New 50 KVA Semi-automatic Aluminum Metal Steel China Made Pneumatic Standing 3Mm Resistance Welder Oil Tank Welding Machine Fuel

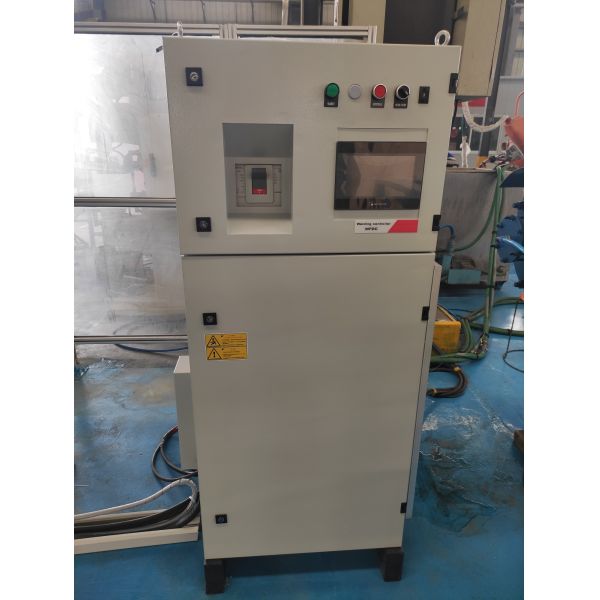

External Intermediate Frequency Controller

The external intermediate frequency controller of the refueling port convex welding machine is the core intelligent control system of the equipment. It adopts intermediate frequency inverter technology (1-4kHz) to achieve high-precision adjustment of welding energy. Through digital control of key parameters such as welding current, time, and pressure, it ensures stable and reliable welding quality of different materials of refueling port flanges
New 50 KVA Semi-automatic Aluminum Metal Steel China Made Pneumatic Standing 3Mm Resistance Welder Oil Tank Welding Machine Fuel

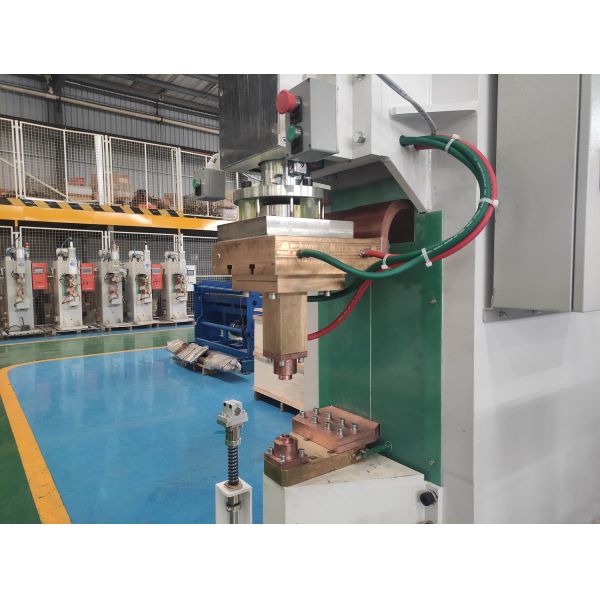

The Upper Electrode

The upper electrode is pressurized with an auxiliary cylinder, making stroke adjustment convenient and precise, allowing for continuous adjustment of the workpiece operation stroke.
New 50 KVA Semi-automatic Aluminum Metal Steel China Made Pneumatic Standing 3Mm Resistance Welder Oil Tank Welding Machine Fuel

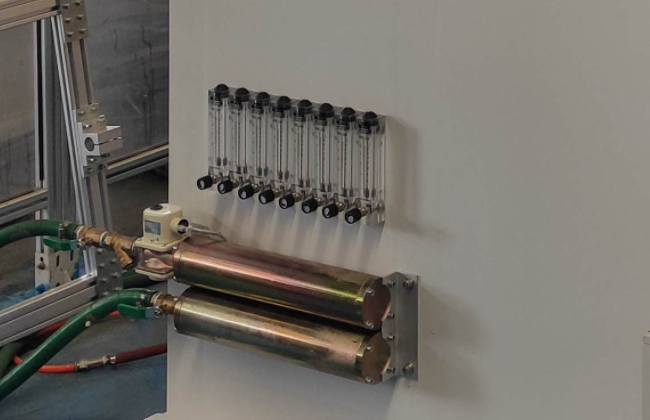

Waterway Components

All waterway components have undergone surface treatment to prevent rusting, and any drainage from the waterway is independently discharged into the water tank. Based on the outflow situation, blockages in the waterway can be observed and eliminated.
Scene images
New 50 KVA Semi-automatic Aluminum Metal Steel China Made Pneumatic Standing 3Mm Resistance Welder Oil Tank Welding Machine Fuel
New 50 KVA Semi-automatic Aluminum Metal Steel China Made Pneumatic Standing 3Mm Resistance Welder Oil Tank Welding Machine Fuel
Our factory can customize according to your requirments. More details, please contact!
New 50 KVA Semi-automatic Aluminum Metal Steel China Made Pneumatic Standing 3Mm Resistance Welder Oil Tank Welding Machine Fuel
New 50 KVA Semi-automatic Aluminum Metal Steel China Made Pneumatic Standing 3Mm Resistance Welder Oil Tank Welding Machine Fuel
New 50 KVA Semi-automatic Aluminum Metal Steel China Made Pneumatic Standing 3Mm Resistance Welder Oil Tank Welding Machine Fuel
