Product name: CNC-Controlled Multi-Point Projection Welding Machine

Product Description

This Semi-Automatic CNC Projection Welding Machine is engineered for efficient, high-consistency multi-point welding in metal fabrication. It performs sequential projection welding on up to 8 points in a single clamping cycle, driven by a programmable CNC welding controller for automated operation. The design emphasizes stable welding pressure, independent parameter adjustment for each head, and a rigid structure to support precise, reliable performance in stationary production environments. It is suitable for manufacturers seeking to enhance welding consistency and operational efficiency for specific component assemblies.

Technical Parameters

Main Features

A. Precision & Consistent Welding Quality

• CNC-Controlled Automated Sequence:​ The welding process is managed automatically by the controller from start to finish, minimizing manual intervention and promoting consistent results across all weld points.

• Independent Parameter Control:​ Welding pressure and current can be adjusted independently for each welding head, allowing fine-tuning for different material or thickness requirements.

• Reduced Inefficiency:​ Adjustable auxiliary strokes on each head help minimize non-welding idle travel, which can enhance cycle efficiency and help prevent workpiece interference.

B. Robust Construction & Stable Performance

• High-Rigidity Machine Body:​ Designed with shock and vibration resistance in mind, the precision-machined body and internally reinforced rib structure aim to minimize deformation during welding, contributing to stability and safety.

• Stable Welding Force Output:​ A pneumatic-hydraulic booster cylinder combined with a dedicated air storage tank works to minimize welding pressure fluctuations, promoting a consistent application of force.

C. Operational Efficiency & Ease of Use

• Simplified Workpiece Handling:​ The design separates the welding stroke from the handling stroke, with a movable upper electrode and fixed lower electrode, which can simplify the loading and alignment process for operators.

• Adjustable & Cushioned Motion:​ Fully adjustable descent and ascent speeds for the pressure head are intended to cushion contact with the workpiece and may contribute to reduced operational noise.

D. Responsive Drive System

• High-Speed Operation:​ The system utilizes a combination cylinder with low-resistance components paired with a high-flow solenoid valve. This configuration is designed to achieve faster response times and higher operating speeds.

Detail Images

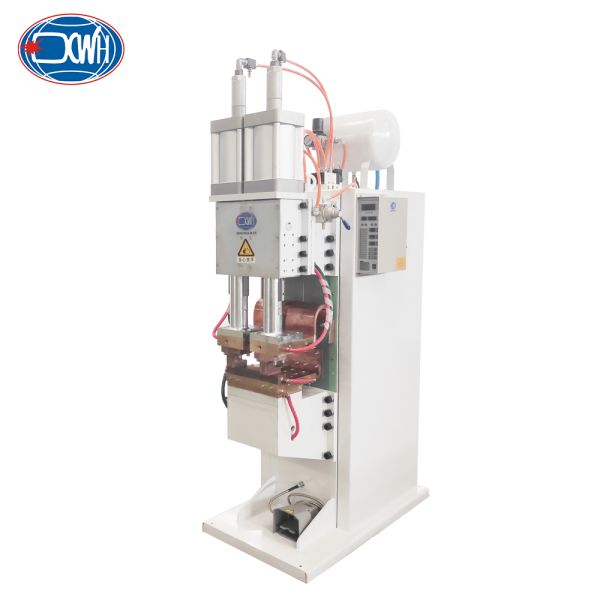

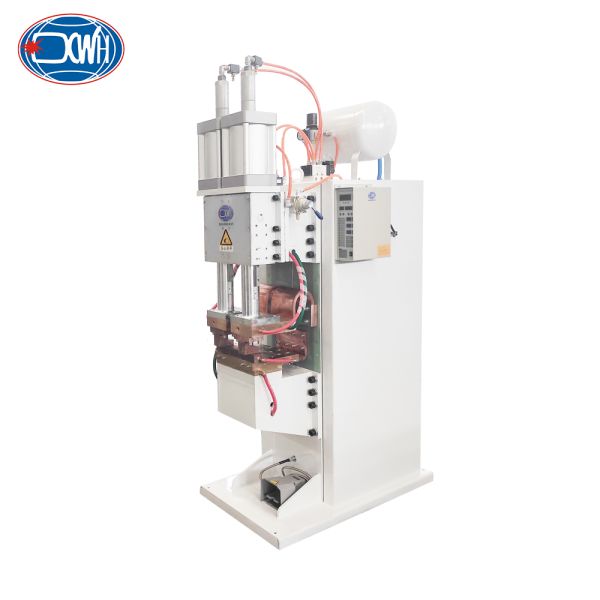

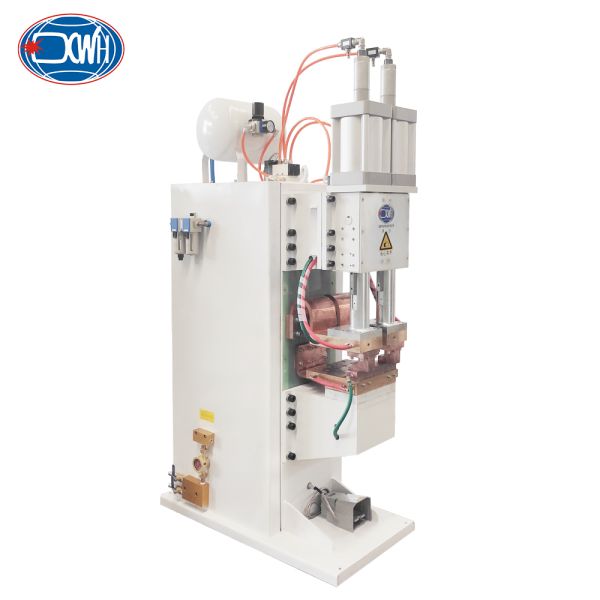

Different Angles of Product
