100KVA Projection & Spot Welding Machine for Shock Absorbers
100KVA Projection & Spot Welding Machine for Shock Absorbers
100KVA Projection & Spot Welding Machine for Shock Absorbers
100KVA Projection & Spot Welding Machine for Shock Absorbers
100KVA Projection & Spot Welding Machine for Shock Absorbers
100KVA Projection & Spot Welding Machine for Shock Absorbers
100KVA Projection & Spot Welding Machine for Shock Absorbers
100KVA Projection & Spot Welding Machine for Shock Absorbers
Specifications
Brand Name :
XinWeiHan
Place of Origin :
Sichuan, China
Certification :
ISO,CE
MOQ :
1 set
Price :
$28,000-38,000 / set
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10 sets per month
Delivery Time :
25-45 working days
Product Name :
100KVA Projection & Spot Welding Machine for Shock Absorbers
rated capacity :
100/160/200/250KVA
voltage :
220V/380V
condition :
New
dimensions :
costomized
rated duty cycle :
50%
warranty :
1 Year
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Description

Product name: 100KVA Projection & Spot Welding Machine for Shock Absorbers

Product Description

This 100KVA Projection Welding Machine is a specialized solution designed for welding shock absorber assemblies, particularly brackets with pre-formed protrusions. It performs simultaneous projection welding on both sides of the bracket and inner plate, handling up to 10 weld points in one operation. Utilizing pneumatic pressurization and CNC-controlled welding parameters, it aims to provide precise, efficient welding for materials with a combined thickness such as 4.5mm+2.5mm. The machine features a manual operation interface with a touch screen, balancing controlled automation with operator oversight for specific production workflows

Technical Parameters

Item/Model DN(B)-100 DN(B)-160 DN(B)-200 DN(B)-250
Rated power At 50%(KVA) 40 63 80 100
Rated primary power(V) 3φAC 380V 3φAC 380V 3φAC 380V 3φAC 380V
Max. Short Circuit Current (KA) 30 35 40 45
Duty cycle(%) 50 50 50 50
Max. Force(N) 6000 6000 10000 15000
Electrode Length( mm) 450 450 450 500
Working Stroke( mm) 80 80 80 80
Cooling consumption(L/min) 20 20 20 20
Max. Welding Capacity(mm) 3.0+3.0 4.0+4.0 5.0+5.0 6.0+6.0

Main Features

A. Targeted Welding Precision for Brackets

  • Dedicated Fixture Design:​ The machine is configured based on specific workpiece geometry, utilizing a copper positioning fixture intended for accurate part placement and to help reduce fixture heating during operation.

  • Simultaneous Bilateral Welding:​ The welding system is designed to weld both sides of the bracket assembly at once, which can help maintain alignment consistency and may contribute to welding quality.

B. Robust & Reliable System Construction

  • Stable Power Output:​ The main circuit incorporates a water-cooled, high-power IGBT module, aimed at ensuring strong and stable welding current output for reliability.

  • Insulated Secondary Conductors:​ An upper insulation method for secondary conductors is used to promote stable and reliable insulation performance during operation.

C. Efficient Operation & Control

  • Rapid Cycling Capability:​ The use of a direct-acting solenoid valve is intended to accelerate the press head’s reaction speed, potentially increasing operating cycles and reducing air consumption.

  • Process Flexibility:​ An integrated touch screen allows for quick switching between different stored welding programs, facilitating changeovers for various production runs.

D. Enhanced Cooling & Safety Design

  • Durable Water Cooling System:​ Water circuit components are constructed from copper and stainless steel, and include a visual flow indicator for easy monitoring of cooling system operation.

  • Manual Control with Safety:​ Operation via manual switches is designed to provide clear operator control with safety protections, aiming to support efficient production while addressing labor intensity.

Detail Images

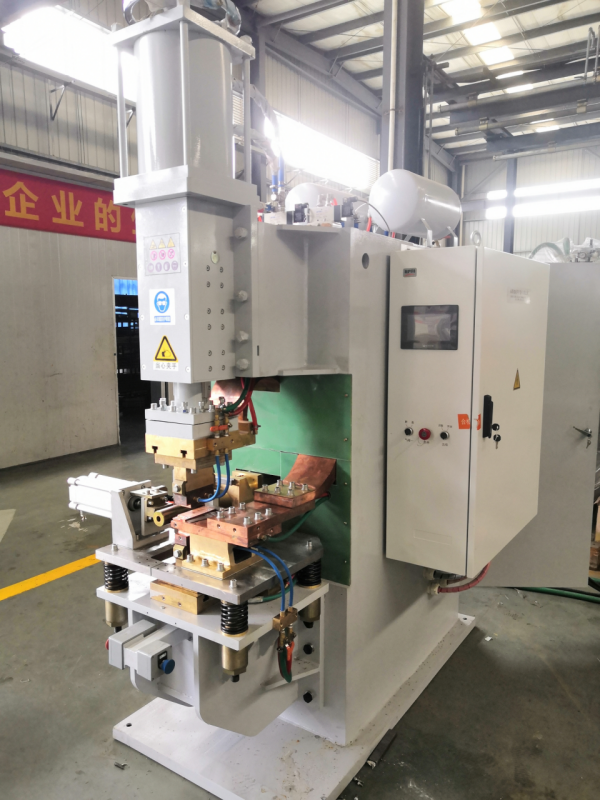

100KVA Projection & Spot Welding Machine for Shock Absorbers
100KVA Projection & Spot Welding Machine for Shock Absorbers

Different Angles of Product

100KVA Projection & Spot Welding Machine for Shock Absorbers
100KVA Projection & Spot Welding Machine for Shock Absorbers
100KVA Projection & Spot Welding Machine for Shock Absorbers

More details, please contact!
