Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Specifications
Brand Name :
Xingweihan
Place of Origin :
Sichuan, China
Certification :
CE, RoHS, ISO
MOQ :
1 set
Price :
$21,000-23,000 / set
Payment Terms :
L/C,D/P,D/A,T/T,Western Union
Supply Ability :
100 sets per month
Delivery Time :
25-45 working days
Packaging Details :
wooden box
Product name :
ingle Phase Automatic Resistance Projection Welder Metal Piston Rod Made in China
power (kw) :
100 W
Primary Voltage :
220V/380V/415V
condition :
New
dimensions :
2600*1600*1900mm
Application :
Projection Welding Machine For Piston Rod
Feature :
Automatic Welding Machine
Advantage :
Automated Welding Machine
After Warranty Service :
Video technical support, Online support and Spare parts
After-sales Service Provided :
Free spare parts, Field installation, commissioning and training
Description
Product name: Single Phase Automatic Resistance Projection Welder Metal Piston Rod Made in China
Product Description
Automate Aluminum Metal Single Phase China Made Automatic Resistance Welder Projection Welding Machine Price for Piston Rod

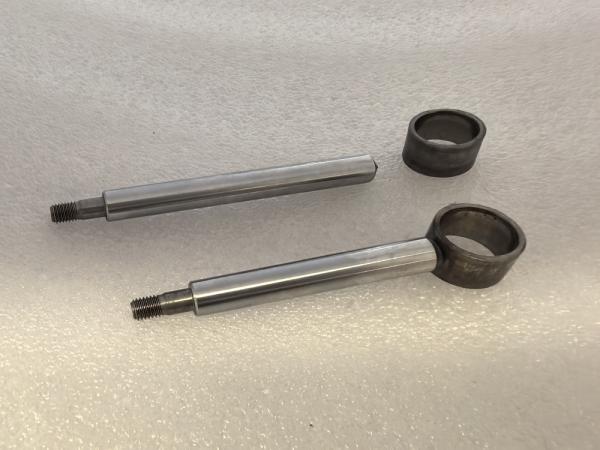

The piston rod automatic welding machine is equipped with an automatic feeding mechanism and a pull ring automatic feeding mechanism. While ensuring the quality and efficiency of the welded parts, we aim to achieve "depersonalization", significantly reduce costs and increase efficiency, improve production capacity, and enhance the quality of the welded parts.

Technical Parameters
Item/Model DN-40 DN-63 D(T)N-80 D(T)N-100 D(T)N-125 D(T)N-160 D(T)N-200
Rated power At 50%(KVA) 40 63 80 100 125 160 200
Rated primary power(V) 380 380 380 380 380 380 380
Secondary Voltage(V) 5.2 6.7 7.9 8.3 8.6 9.1 10.6
Rated frequency(HZ) 50/60 50/60 50/60 50/60 50/60 50/60 50/60
Max.Short Circuit Current(KA) 14 15 16 18 20 28 34
Max. weld power(KVA) 62 86 170 280 300 330 410
Throat(MM) 400 400 400 450 450 450 450
Max.Froce at electrodes(N) 6000 6000 10000 10000 10000 12000 12000
Working stroke(MM) 20 20 30 40 40 50 50
Cooling Water Consumpion 2.5bar(L/min) 6 6 8 8 8 10 10
Electrodes tip(MM) Φ13*45 Φ13*45 Φ16*45 Φ16*45 Φ16*45 Φ20*45 Φ20*45
Arms(MM) Φ50*150 Φ50*150 Φ80*220 Φ80*220 Φ80*220 Φ80*220 Φ80*220
Projection Clamping Plate(MM) 125*125 125*125 200*200 200*200 200*200 200*200 200*200
Max.Welding
Capaciry
A3 steel(MM)		 2.5+2.5 3+3 4+4 4.5+4.5 5+5 5+5 6+6
Main Features
  • High precision welding control: Using servo drive or proportional valve to accurately adjust electrode pressure (± 1% accuracy) to ensure weld consistency.
  • Smart Automation Ready: Features self-loading rod feeders with precision guides or cameras, allowing continuous high-speed welding. This plug-and-play automation cuts production time by half while ensuring consistent quality.
  • Smart Process Control:The HMI (Human-Machine Interface) stores preset welding profiles (including pressure-current-time parameters), enabling instant switching between piston rod specifications. Integrated real-time quality monitoring detects deviations (e.g., abnormal current fluctuations) and triggers automated alerts for immediate corrective action.
  • Strong adaptability and reliability compatible with piston rods of different specifications; Water cooled electrode+high temperature resistant structure, continuous operation without degradation.
  • Safety and maintenance convenience: Integrated air/water pressure sensors, automatic shutdown in case of water shortage or insufficient pressure; Modular design, with minimal electrode replacement and maintenance time.

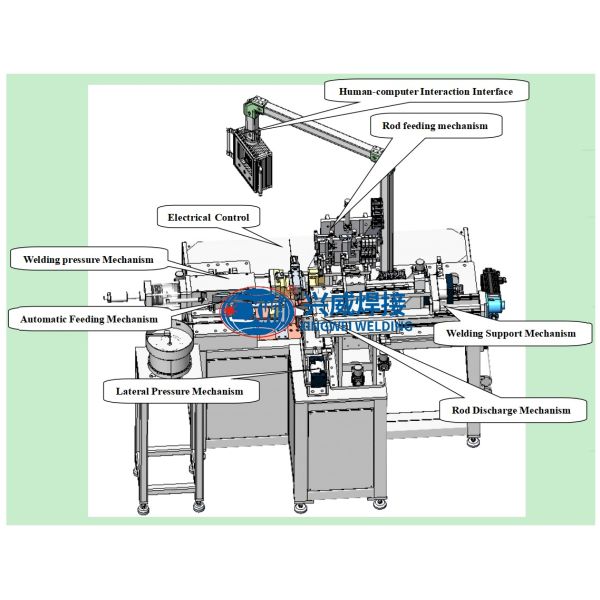

General Structures
Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Detail Images
Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Single Phase Automatic Resistance Projection Welder Metal Piston Rod
Single Phase Automatic Resistance Projection Welder Metal Piston Rod

Our factory can customize according to your requirments. More details, please contact!
