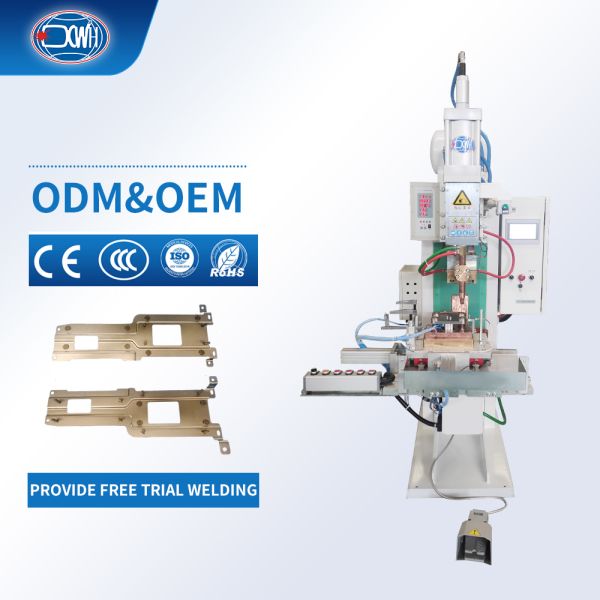

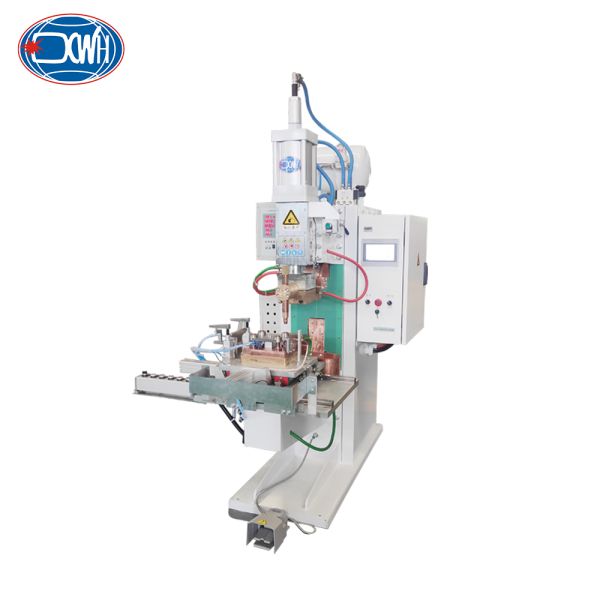

Automatic Projection Welding Machine Stainless Bolt Resistance 250KVA

Product Overview

This automatic projection welding machine is engineered for high-volume fastening of stainless steel bolts, nuts, and studs to metal components. Built around a mid-frequency inverter DC power source operating at 1-4 kHz, it delivers over 90% energy conversion efficiency, cutting power consumption by up to 50% compared to conventional AC welders. The result is faster cycle times, lower grid demand, and stable weld quality across long production runs—an ideal upgrade for manufacturers seeking to reduce per-part cost without compromising joint strength.

With a rated capacity spanning 100-250 KVA and a maximum short-circuit current reaching 45 KA, this welder accommodates steel thicknesses up to 6.0+6.0 mm. Its CE-certified control system supports multi-program storage for different fastener specs, while integrated interfaces for photoelectric sensors and robotic integration allow seamless adoption into automated assembly lines. Whether you weld nuts onto chassis brackets or bolts onto electrical enclosures, this machine provides consistent, repeatable projection welds with minimal thermal distortion.

Key Technical Advantages

Mid-Frequency Inverter Efficiency

The 1-4 kHz MFDC power source converts energy with over 90% efficiency, reducing power consumption by up to 50% versus traditional AC welders. This translates directly into lower operating costs and reduced strain on your facility's electrical infrastructure.

Precision Weld Nugget Control

Stable direct current output ensures uniform nugget formation with deep penetration, minimizing spatter and cold welds. This is particularly effective for projection welding nuts to stainless steel sheets or coated materials, where consistent joint quality is critical.

Fully Programmable Digital Controller

A microprocessor-based controller allows precise adjustment of welding current, time, pressure, and lift height. Multi-program storage accommodates varying bolt and nut specifications, while automatic compensation maintains weld quality despite line voltage fluctuations or minor surface inconsistencies.

Automation-Ready Integration

Designed for Industry 4.0 environments, the welder connects easily to robotic arms, linear actuators, and conveyor systems. Standard interfaces for photoelectric sensors and optional vision guidance ensure accurate part positioning, enabling lights-out operation in high-volume facilities.

Robust Build with Low Maintenance

The compact MFDC transformer generates less heat, extending service life. A closed-loop water cooling system maintains stable continuous operation even under demanding schedules, minimizing downtime and maintenance costs over the machine's lifecycle.

Applications

Working Principle

Technical Specifications

After-Sales and Support

• Warranty — 12-month warranty covering manufacturing defects and workmanship issues, with responsive technical support available throughout the warranty period.
• Free Spare Parts — Commonly used wearing parts supplied at no additional cost to help you maintain uninterrupted production during the initial operational phase.
• Field Installation & Commissioning — Our engineers provide on-site installation, calibration, and trial run support to ensure the machine is fully operational from day one.
• Operator Training — Hands-on training for your production staff covering machine operation, safety procedures, and basic maintenance routines.
• Customization Service — We adapt machine configurations, fixtures, and control parameters to suit your specific bolt, nut, or stud welding requirements.

Frequently Asked Questions

What materials can this projection welding machine handle?

The machine is particularly effective for welding stainless steel bolts, nuts, and studs to stainless steel sheets, mild steel plates, and coated materials. It also works well with galvanized or painted surfaces thanks to the stable DC output that minimizes spatter and ensures consistent joint quality.

Can this welder be integrated into an existing automated production line?

Yes. The machine is designed with automation in mind, offering standard interfaces for photoelectric sensors, robotic arms, and conveyor controls. Optional vision guidance can be added for precise part positioning, enabling full lights-out operation in high-volume environments.

How does the mid-frequency inverter technology reduce energy costs?

Traditional AC welders convert power less efficiently and draw higher peak current from the grid. The 1-4 kHz MFDC inverter operates at over 90% efficiency, consuming up to 50% less energy for the same weld output. This reduces your power bills and lowers the load on your facility's electrical system.

What level of operator skill is required to run this machine?

The fully programmable digital controller simplifies operation—once parameters are set for a specific bolt or nut type, the machine reproduces them automatically. Operators only need basic training on loading/unloading workpieces and selecting the appropriate stored program.

What maintenance is required for long-term reliability?

Routine maintenance includes checking electrode condition, verifying water cooling flow, and inspecting cable connections. The closed-loop cooling system reduces heat stress, and the robust transformer design minimizes wear, keeping maintenance requirements low even under continuous production.

Request Your Welding Solution
