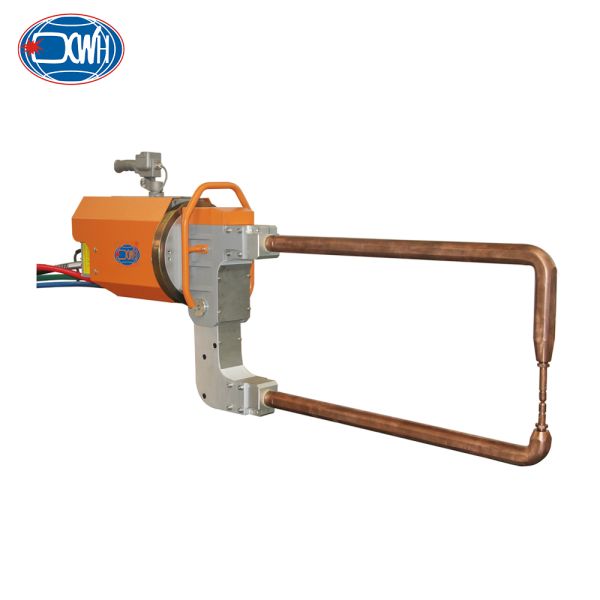

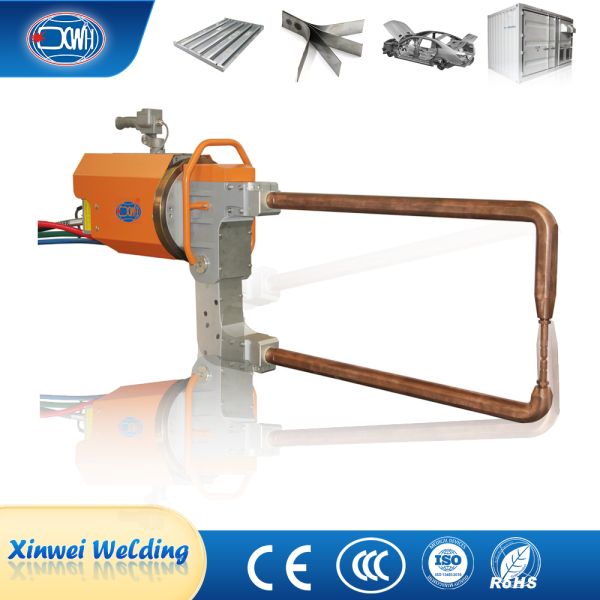

Spot Welding Contact Air Conditioner Portable Spot Welder 16 25 35 50 80KVA
Spot Welding Contact Air Conditioner Portable Spot Welder 16 25 35 50 80KVA
Spot Welding Contact Air Conditioner Portable Spot Welder 16 25 35 50 80KVA
Spot Welding Contact Air Conditioner Portable Spot Welder 16 25 35 50 80KVA
Spot Welding Contact Air Conditioner Portable Spot Welder 16 25 35 50 80KVA
Spot Welding Contact Air Conditioner Portable Spot Welder 16 25 35 50 80KVA
Spot Welding Contact Air Conditioner Portable Spot Welder 16 25 35 50 80KVA
Spot Welding Contact Air Conditioner Portable Spot Welder 16 25 35 50 80KVA
Specifications
Payment Terms :
L/C,D/P,D/A,T/T,Western Union
MOQ :
1 set
max. welding thickness :
2mm+2mm
voltage :
220V/380V/415V/440V
Rated Capacity :
16-63KVA
warranty :
1 Year
Place of Origin :
Sichuan, China
rated duty cycle :
50%
power (kw) :
16/25/35/50/80KVA
Spot Welding Speed :
0.5s / Point
Supply Ability :
100 sets per month
Delivery Time :
25-45 working days
Brand Name :
XWH
Product name :
Spot Welding Contact Air Conditioner Welder Safety Spotter
rated capacity :
35KVA,45KVA,65KVA
Price :
$5,000 / set
MOQ :
1 Set
Description

Portable Resistance Spot Welding Machine for Air Conditioner Sheet Metal Manufacturing

XW portable resistance spot welding machine is designed for air conditioner sheet metal components and HVAC metal fabrication. With flexible operation, stable welding current and water-cooled electrode system, the machine provides reliable welding performance for appliance manufacturers and metal processing factories.

✓ Designed for Air Conditioner Metal Components
✓ Available From 16KVA To 80KVA
✓ Stable Resistance Welding Performance



Welding Challenges in Air Conditioner Manufacturing

Air conditioner manufacturers require reliable welding for sheet metal structures because welded joints influence product strength and assembly accuracy.

✗ Unstable weld quality across production batches
✗ Difficult access to some welding positions
✗ Low manual efficiency with fixed welders
✗ Electrode overheating during continuous work

Portable Welding Solution for Air Conditioner Components

1. Flexible Welding Gun Operation

Operators can bring the welding gun to different positions on large air conditioner panels and frames without repositioning heavy workpieces, improving workflow efficiency.

2. Multiple Power Options

Available in 16KVA, 25KVA, 35KVA, 50KVA and 80KVA configurations to match different material thicknesses and production requirements for HVAC component manufacturing.

3. Water-Cooled System

Water-cooled transformer and electrodes maintain stable operating temperature during continuous production, ensuring consistent welding quality over extended work cycles.

4. Customizable Electrode Configuration

Electrode arms and welding gun configurations can be adapted to specific air conditioner component geometries, from outdoor unit panels to indoor unit support brackets.

How Portable Resistance Welding Improves HVAC Production

Resistance spot welding creates heat through electrical resistance between metal sheets. The process is fast, repeatable and suitable for sheet metal production.

1. Position metal components for welding
2. Apply electrode pressure to the contact points
3. Pass controlled welding current through the joint
4. Form strong and consistent welded joints

XW HVAC Welding Experience

XW develops resistance welding equipment for HVAC and appliance manufacturers. Our engineering team supports production line welding process optimization from application analysis to commissioning.

✓ Sheet metal welding process analysis
✓ Electrode design for specific components
✓ Welding parameter optimization
✓ Fixture customization for production lines
✓ Production efficiency improvement consulting

Applications

Air Conditioner Manufacturing

Outdoor unit panels, indoor unit brackets, metal support frames and structural sheet metal components used in residential and commercial air conditioning systems.

HVAC Equipment

Sheet metal housings, ventilation duct supports, equipment covers and mounting brackets for heating, ventilation and air conditioning equipment.

Appliance Sheet Metal Components

Metal reinforcement parts, structural brackets and enclosure panels for various household and industrial appliance manufacturing applications.

How To Choose Welding Capacity

Power Recommended Application
16KVA Thin sheet components and small brackets
25KVA Small to medium metal parts assembly
35KVA General HVAC sheet metal fabrication
50KVA Medium thickness structural components
80KVA Higher production volume requirements

Machine Advantages

Feature Benefit
Flexible Welding Operation Portable design allows welding different positions without moving large sheet metal assemblies
Multiple Power Options 16KVA to 80KVA models available to match specific material thickness and production needs
Water Cooling System Cooled transformer and electrodes maintain stable performance during continuous operation
Stable Weld Quality Consistent electrode pressure and precise current control for repeatable welding results
Customizable Configuration Electrode arms and welding configurations adapted to different air conditioner components

Technical Specifications

Feature Description
Welding Type Resistance Spot Welding
Application Air Conditioner Sheet Metal
Power Range 16KVA to 80KVA
Cooling Method Water Cooling
Machine Type Portable Type
Electrode Material Copper Electrode
Weldable Material Steel / Galvanized Sheet
Customization Available

Quality Control

✓ Transformer output performance test
✓ Electrode pressure calibration check
✓ Water cooling system flow and leak test
✓ Continuous welding cycle durability verification
✓ Weld sample quality inspection per production batch

Company Profile

Chengdu Xinwei Welding Technology Co., Ltd. operates an 18,000 square meter manufacturing facility with a dedicated R and D team of over 20 engineers. ISO 9001, CE and RoHS certified. Serving customers in more than 30 countries worldwide.

Frequently Asked Questions

Q: What air conditioner parts can this spot welder weld?

It is suitable for sheet metal panels, brackets, frames and other metal components used in air conditioner and HVAC equipment manufacturing.

Q: Which power model should I choose?

The suitable model depends on material thickness, welding points and production requirements. XW engineers can recommend the correct capacity based on your application.

Q: Can it weld galvanized steel sheets?

Yes. Welding parameters can be adjusted according to galvanized steel thickness and specific application requirements.

Q: Can welding electrodes be customized?

Yes. XW provides customized electrode arms and welding configurations for different air conditioner component geometries.

Improve Your HVAC Metal Welding Efficiency

Contact us with your production details and our engineers will recommend the suitable portable welding solution for your air conditioner manufacturing line.

Send us: Metal material | Sheet thickness | Component drawing | Production requirements
