We deeply understand the fatigue inherent in welding operations. That's why the design of this integrated spot welder is centered on the core principle of "People-Oriented" engineering. The spring balancer precisely counteracts most of the welder's own weight, keeping it in a "weightless" suspended state. The lightweight slide rail and pulley system minimizes friction during horizontal movement. Operators no longer need to exert effort to lift the equipment but can guide the welding torch as effortlessly as holding a pen. This ultimate ergonomic design not only greatly enhances operational convenience but also effectively reduces operator muscle fatigue, thereby indirectly ensuring consistent weld quality. This equipment combines the flexible mobility of the welder with reliable resistance spot welding technology, enabling an efficient "machine-to-workpiece" workflow. It is particularly suitable for flexible welding tasks across multiple stations, on large workpieces, or within production lines.

1. Versatile, Wide Coverage: A single unit can cover the working range of multiple stationary welders, significantly reducing equipment investment and floor space while improving overall equipment utilization.

2. Mobile Welder, Enhanced Efficiency: Eliminates the time required to position large workpieces by instead moving the lightweight welder directly to the weld points on the workpiece. This dramatically shortens the work cycle and effectively boosts production efficiency.

3. Easy Installation, Quick Deployment: The included balancer and slide rail system features a simple structure, allowing for straightforward installation and debugging. It enables rapid on-site deployment and a fast transition to productive use.

4. Optimized Design, Lower Energy Consumption: Incorporates an optimized transformer design and standby control circuitry, effectively reducing power consumption during operation and aligning with energy-efficient production principles.

5. Modular Design, Easy Maintenance: The modular design allows for quick and easy replacement of consumable parts (e.g., electrode caps, extension arms), minimizing downtime and lowering maintenance costs.

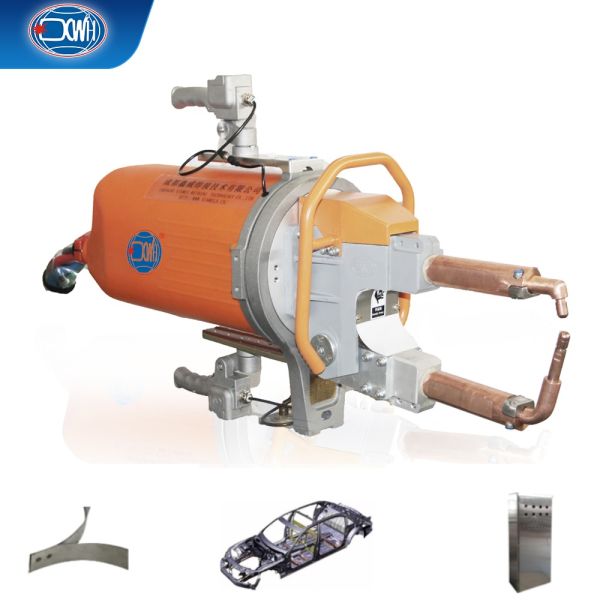

C Type Welding Gun: suitable for welding on vertical plane or near vertical plane. Conventional sheet metal lap joints, such as those in car doors, agricultural machinery coverings, and cabinet shells.

X Type Welding Gun: suitable for welding on horizontal plane or near horizontal plane. Workpieces with limited space on both sides, such as car body side beams and building steel structures.

Welding Arms Can be Customized

Based on your workpiece, you can choose from straight arms, curved arms, extended arms, or welding arms with special angles. We provide comprehensive services from sample analysis to sample arm testing to ensure precise adaptation.

Supporting Facility

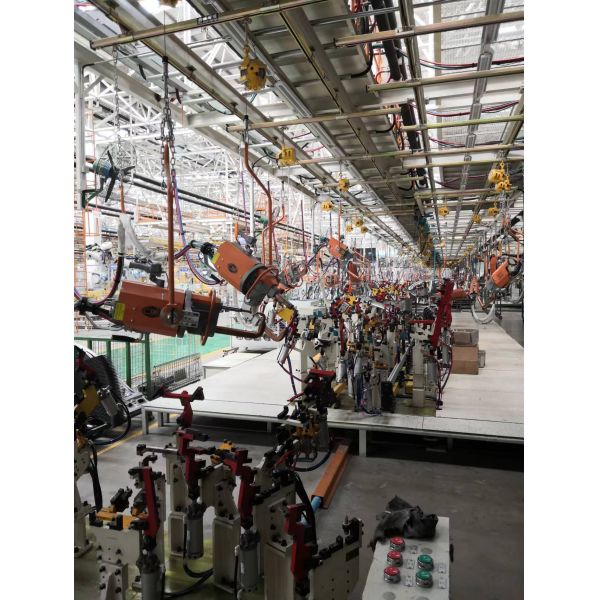

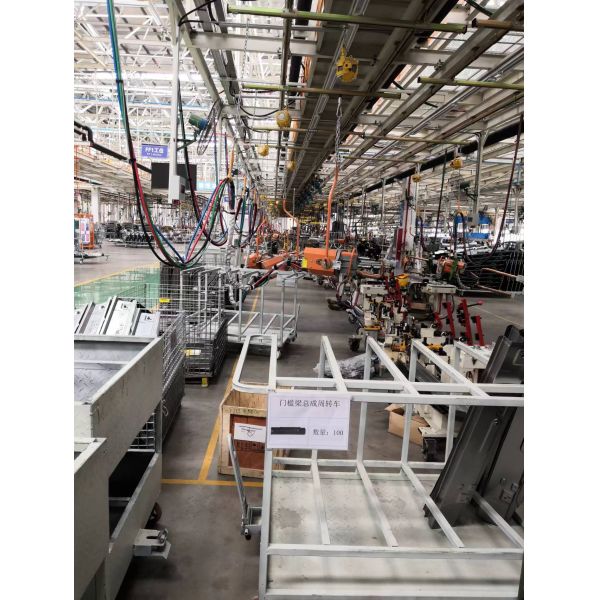

With the combination of a spring balancer and a light rail trolley, full-directional floating operations in the X, Y, Z three-dimensional space can be achieved, including up, down, left, right, front, and back.

360° Full Degree of Freedom Rotation
