85W 1.4 Bar 2 Holes Oil Free Vacuum Pump Mini Silent Portable

Specifications

Brand Name :

XWD

Model Number :

SMK90D

Certification :

CE ETL

Place of Origin :

China

MOQ :

100 PCS

Payment Terms :

L/C, D/A, D/P, T/T

Supply Ability :

1000000 Piece/Year

Delivery Time :

15-30 days

Packaging Details :

Foam cotton and wood box

Model No. :

SMK90D

Net Weight :

0.8kg

Air capacity :

17L/Min

Pressure a rated load :

20 PSI

Power at rated pressure :

85W

Current at rated pressure :

7.3A

Variable output speed :

2100rpm

Nominal voltage :

12VDC

Certificate :

ETL

Warranty :

1 years

Description

Complete solution leader in oilless air pump field

* Oilless operation
* Permanently lubricated bearings

* High performance piston seal

* ETL certificated (Safety)

Model Number	SMK90D
Performance Data
Head configuration	Pressure parallel flow
Nominal voltage	12VDC
Variable output speed	2100 rpm
Max.open air flow	17L/min
Max.rated pressure	20 PSI
Current at rated pressure	7.3A
Power at rated pressure	85W
Electrical Data
Motor insulation class	F
Motor protection	Not included-Customer to integrate into system controller
Power lead wire color,gauge	Green(phase A),black(phase B),red(phase C),22AWG
Hall sensor wire color,gauge	Yellow(+VDC),brown(HS1),orange(HS2),blue(HS3),gray(ground),22AWG
General Data
Operating ambient air temperature	32° to 104°F(0° to 60°C)
Safety certification	ETL

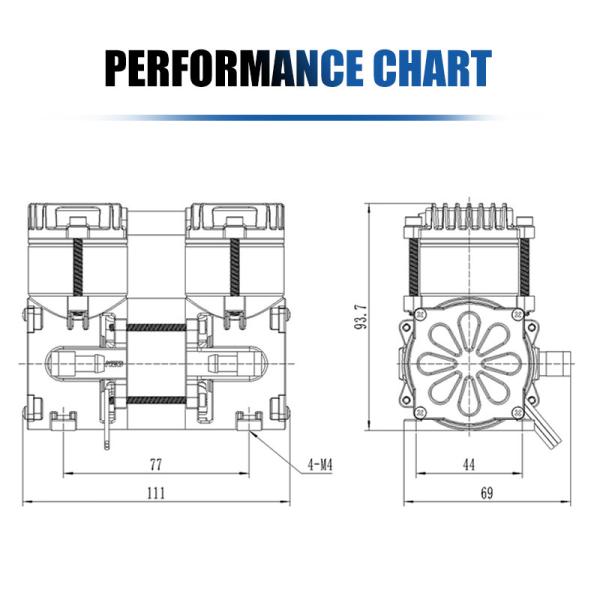

Dimension(LXWXH)	1114493.7mm
Net weight	0.8KG
Application	Portable medical battery pulse oxygen concentrator
