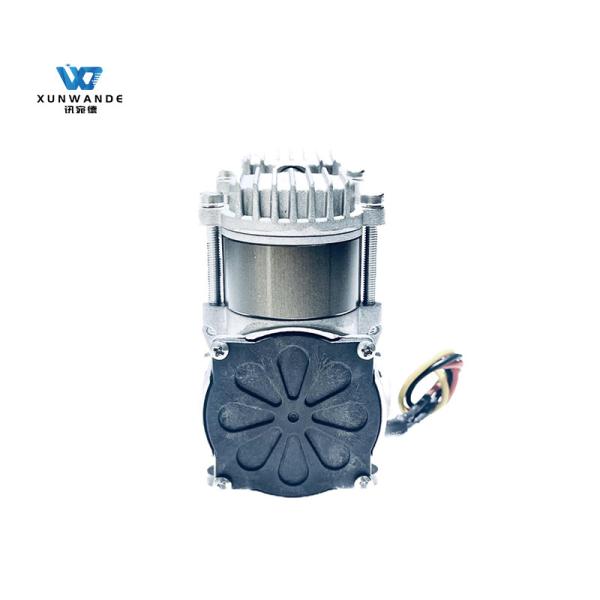

Mini Silent DC12V BLDC Oil Free Air Compressor for Car Use Oxygen Concentrator

Specifications

Brand Name :

XWD

Model Number :

SMK90D12-17

Certification :

CE ETL

Place of Origin :

China

MOQ :

100 PCS

Payment Terms :

L/C, D/A, D/P, T/T

Supply Ability :

1000000 Piece/Year

Delivery Time :

15-30 days

Packaging Details :

Foam cotton and wood box

Model No. :

SMK90D

Net Weight :

0.8kg

Speed :

2100rpm

Max work Pressure :

20PSI(1.4bar)

Power :

85W

Dimension :

111X69X93.7mm

Temperature :

32° to 104°f(0° to 60°c)

Package :

Honeycomb Packaging + Wooden Pallet

Certificate :

ETL

Warranty :

1 years

Description

Mini Silent DC12V BLDC Oil Free Air Compressor for Car Use Oxygen Concentrator

Introducing our Mini Silent DC12V BLDC Oil-Free Air Compressor, designed for versatile applications including car use and oxygen concentrators.Compact yet powerful, this compressor is tailored for on-the-go convenience. Its miniature size ensures it fits seamlessly into your car's interior or any space where portability is paramount.Operating silently, it provides a tranquil environment without compromising on performance. Ideal for use in noise-sensitive settings, you can enjoy efficient air compression without the disturbance of loud machinery.

* Oilless operation
* Permanently lubricated bearings
* High performance piston seal
* Die-cast aluminum components
* Thin wall, hard coated aluminum cylinder

Model Number	SMK90D12-17
Performance Data
Head configuration	Pressure parallel flow
Nominal voltage	12VDC
Variable output speed	2100 rpm
Max.open air flow	17L/min
Max.rated pressure	20 PSI
Current at rated pressure	7.3A
Power at rated pressure	85W
Electrical Data
Motor insulation class	F
Motor protection	Included
Power lead wire color,gauge	Red(phase A),black(phase B),yellow(phase C),16AWG
General Data
Operating ambient air temperature	32° to 104°F(0° to 60°C)
Safety certification	ETL
Dimension(LXWXH)	111X69X93.7mm
Net weight	0.8KG
Application	Car use oxygen concentrator,Medical nebulizer etc.
