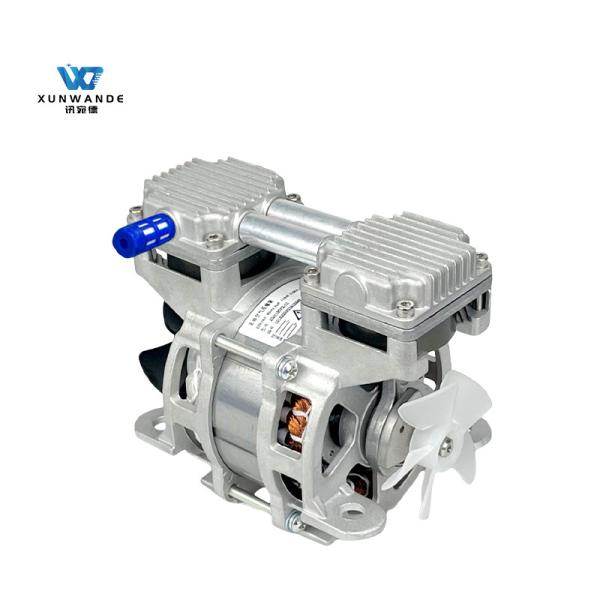

Small One In One Out Large Flow 30L/Min Oil Free Pump For Air Compressor Fast 5L Oxygen Generator
Small One In One Out Large Flow 30L/Min Oil Free Pump For Air Compressor Fast 5L Oxygen Generator
Small One In One Out Large Flow 30L/Min Oil Free Pump For Air Compressor Fast 5L Oxygen Generator
Small One In One Out Large Flow 30L/Min Oil Free Pump For Air Compressor Fast 5L Oxygen Generator
Small One In One Out Large Flow 30L/Min Oil Free Pump For Air Compressor Fast 5L Oxygen Generator
Small One In One Out Large Flow 30L/Min Oil Free Pump For Air Compressor Fast 5L Oxygen Generator
Small One In One Out Large Flow 30L/Min Oil Free Pump For Air Compressor Fast 5L Oxygen Generator
Small One In One Out Large Flow 30L/Min Oil Free Pump For Air Compressor Fast 5L Oxygen Generator
Small One In One Out Large Flow 30L/Min Oil Free Pump For Air Compressor Fast 5L Oxygen Generator
Small One In One Out Large Flow 30L/Min Oil Free Pump For Air Compressor Fast 5L Oxygen Generator
Small One In One Out Large Flow 30L/Min Oil Free Pump For Air Compressor Fast 5L Oxygen Generator
Small One In One Out Large Flow 30L/Min Oil Free Pump For Air Compressor Fast 5L Oxygen Generator
Specifications
Brand Name :
XWD
Model Number :
SMV100P-30
Certification :
CE ETL
Place of Origin :
China
MOQ :
100 PCS
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000000 Piece/Year
Delivery Time :
15-30 days
Packaging Details :
Foam cotton and wood box
Model No. :
SMV100P-30
Net Weight :
2.4kg
Air capacity :
30L/Min
Maximum vacuum degree :
-85kpa
Power at rated pressure :
100W
Current at rated pressure :
1.2A
Variable output speed :
1650rpm
Nominal voltage :
110V/60HZ
Certificate :
ETL
Warranty :
1 years
Description

Complete solution leader in oilless air pump field

* Oilless operation
* Permanently lubricated bearings

* High performance piston seal

* ETL certificated (Safety)

Model Number SMV100P-30
Performance Data
Head configuration Pressure parallel flow Pressure parallel flow
Nominal voltage 110V/60HZ 220V/50HZ
Variable output speed 1650 rpm 1400rpm
Max.open air flow 30L/min 30L/min
Maximum vacuum degree -85kpa -85kpa
Current at rated pressure 1.2A 0.6A
Power at rated pressure 100W 100W
Electrical Data
Motor insulation class B
Motor protection Not included-Customer to integrate into system controller
Power lead wire color,gauge Green(phase A),black(phase B),red(phase C),22AWG
Hall sensor wire color,gauge Yellow(+VDC),brown(HS1),orange(HS2),blue(HS3),gray(ground),22AWG
General Data
Operating ambient air temperature 50° to 104°F(10° to 40°C)
Safety certification ETL

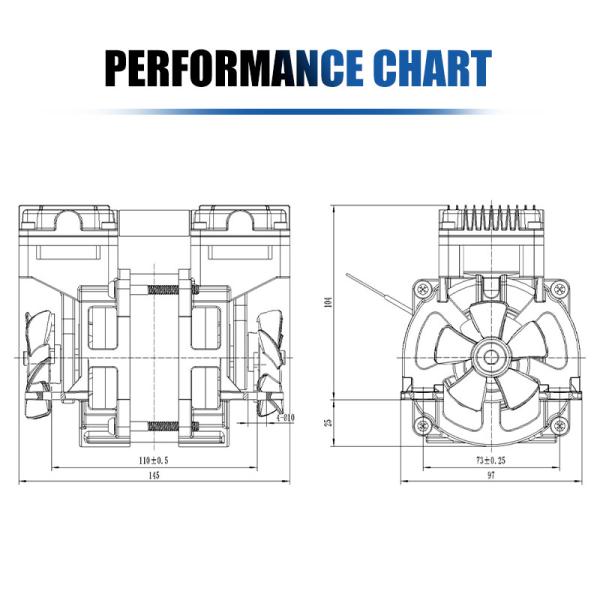

Dimension(LXWXH) 110*73*129mm
Net weight 2.4KG
Application Portable medical battery pulse oxygen concentrator
