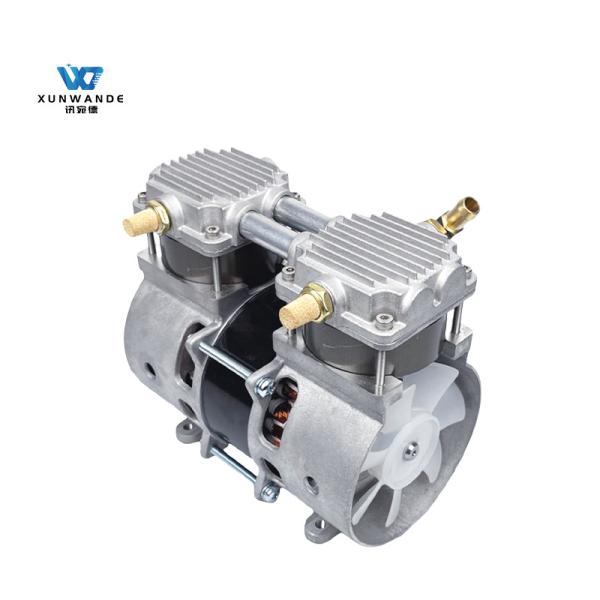

40L/Min 160W oil free vacuum pump Small Silent High Pressure Mini For Medical Use

Specifications

Brand Name :

XWD

Model Number :

SMV160P-40H

Certification :

CE ETL

Place of Origin :

China

MOQ :

100 PCS

Payment Terms :

L/C, D/A, D/P, T/T

Supply Ability :

1000000 Piece/Year

Delivery Time :

15-30 days

Packaging Details :

Foam cotton and wood box

Model No. :

SMV160P-40H

Net Weight :

3.5kg

Air capacity :

40L/Min

Maximum vacuum degree :

-97kpa

Power at rated pressure :

160W

Current at rated pressure :

1.7A

Variable output speed :

1650rpm

Nominal voltage :

110V/60HZ

Certificate :

ETL

Warranty :

1 years

Description

Complete solution leader in oilless air pump field

* Oilless operation
* Permanently lubricated bearings

* High performance piston seal

* ETL certificated (Safety)

Model Number	SMV160P-40H
Performance Data
Head configuration	Pressure parallel flow	Pressure parallel flow
Nominal voltage	110V/60HZ	220V/50HZ
Variable output speed	1650 rpm	1400rpm
Max.open air flow	40L/min	40L/min
Maximum vacuum degree	-97kpa	-97kpa
Current at rated pressure	1.7A	0.85A
Power at rated pressure	160W	160W
Electrical Data
Motor insulation class	B
Motor protection	Not included-Customer to integrate into system controller
Power lead wire color,gauge	Green(phase A),black(phase B),red(phase C),22AWG
Hall sensor wire color,gauge	Yellow(+VDC),brown(HS1),orange(HS2),blue(HS3),gray(ground),22AWG
General Data
Operating ambient air temperature	50° to 104°F(10° to 40°C)
Safety certification	ETL
Dimension(LXWXH)	10570150mm
Net weight	3.5KG
Application	Portable medical battery pulse oxygen concentrator
