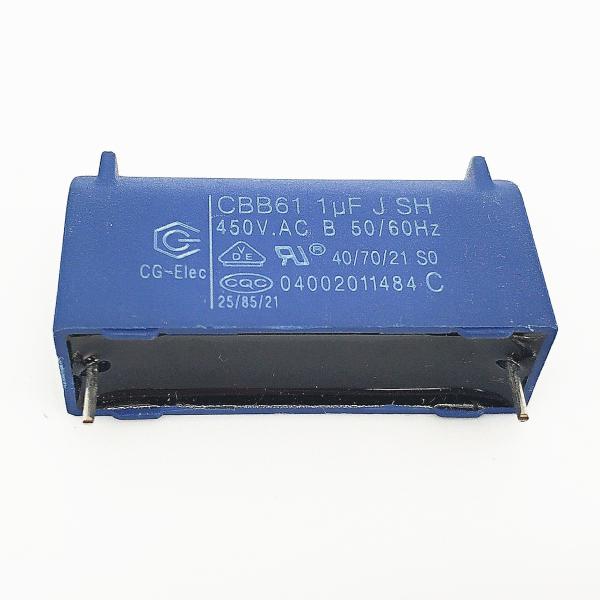

Air Conditioner Run Capacitor CBB61 450V 1UF Film Capacitor Two Pins B-Class roHs
Air Conditioner Run Capacitor CBB61 450V 1UF Film Capacitor Two Pins B-Class roHs
Air Conditioner Run Capacitor CBB61 450V 1UF Film Capacitor Two Pins B-Class roHs
Air Conditioner Run Capacitor CBB61 450V 1UF Film Capacitor Two Pins B-Class roHs
Air Conditioner Run Capacitor CBB61 450V 1UF Film Capacitor Two Pins B-Class roHs
Air Conditioner Run Capacitor CBB61 450V 1UF Film Capacitor Two Pins B-Class roHs
Air Conditioner Run Capacitor CBB61 450V 1UF Film Capacitor Two Pins B-Class roHs
Air Conditioner Run Capacitor CBB61 450V 1UF Film Capacitor Two Pins B-Class roHs
Specifications
Brand Name :
XWD-XD
Model Number :
CBB61 Home AC Capacitor
Certification :
UL / CQC / VDE / ROHS
Place of Origin :
CHINA
MOQ :
10 pieces
Price :
To be negotiated
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10000 Pieces per Day
Delivery Time :
7-20 workdays
Packaging Details :
Carton / 525×275×180mm
Name :
CBB61 Air Conditioner Fan Capacitor
Product code :
XWD-Y105045021108G
Voltage Rating :
450V.AC
Capacitance :
1.0UF
Size :
35.5mm*10.8mm*18.9mm(1-29/64in*27/64in*3/4in)
Supplier Type :
Original Manufacturer / ODM / OEM
Connection Type :
Tinned copper pin ø0.8mm
Shape :
Vertical round bottom blue housing
Description

CBB61 450V 1mfd Air Conditioner Fan Capacitor Tinned Copper Pin 10000 Hours


The air conditioner capacitor starts the various air conditioner motors and keeps them going by building up a store of electricity that can be used to provide continuous power. In this role, it acts as a sort of temporary battery so that there is a constant supply of power to keep the system running smoothly.

Applications

It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.

Basic Info.(Techical Parameters)

Rated frequency

50/60Hz

Rated Voltage

450V.AC

Capacitance Range

1.0UF

Capacitance tolerance

±5%

Withstand voltage test

 2.0Un 2S

Flammability

UL94V-0

Operating temperature range

 -40~+70℃(40/70/21)

Outline Drawing

Air Conditioner Run Capacitor CBB61 450V 1UF Film Capacitor Two Pins B-Class roHsAir Conditioner Run Capacitor CBB61 450V 1UF Film Capacitor Two Pins B-Class roHs

Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery

Air Conditioner Run Capacitor CBB61 450V 1UF Film Capacitor Two Pins B-Class roHs

Workshop and Transport

Air Conditioner Run Capacitor CBB61 450V 1UF Film Capacitor Two Pins B-Class roHs

Air Conditioner Run Capacitor CBB61 450V 1UF Film Capacitor Two Pins B-Class roHs

Why Choose XWD-CG Capacitors?

√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
