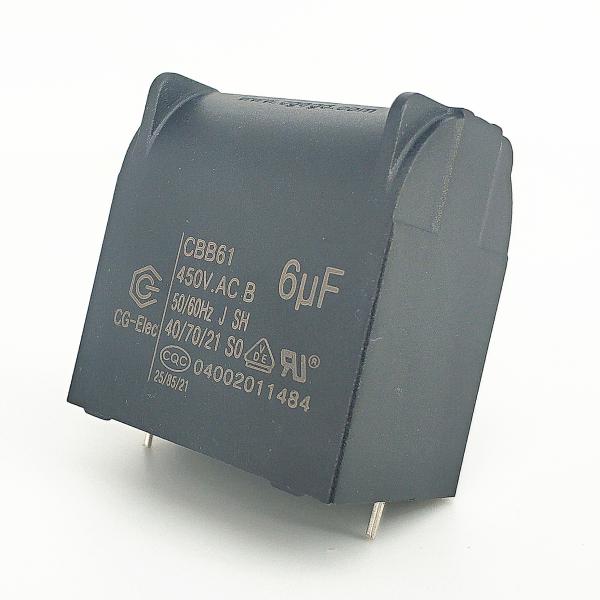

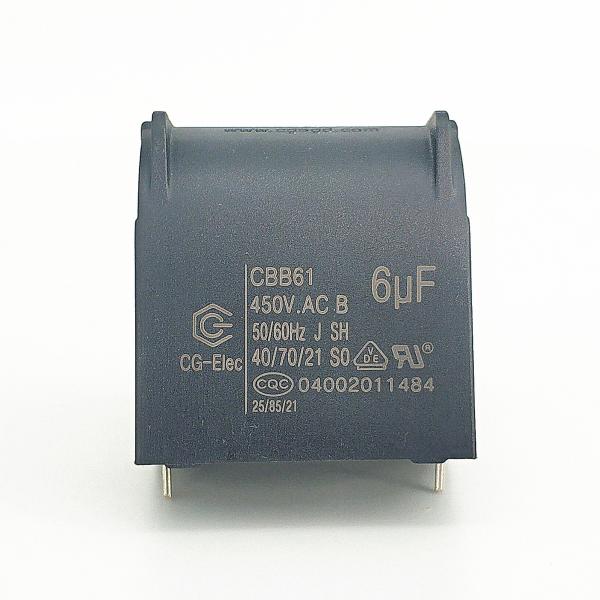

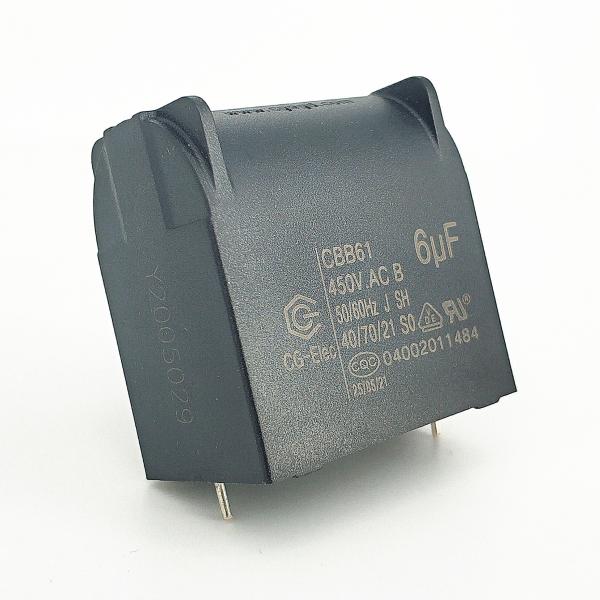

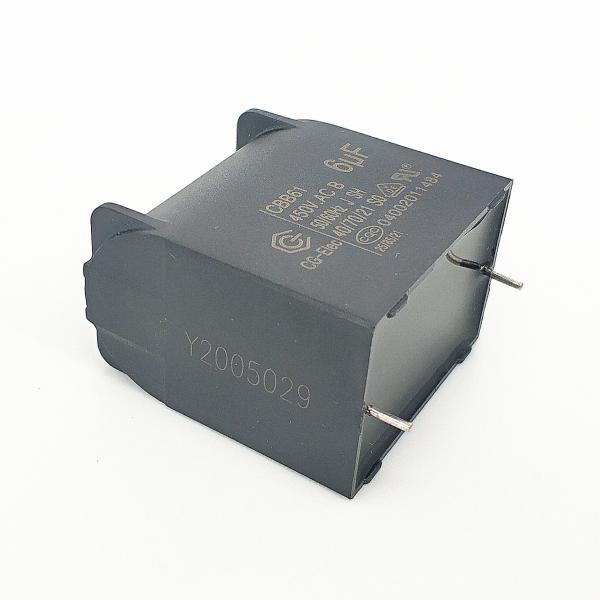

CBB61 450V 6UF Air Conditioner Fan Capacitor Home AC Capacitor 4 pins Black Epoxy
CBB61 450V 6UF Air Conditioner Fan Capacitor Home AC Capacitor 4 pins Black Epoxy
CBB61 450V 6UF Air Conditioner Fan Capacitor Home AC Capacitor 4 pins Black Epoxy
CBB61 450V 6UF Air Conditioner Fan Capacitor Home AC Capacitor 4 pins Black Epoxy
CBB61 450V 6UF Air Conditioner Fan Capacitor Home AC Capacitor 4 pins Black Epoxy
CBB61 450V 6UF Air Conditioner Fan Capacitor Home AC Capacitor 4 pins Black Epoxy
CBB61 450V 6UF Air Conditioner Fan Capacitor Home AC Capacitor 4 pins Black Epoxy
CBB61 450V 6UF Air Conditioner Fan Capacitor Home AC Capacitor 4 pins Black Epoxy
Specifications
Brand Name :
XWD-XD
Model Number :
CBB61 Home AC Capacitor
Certification :
UL / CQC / VDE
Place of Origin :
CHINA
MOQ :
10 pieces
Price :
To be negotiated
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10000 Pieces per Day
Delivery Time :
7-20 workdays
Packaging Details :
Carton / 525×275×180mm
Name :
CBB61 Air Conditioner Fan Capacitor
Product code :
XWD-Y605045021136
Voltage Rating :
450V.AC
Capacitance :
6.0UF
Size :
35.5mm*24mm*37.5mm(1-29/64in*15/16in*1-15/32in)
Supplier Type :
Original Manufacturer / ODM / OEM
Connection Type :
Tinned copper pin ø1.0mm
Shape :
Vertical round bottom black housing
Description

CBB61 450V 6mfd Air Conditioner Fan Capacitor Tinned Copper Pin Black Epoxy


A capacitor is an electronic component that can store electrical charge, and in an air conditioning compressor, the main role of the capacitor is to provide the starting current to the compressor. When the air conditioner is turned on, the capacitor discharges instantaneously, providing a high current to start the compressor. Once the compressor is running normally, the capacitor will stop discharging until it is used again the next time it is turned on.

Applications

It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.

Basic Info.(Techical Parameters)

Rated frequency

50/60Hz

Rated Voltage

450V.AC

Capacitance Range

6.0UF

Capacitance tolerance

±5%

Withstand voltage test

 2.0Un 2S

Flammability

UL94V-0

Operating temperature range

 -40~+70℃(40/70/21)

Outline Drawing

CBB61 450V 6UF Air Conditioner Fan Capacitor Home AC Capacitor 4 pins Black Epoxy

CBB61 450V 6UF Air Conditioner Fan Capacitor Home AC Capacitor 4 pins Black Epoxy

Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery

CBB61 450V 6UF Air Conditioner Fan Capacitor Home AC Capacitor 4 pins Black Epoxy

Workshop and Transport

CBB61 450V 6UF Air Conditioner Fan Capacitor Home AC Capacitor 4 pins Black Epoxy

CBB61 450V 6UF Air Conditioner Fan Capacitor Home AC Capacitor 4 pins Black Epoxy

Why Choose XWD-CG Capacitors?

√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
