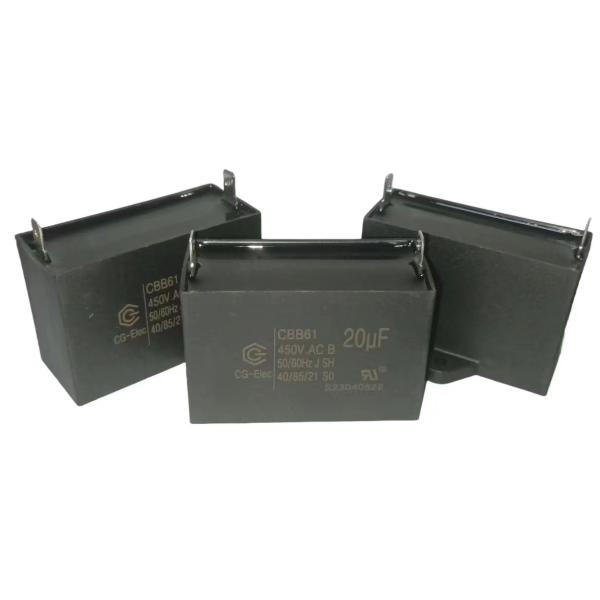

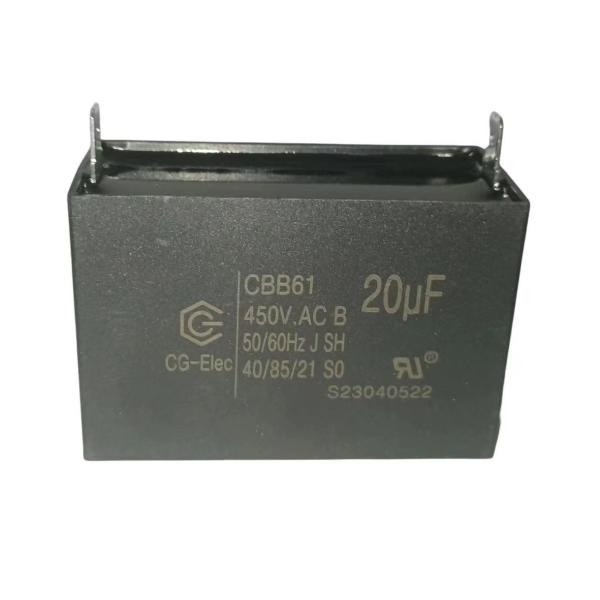

20mfd 450V Air Conditioner Fan Capacitor CBB61 from Original
20mfd 450V Air Conditioner Fan Capacitor CBB61 from Original
20mfd 450V Air Conditioner Fan Capacitor CBB61 from Original
20mfd 450V Air Conditioner Fan Capacitor CBB61 from Original
Specifications
Brand Name :
XWD-CG
Model Number :
Air Conditioner Fan Capacitor
Certification :
UL / CQC
Place of Origin :
CHINA
MOQ :
10 pieces
Price :
To be negotiated
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10000 Pieces per Day
Delivery Time :
7-20 workdays
Packaging Details :
Carton / 525×275×180mm
Name :
Air Conditioner Fan Capacitor
Product code :
XWD206045021103
Voltage Rating :
450V.AC
Capacitance :
20UF
Climatic category :
40/85/21
Applications :
Used For air conditioner Etc.
Installation Type :
Plastic Triangle With Location Hole
Connecn Typetio :
Two Quick-connect Terminals
Description

CBB61 450V 20UF Air Conditioner Fan Capacitor from Original

The air conditioner fan capacitor is a high-quality electrical capacitor designed for air conditioner fan applications. The capacitor features two quick-connect terminals and a tolerance of ±5%, meeting the UL810 reference standard. It can withstand a voltage of 2Un .5s and comes with a plastic triangle with a location hole for easy installation. It is an ideal solution for air conditioner fan runs and control, providing reliable and efficient performance.

Application

Start up and operation of single phase motors for 50 / 60Hz AC power supply.

Advantage

High stability,Good self-healing,High reliability,Insensitivity structure,Cost effective

Basic Info.(Techical Parameters)

Operation temperature range

-40℃～+85℃ ( 40/85/21 )

Rated Voltage

450V.AC

Capacitance Range

20UF

Capacitance tolerance

±5%

Dissipation factor

≤0.002 f=100Hz

Insulation resistance

R≥250MΩ at 100VDC

Flammability

UL94V-0

Outline Drawing(W=2-21/32in,T=1-3/16in,H=1-49/64in)

20mfd 450V Air Conditioner Fan Capacitor CBB61 from Original

Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery

20mfd 450V Air Conditioner Fan Capacitor CBB61 from Original

Packing and Transport

20mfd 450V Air Conditioner Fan Capacitor CBB61 from Original

20mfd 450V Air Conditioner Fan Capacitor CBB61 from Original

Facting Information

Factory Size 30,000-40,000 square meters
Factory Country/Region No.7,East Xinyou Road, Ronggui
Number of Production Lines 10 Automatic Lines
Contract Manufacturing OEM Service Offered / Design Service Offered / Buyer Label Offered
Annual Output Value Above US$50 Million

20mfd 450V Air Conditioner Fan Capacitor CBB61 from Original

Why Choose XWD-CG Capacitors?

√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
