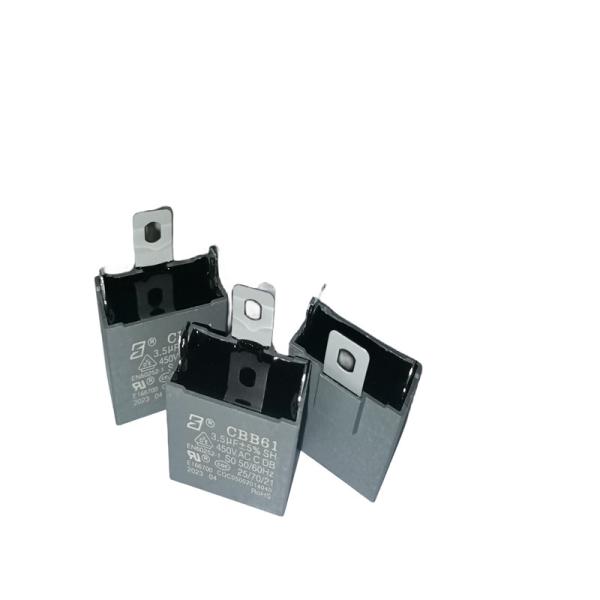

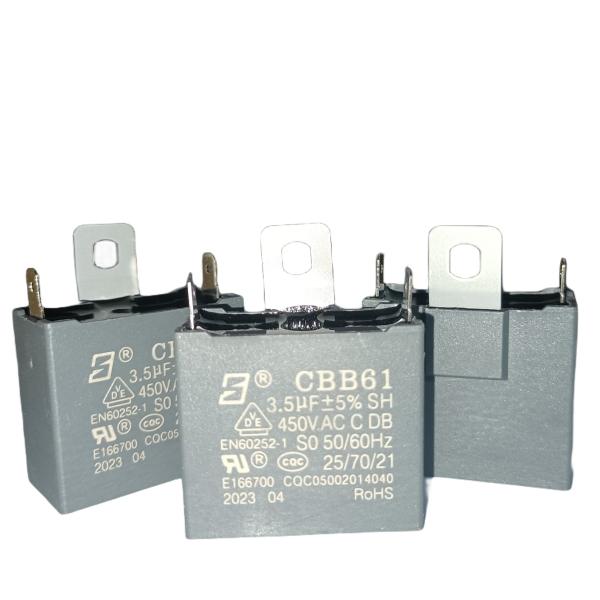

CBB61 Fan Capacitor 450V 3.5UF Film Capacitor RoHS 25 / 70 / 21 Stralght Lug
CBB61 Fan Capacitor 450V 3.5UF Film Capacitor RoHS 25 / 70 / 21 Stralght Lug
CBB61 Fan Capacitor 450V 3.5UF Film Capacitor RoHS 25 / 70 / 21 Stralght Lug
CBB61 Fan Capacitor 450V 3.5UF Film Capacitor RoHS 25 / 70 / 21 Stralght Lug
CBB61 Fan Capacitor 450V 3.5UF Film Capacitor RoHS 25 / 70 / 21 Stralght Lug
CBB61 Fan Capacitor 450V 3.5UF Film Capacitor RoHS 25 / 70 / 21 Stralght Lug
Specifications
Brand Name :
XWD-XD
Model Number :
Air Conditioner Fan Capacitor
Certification :
UL / CQC / VDE
Place of Origin :
CHINA
MOQ :
10 pieces
Price :
To be negotiated
Payment Terms :
T/T, L/C, D/P,
Supply Ability :
10000 Pieces per Day
Delivery Time :
7-20 workdays
Packaging Details :
Carton / 525×275×180mm
Name :
Air Conditioner Fan Capacitor
Product code :
XWD11992-4515
Voltage Rating :
450V.AC
Capacitance :
3.5UF
Operation temperature range :
-40℃～+85℃
Size :
37mm*19.5mm*31mm(1-29/64in*49/64in*1-7/32in)
Connection Type :
Two Quick-connect Terminals
Installationas Type :
Straight iron ear with positioning hole
Description

CBB61 450V 3.5UF Air Conditioner Fan Capacitor Metallized Film Capacitor

Air Conditioner Fan Capacitor is a great choice to ensure their system’s stability and reliability. It can also help reduce the amount of energy consumption, helping to reduce costs. It is easy to install, and can be used in a variety of systems. It is a highly reliable and durable device that ensures a long and trouble-free service life.

Applications

It can also be used in other applications such as refrigerators, freezers, and other cooling systems.

Basic Info.(Techical Parameters)

Operation temperature range

-40℃～+85℃ ( 40/85/21 )

Rated Voltage

450V.AC

Capacitance Range

3.5UF

Capacitance tolerance

±5%

Lifetime

 10000 hours

Flammability

UL94V-0

Outline Drawing(37mm=1-29/64in,19.5mm=49/64in,31mm=1-7/32in)

CBB61 Fan Capacitor 450V 3.5UF Film Capacitor RoHS 25 / 70 / 21 Stralght Lug

Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery

CBB61 Fan Capacitor 450V 3.5UF Film Capacitor RoHS 25 / 70 / 21 Stralght Lug

Workshop and Transport

CBB61 Fan Capacitor 450V 3.5UF Film Capacitor RoHS 25 / 70 / 21 Stralght Lug

CBB61 Fan Capacitor 450V 3.5UF Film Capacitor RoHS 25 / 70 / 21 Stralght Lug

Why Choose XWD-XD Capacitors?

√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
