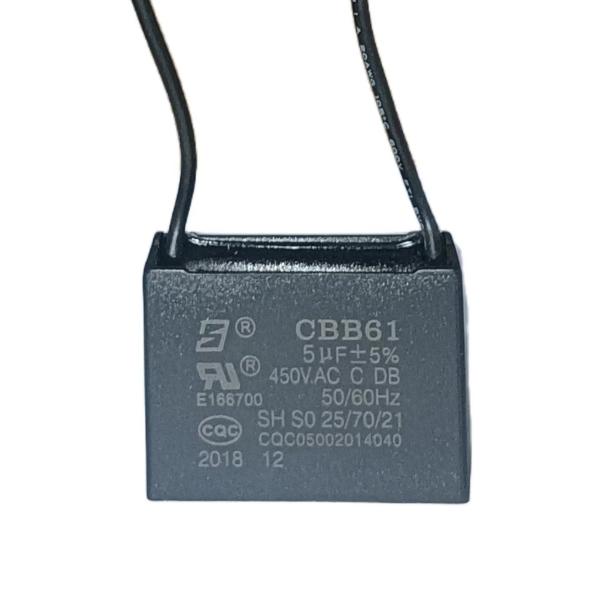

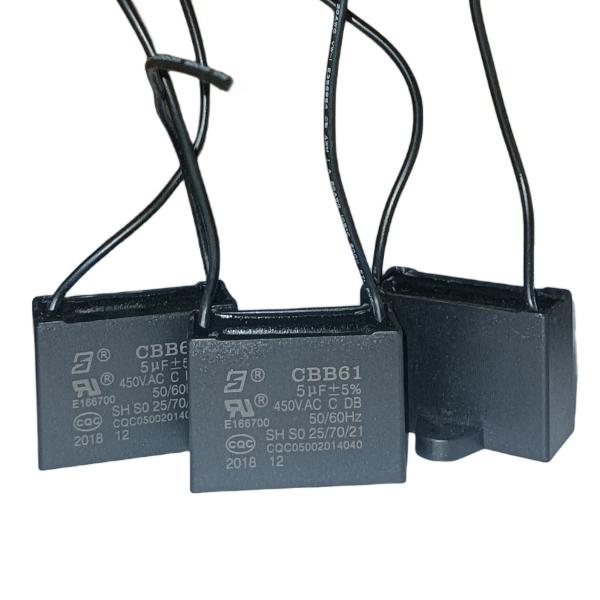

CBB61 450V 5.0mfd 150 Line Length Ceiling Fan Capacitor Plastic Triangles With Location Hole
CBB61 450V 5.0mfd 150 Line Length Ceiling Fan Capacitor Plastic Triangles With Location Hole
CBB61 450V 5.0mfd 150 Line Length Ceiling Fan Capacitor Plastic Triangles With Location Hole
CBB61 450V 5.0mfd 150 Line Length Ceiling Fan Capacitor Plastic Triangles With Location Hole
CBB61 450V 5.0mfd 150 Line Length Ceiling Fan Capacitor Plastic Triangles With Location Hole
CBB61 450V 5.0mfd 150 Line Length Ceiling Fan Capacitor Plastic Triangles With Location Hole
Specifications
Brand Name :
XWD-XD
Model Number :
CBB61 Ceiling Fan Capacitor
Certification :
CQC / UL
Place of Origin :
CHINA
MOQ :
10 pieces
Price :
To be negotiated
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10000 Pieces per Day
Delivery Time :
7-20 workdays
Packaging Details :
Carton / 525×275×180mm
Name :
CBB61 Ceiling Fan Capacitor
Product code :
XWD11992-1092
Voltage Rating :
450V.AC
Capacitance :
5.0UF
Size :
47mm*19.5mm*33mm(1-27/32in*49/64in*1-19/64in)
Supplier Type :
Original Manufacturer / ODM / OEM
Connection Type :
Two PVC Wires
Installation Type :
Plastic Triangles With Location Hole
Description

CBB61 450V 5.0UF 150 Line Length Ceiling Fan Capacitor Plastic Triangles With Location Hole


Ceiling Fan Capacitor can provide excellent performance, reliability and long service life. It also ensures excellent heat dissipation and low temperature rise. It is stable, safe and reliable, and can help reduce the noise and vibration of the motor. It is very easy to install and use, and it has a wide range of applications. It is also cost-effective, and can help you save energy and money.

Applications

Ceiling Fan Capacitor is widely used in many applications, such as air compressor, washing machines, fans, water pumps, range hoods, air conditioner, electric tools, microwave ovens, etc. It is an ideal starting device for AC motor which can provide efficient and stable performance.

Basic Info.(Techical Parameters)

Rated frequency

50/60Hz

Rated Voltage

450V.AC

Capacitance Range

5.0UF

Capacitance tolerance

±5%

Withstand voltage test

 2.0Un 2S

Flammability

UL94V-0

Operating temperature range

 -25~+70℃(25/70/21)

Outline Drawing(47mm=1-27/32in,19.5mm=49/64in,33mm=1-19/64in)

CBB61 450V 5.0mfd 150 Line Length Ceiling Fan Capacitor Plastic Triangles With Location Hole

Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery

CBB61 450V 5.0mfd 150 Line Length Ceiling Fan Capacitor Plastic Triangles With Location Hole

Workshop and Transport

CBB61 450V 5.0mfd 150 Line Length Ceiling Fan Capacitor Plastic Triangles With Location Hole

CBB61 450V 5.0mfd 150 Line Length Ceiling Fan Capacitor Plastic Triangles With Location Hole

Why Choose XWD-XD Capacitors?

√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
