8.0mfd CBB61 450V Max Temp 105℃ Ceiling Fan Capacitor With 100 Line Length
8.0mfd CBB61 450V Max Temp 105℃ Ceiling Fan Capacitor With 100 Line Length
8.0mfd CBB61 450V Max Temp 105℃ Ceiling Fan Capacitor With 100 Line Length
8.0mfd CBB61 450V Max Temp 105℃ Ceiling Fan Capacitor With 100 Line Length
8.0mfd CBB61 450V Max Temp 105℃ Ceiling Fan Capacitor With 100 Line Length
8.0mfd CBB61 450V Max Temp 105℃ Ceiling Fan Capacitor With 100 Line Length
8.0mfd CBB61 450V Max Temp 105℃ Ceiling Fan Capacitor With 100 Line Length
8.0mfd CBB61 450V Max Temp 105℃ Ceiling Fan Capacitor With 100 Line Length
Specifications
Brand Name :
XWD-XD
Model Number :
CBB61 Ceiling Fan Capacitor
Certification :
UL
Place of Origin :
CHINA
MOQ :
10 pieces
Price :
To be negotiated
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10000 Pieces per Day
Delivery Time :
7-20 workdays
Packaging Details :
Carton / 525×275×180mm
Name :
CBB61 Ceiling Fan Capacitor
Product code :
XWD11992-2728
Voltage Rating :
450V.AC
Capacitance :
8UF
Size :
57mm*22mm*35.5mm(2-1/4in*55/64in*1-25/64in)
Supplier Type :
Original Manufacturer / ODM / OEM
Connection Type :
Two PVC Wires
Installation Type :
Plastic triangles with locating holes are on both sides
Description

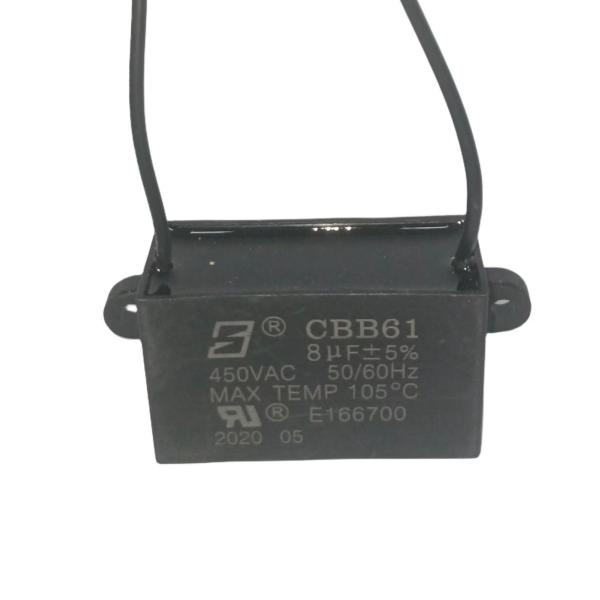

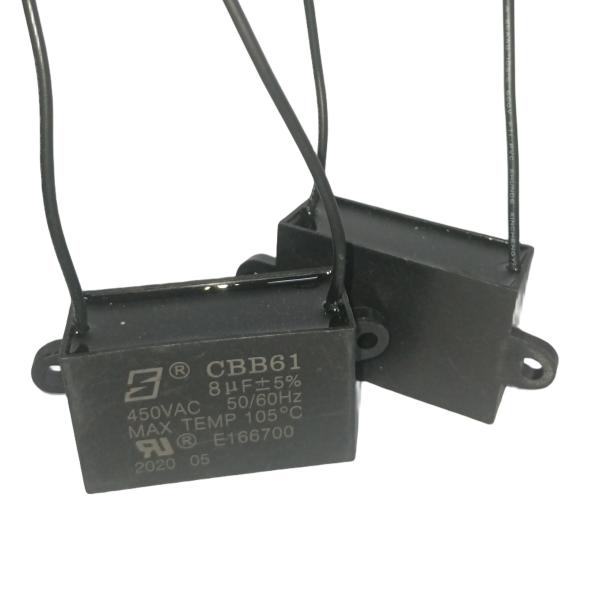

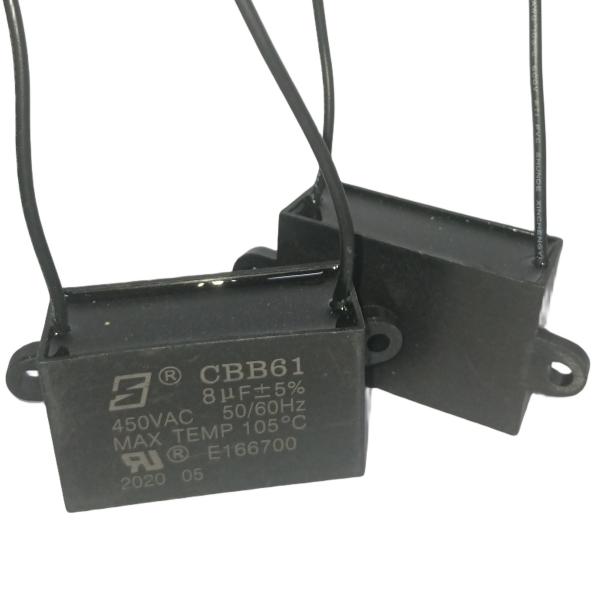

CBB61 450V 8.0UF Max Temp 105℃ Ceiling Fan Capacitor With 100 Line Length


The Ceiling Fan Capacitor is available from original manufacturers, ODM, agency and retailers. It has a size of 57*22*35.5 and a rated voltage of 450VAC. With a capacitance of 8.0uF.

Applications

It is widely used in many applications, such as air compressor, washing machines, fans, water pumps, range hoods, air conditioner, electric tools, microwave ovens, et.

Basic Info.(Techical Parameters)

Rated frequency

50/60Hz

Rated Voltage

450V.AC

Capacitance Range

8.0UF

Capacitance tolerance

±5%

Withstand voltage test

 1.5Un 2S

Flammability

UL94V-0

Operating temperature range

 Max Temp 105℃

Outline Drawing(57mm=2-1/4in,22mm=55/64in,35.5mm=1-25/64in)

8.0mfd CBB61 450V Max Temp 105℃ Ceiling Fan Capacitor With 100 Line Length

Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery

8.0mfd CBB61 450V Max Temp 105℃ Ceiling Fan Capacitor With 100 Line Length

Workshop and Transport

8.0mfd CBB61 450V Max Temp 105℃ Ceiling Fan Capacitor With 100 Line Length

8.0mfd CBB61 450V Max Temp 105℃ Ceiling Fan Capacitor With 100 Line Length

Why Choose XWD-XD Capacitors?

√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
