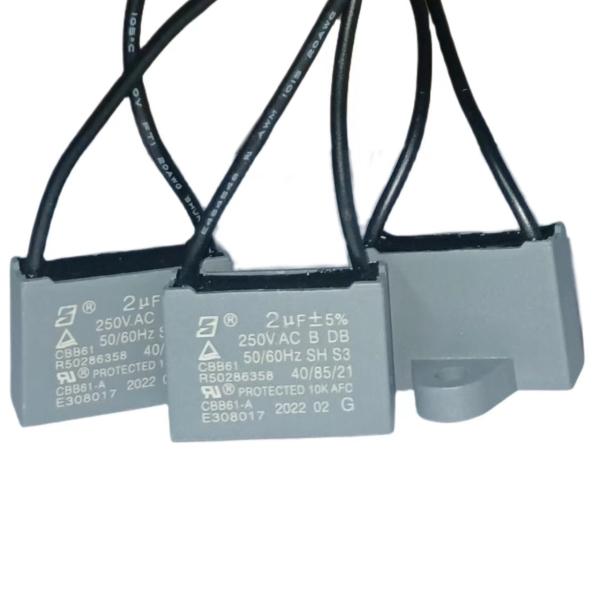

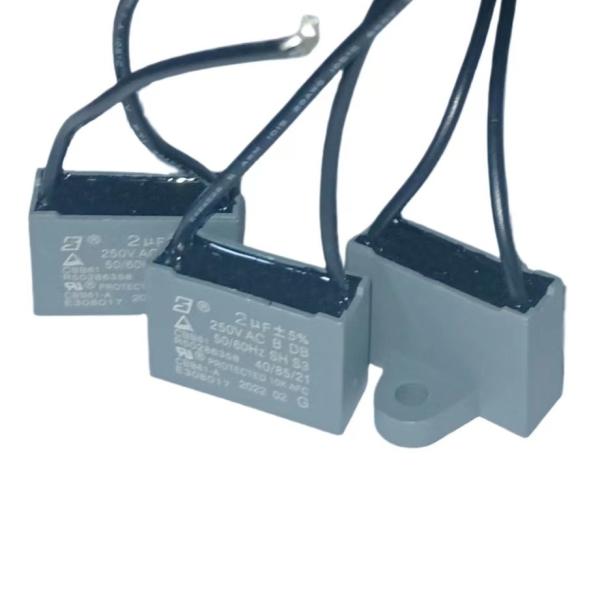

CBB61 250V 2.0mfd 85 Line Length Ceiling Fan Capacitor With Plastic Triangles
CBB61 250V 2.0mfd 85 Line Length Ceiling Fan Capacitor With Plastic Triangles
CBB61 250V 2.0mfd 85 Line Length Ceiling Fan Capacitor With Plastic Triangles
CBB61 250V 2.0mfd 85 Line Length Ceiling Fan Capacitor With Plastic Triangles
CBB61 250V 2.0mfd 85 Line Length Ceiling Fan Capacitor With Plastic Triangles
CBB61 250V 2.0mfd 85 Line Length Ceiling Fan Capacitor With Plastic Triangles
CBB61 250V 2.0mfd 85 Line Length Ceiling Fan Capacitor With Plastic Triangles
CBB61 250V 2.0mfd 85 Line Length Ceiling Fan Capacitor With Plastic Triangles
Specifications
Brand Name :
XWD-XD
Model Number :
CBB61 Ceiling Fan Capacitor
Certification :
UL
Place of Origin :
CHINA
MOQ :
10 pieces
Price :
To be negotiated
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10000 Pieces per Day
Delivery Time :
7-20 workdays
Packaging Details :
Carton / 525×275×180mm
Name :
CBB61 Ceiling Fan Capacitor
Product code :
XWD11992-4230
Voltage Rating :
250V.AC
Capacitance :
2.0UF
Size :
32mm*11mm*21mm(1-17/64in*7/16in*53/64in)
Supplier Type :
Original Manufacturer / ODM / OEM
Connection Type :
Two PVC wires (UL 20#)
Installation Type :
Plastic Triangle With Location Hole
Description

CBB61 250V 2.0UF 85 Line Length Ceiling Fan Capacitor With Plastic Triangles

The CBB61 Ceiling Fan Capacitor is a versatile, popular Ceiling Fan Capacitor designed to be used in fans. It is made in CHINA and certified by UL. It has a size of 32*11*21 and an operating temperature range from -40℃ to +70℃, making it suitable for a variety of applications. It has a ±5% tolerance.

Applications

It has the advantages of high voltage resistance, strong ability to withstand large current impact and high safety.Used for fans, air conditioners, water pumps, etc.

Basic Info.(Techical Parameters)

Rated frequency

50/60Hz

Rated Voltage

250V.AC

Capacitance Range

2.0UF

Capacitance tolerance

±5%

Withstand voltage test

 1.75Un 2S

Flammability

UL94V-0

Operating temperature range

 -40℃~70℃(40/70/21)

Outline Drawing(32mm=1-17/64in,11mm=7/16in,21mm=53/64in)

CBB61 250V 2.0mfd 85 Line Length Ceiling Fan Capacitor With Plastic Triangles

Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery

CBB61 250V 2.0mfd 85 Line Length Ceiling Fan Capacitor With Plastic Triangles

Workshop and Transport

CBB61 250V 2.0mfd 85 Line Length Ceiling Fan Capacitor With Plastic Triangles

CBB61 250V 2.0mfd 85 Line Length Ceiling Fan Capacitor With Plastic Triangles

Why Choose XWD-XD Capacitors?

√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
