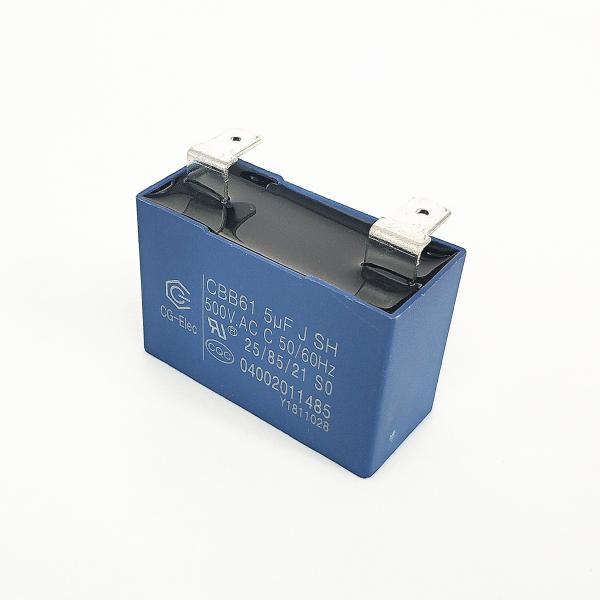

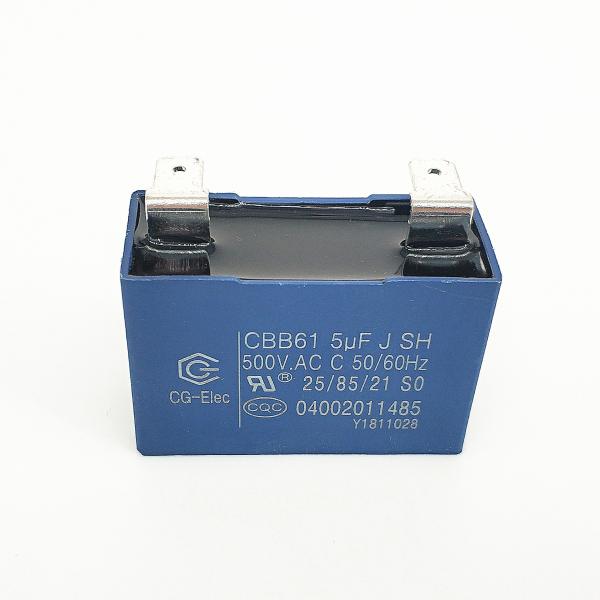

CBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting Feet
CBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting Feet
CBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting Feet
CBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting Feet
CBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting Feet
CBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting Feet
CBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting Feet
CBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting Feet
Specifications
Brand Name :
XWD-CG
Model Number :
CBB61
Certification :
UL / CQC
Place of Origin :
CHINA
MOQ :
10 pieces
Price :
To be negotiated
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10000 Pieces per Day
Delivery Time :
7-20 workdays
Packaging Details :
Carton / 525×275×180mm
Name :
Cooker Hood Capacitor
Product code :
XWDY505050021111G
Voltage Rating :
500V.AC
Capacitance :
5.0UF
Size :
48mm*21mm*32mm(1-57/64in*53/64in*1-17/64in)
Supplier Type :
Original Manufacturer / ODM / OEM
Connection Type :
Two Quick-connect Terminals
Installation Type :
Plastic Triangle With Location Hole
Description

CBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting Feet


The function of range hood capacitor 1. The basic function of range hood capacitor is to make the motor operate normally and ensure that the electric energy generated by the motor can be distributed normally. 2. Capacitors can also prevent the motor from overheating and being damaged due to instantaneous overload. Therefore, maintaining the capacitor is very important to extend the service life of the range hood. 3. The capacitor of the range hood can also reduce the starting current of the motor, reduce the impact on the circuit and electrical appliances, and prevent the impact of the motor.

Applications

Range hood operating capacitors are used in various range hoods.It can meet the user's needs for efficient and economical oil removal under different levels of kitchen fumes.

Basic Info.(Techical Parameters)

Rated frequency

50/60Hz

Rated Voltage

500V.AC

Capacitance Range

5.0UF

Capacitance tolerance

±5%

Withstand voltage test

2.0Un 2S

Flammability

UL94V-0

Operating temperature rang

 -25℃~+85℃(25/85/21)


Outline Drawing
CBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting FeetCBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting FeetCBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting Feet


Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery

CBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting Feet


Workshop and Transport
CBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting Feet
CBB61 500V 5.0mfd Cooker Hood Capacitor Black Epoxy Blue PBT Case With Mounting Feet

Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
