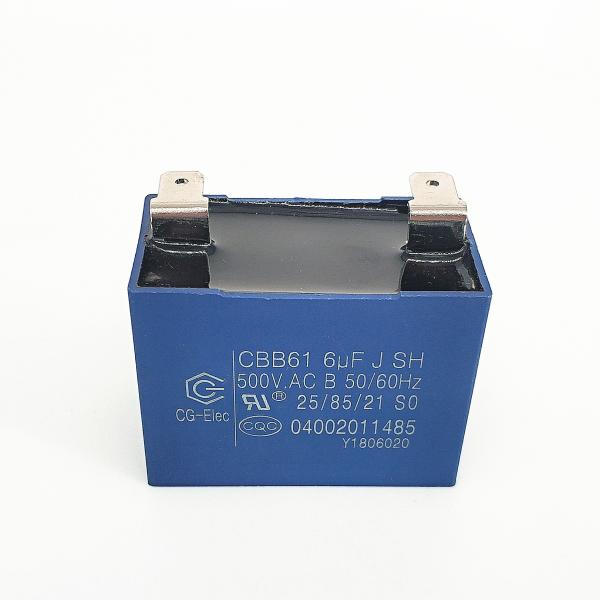

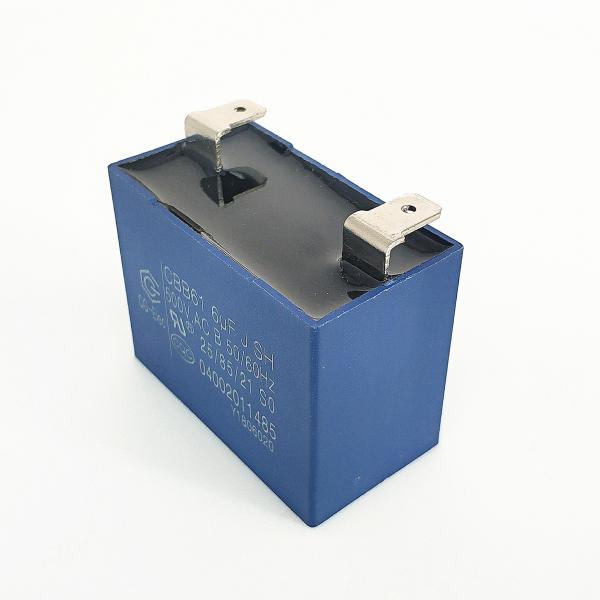

CBB61 500V 6.0mfd Cooker Hood Capacitor With Bend Quick Connector
CBB61 500V 6.0mfd Cooker Hood Capacitor With Bend Quick Connector
CBB61 500V 6.0mfd Cooker Hood Capacitor With Bend Quick Connector
CBB61 500V 6.0mfd Cooker Hood Capacitor With Bend Quick Connector
CBB61 500V 6.0mfd Cooker Hood Capacitor With Bend Quick Connector
CBB61 500V 6.0mfd Cooker Hood Capacitor With Bend Quick Connector
Specifications
Brand Name :
XWD-CG
Model Number :
CBB61
Certification :
UL / CQC
Place of Origin :
CHINA
MOQ :
10 pieces
Price :
To be negotiated
Payment Terms :
T/T, L/C, D/P
Supply Ability :
10000 Pieces per Day
Delivery Time :
7-20 workdays
Packaging Details :
Carton / 525×275×180mm
Name :
Cooker Hood Capacitor
Product code :
XWD605050021112G
Voltage Rating :
500V.AC
Capacitance :
6.0UF
Size :
48mm*26mm*36.5mm(1-57/64in*1-1/32in*1-7/16in)
Supplier Type :
Original Manufacturer / ODM / OEM
Connection Type :
Two Quick-connect Terminals
Color :
Blue
Description

CBB61 500V 6.0mfd Cooker Hood Capacitor With Bend Quick Connector


The range hood starting capacitor is an important part of the range hood motor. It stores electrical energy and increases the rated voltage during the starting process. The starting capacitor is a capacitor that consists of two metal layers that are charged separately and separated by a medium.

Applications

Range hood operating capacitors are used in various range hoods.

Basic Info.(Techical Parameters)

Rated frequency

50/60Hz

Rated Voltage

500V.AC

Capacitance Range

6.0UF

Capacitance tolerance

±5%

Withstand voltage test

2.0Un 2S

Flammability

UL94V-0

Operating temperature rang

 -25℃~+85℃(25/85/21)


Outline Drawing
CBB61 500V 6.0mfd Cooker Hood Capacitor With Bend Quick ConnectorCBB61 500V 6.0mfd Cooker Hood Capacitor With Bend Quick Connector


Manufacturing Process Flow

1 Coating | 2 Cutting | 3 Winding | 4 Heat treatment | 5 Spring metal | 6 Voltage cleaning | 7 Middle inspection

8 Welding | 9 Assembling | 10 Pour epoxy | 11 Final inspection | 12 Marking | 13 Packing | 14 Delivery

CBB61 500V 6.0mfd Cooker Hood Capacitor With Bend Quick Connector


Workshop and Transport
CBB61 500V 6.0mfd Cooker Hood Capacitor With Bend Quick Connector
CBB61 500V 6.0mfd Cooker Hood Capacitor With Bend Quick Connector

Why Choose XWD-CG Capacitors?
√ One of the largest metalized polypropylene film capacitor manufacturers in China;

√ Fast lead time due to fully automatic production and vertical raw materials supply;

√ With world-class lab center, strong R&D research and self-owned film metallization technology;

√ Highly consistent quality products by strictly adhering to ISO and IATF16949;

√ Proudly work with top brands in appliances as well as the leading power and new energy customers.
