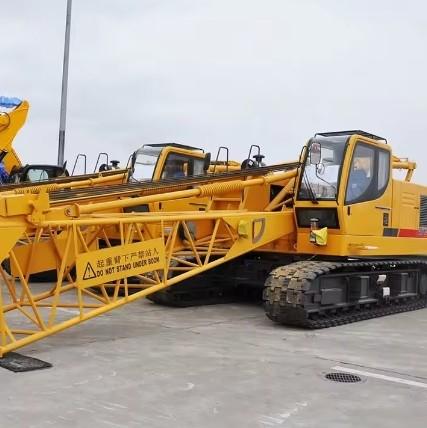

XGC55T 55 Ton Telescopic Boom Crawler Crane Second Hand 155kw
XGC55T 55 Ton Telescopic Boom Crawler Crane Second Hand 155kw
XGC55T 55 Ton Telescopic Boom Crawler Crane Second Hand 155kw
XGC55T 55 Ton Telescopic Boom Crawler Crane Second Hand 155kw
XGC55T 55 Ton Telescopic Boom Crawler Crane Second Hand 155kw
XGC55T 55 Ton Telescopic Boom Crawler Crane Second Hand 155kw
Specifications
Brand Name :
XGC
Model Number :
XGC55
Certification :
EPA、CE
Place of Origin :
Place of Origin
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
10000
Delivery Time :
7-10days
Packaging Details :
frame
Rated Loading Capacity :
50 Ton
Max. Lifting Height :
52m
Engine Brand :
IMPORTED
Core Components :
Pressure vessel, Motor, Bearing, Gear, Pump, Gearbox, Engine, PLC
Weight (KG) :
46300 kg
Engine power :
155kw
Description

55 Ton Foldable Telescopic Boom Truck Mounted Crane For Narrow Working QUY50 XGC55

Product Description

The XGC55 crawler crane is a new generation of crawler crane product successfully developed by QUY55 crawler crane. While inheriting the advantages of the old products, the new generation pays more attention to improving the performance, operating efficiency, convenience for disassembly and transportation, and comfort of operation. The system is mature and reliable, and the safety devices are complete. It is equipped with a self-erecting function, main winch quick release function, one key switch function, an engine cold start device, a winch monitoring system, a hydraulic high-pressure bypass filter system, and an electronic level gauge, anti-lightning system, travel commutation function, the main boom catwalk and other advanced technology, all aspects of performance are superior to the domestic counterparts.

Parameters

Items Unit Parameter value
Performance parameters *
Max. rated lifting load of main boom (t) 55
Max. rated lifting load of fixed jib (t) 11.4
Max. rated lifting load of luffing jib (t) —
Max. lifting load moment (t.m) 203.5
Max. lifting load of tower jib (t) —
Max. rated lifting load of boom single pulley (t) 6
Max. rated lifting load of special jib (t) —
Size *
Main boom length (m) 13~52
Main boom luffing angle (°) -3~80
Fixed jib length (m) 7~16
Tower jib length (m) —
Max. size of single unit for transport (L×W×H) (m) 12.04×3.45×3.36
Installation angle of fixed jib (°) 10,30
Special jib length (m) —
Speed *
Max. single line speed of hoist system (m/min) 125
Max. single line speed of main luffing system (m/min) 87/78
Max. single line speed of jib luffing system (m/min) —
Max. slewing speed (r/min) 2.45/2.2
Max. travel speed (km/h) 1.37/1.22
Gradeability (%) 30
Average ground pressure (MPa) 0.06
Max. single line speed of tower jib luffing system (m/min) —
Max. single line speed of SL luffing system (m/min) —
Engine *
Model - SC7H210.1G3/QSB6.7
Engine power (kW) 155/153
Emission - National III stage/Europe III
Mass *
Crane overall mass (t) 46.3(Main hook,13m boom)
Max. weight of single unit for transport (t) 28.6
