Mobile Video Under Vehicle Surveillance System with Network
Mobile Video Under Vehicle Surveillance System with Network
Mobile Video Under Vehicle Surveillance System with Network
Mobile Video Under Vehicle Surveillance System with Network
Mobile Video Under Vehicle Surveillance System with Network
Mobile Video Under Vehicle Surveillance System with Network
Mobile Video Under Vehicle Surveillance System with Network
Mobile Video Under Vehicle Surveillance System with Network
Specifications
Place of Origin :
China
Brand Name :
SECUPLUS
Certification :
CE, ISO, FCC, Rohs
Model Number :
SPV-3300
MOQ :
1
Price :
Negotiable
Packaging Details :
3 packages in wooden packing
Delivery Time :
30 days
Payment Terms :
TT advance
Supply Ability :
50 sets per month
Description

Mobile Video Under Vehicle Surveillance System with Network

Embedded Screening Part and Controller

Camera:Sensor: line scans CCD
Resolution: 5000*2048 pixels
Power Supply: 24VDC,3A
Illumination: LED
Power Supply: 24VDC,150W
Size: 1200mm x 350mm
Operating Temperature Range: -20 degree to +70 degree

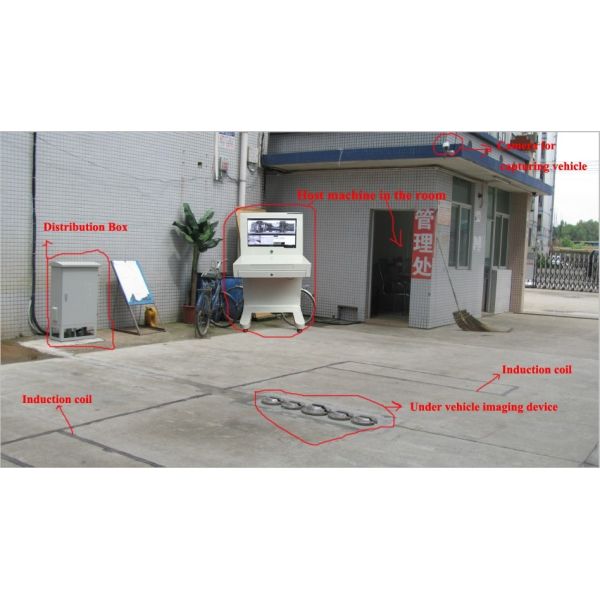

Input: 2 channels induction coil
Output: 1 Channel switch type 12 VDC
Communication port: RS485,Ethernet(Optional)
Operating Temperature: -10'c to 55'c

System Host

●Brand: Grantech (SYM76941VGGA)

●CPU: Intel(R)Celeron(R)CPU

E3400@2.6GHz 2.59 GHz

●Memory:2G( optional 4G)

●Graphics:512M

●Hard Disk:SATA2 Hard Disk 500G

●Dual LAN (At least one Intel Gigabit)

●USB2.0 (Up to 2 pieces)

●Monitor: 22inch LCD, resolution up to 1920*1080

●Scene Video Record: 4 channel, Compression algorithm of scene video: H264

Features:

●Multi entrance management model, management, and

statistics of entering and exiting vehicles

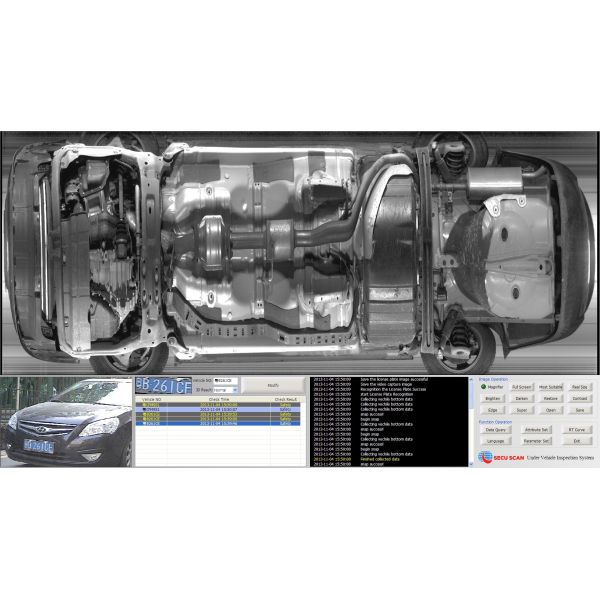

●Auto digital line scan, high-resolution undercarriage imaging.

●High automation, easy to be used

●Applicable to variety of vehicles, wide vision.

●Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.

●Undercarriage image can be stored, retrieved, searched or compared with other images.

●Avariety of image processing methods: enlarge, stretching and cutting.

●(Optional)ALPR-Automatic License Plate Recognition and RFID technology. associative storage of various vehicle information and undercarriage images.

Mobile Video Under Vehicle Surveillance System with Network

Mobile Video Under Vehicle Surveillance System with Network

Mobile Video Under Vehicle Surveillance System with Network

Mobile Video Under Vehicle Surveillance System with Network
