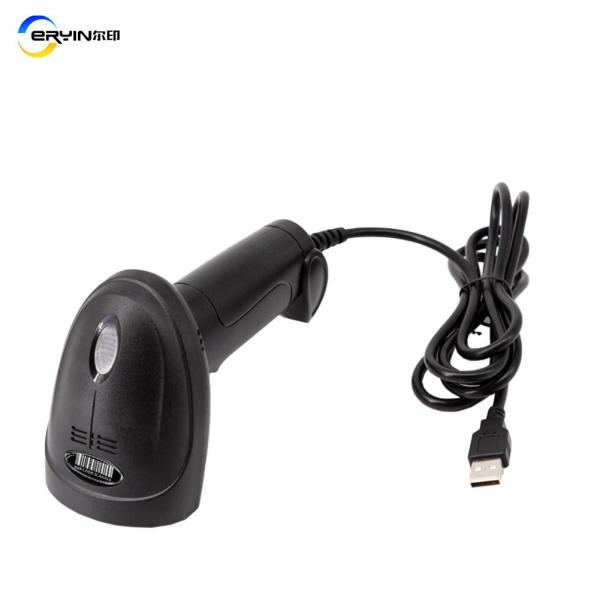

160mm*66mm*90mm U11-C Wired Barcode Scanner 1D Handfree USB Interface with Base Stand
160mm*66mm*90mm U11-C Wired Barcode Scanner 1D Handfree USB Interface with Base Stand
160mm*66mm*90mm U11-C Wired Barcode Scanner 1D Handfree USB Interface with Base Stand
160mm*66mm*90mm U11-C Wired Barcode Scanner 1D Handfree USB Interface with Base Stand
160mm*66mm*90mm U11-C Wired Barcode Scanner 1D Handfree USB Interface with Base Stand
160mm*66mm*90mm U11-C Wired Barcode Scanner 1D Handfree USB Interface with Base Stand
160mm*66mm*90mm U11-C Wired Barcode Scanner 1D Handfree USB Interface with Base Stand
160mm*66mm*90mm U11-C Wired Barcode Scanner 1D Handfree USB Interface with Base Stand
160mm*66mm*90mm U11-C Wired Barcode Scanner 1D Handfree USB Interface with Base Stand
160mm*66mm*90mm U11-C Wired Barcode Scanner 1D Handfree USB Interface with Base Stand
160mm*66mm*90mm U11-C Wired Barcode Scanner 1D Handfree USB Interface with Base Stand
160mm*66mm*90mm U11-C Wired Barcode Scanner 1D Handfree USB Interface with Base Stand
Specifications
Private Mold :
NO
Products Status :
Stock
Type :
Barcode Scanner
Scan Element Type :
CCD
Colour Depth :
32 Bit
Interface Type :
usb
Max Paper Size :
A4 Size
Optical Resolution :
≥4mil
Scan Speed :
300M/S
Brand Name :
Eryin
Place of Origin :
Fujian, China
Warranty(Year) :
1-Year
After-sales Service :
Return and Replacement
Software development kit (SDK) :
Yes
color :
Black
scanning speed :
300 times / sec
Prompt mode :
Buzzer LED
weight :
173.3g (Net weight); 233.5g (Gross Weight).
Dimensions :
160mm*66mm*90mm
Material :
ABS+PC
Cable standards :
Straight Line: 1.6m
The type of light source :
Red led
voltage :
5V
Operating current :
400mA
Quiescent current :
36mA
MOQ :
1 Piece
Price :
$8.50/pieces 200-499 pieces
Description
Product Paramenters
Performance Characteristics
The type of light source
Red led
Scanning speed
300times/second
Scan accuracy
≥4mil

Read depth of field
EAN-13 60mm-160mm (13mil)
Code39 50mm-80mm (5mil 10 bytes).
CODE128 30mm-180mm (20mil 16 bytes).
Code39 40mm-90mm (6.67mil 7 bytes).
elevation
55°
Angle
55°

Decoding capability
1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar, Interleaved 2 of 5, ITF-6, ITF-14, ISBN, ISSN, MSI-Plessey, GS1
Databar, GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey, Matrix 2 of 5
Supported interfaces
Printer USB port
Prompt mode
Buzzer LED
Scan mode
Manual Solid
Physical parameters
Dimensions
Length× width× height: 160mm×66mm×90mm
weight
173.3g (Net weight); 233.5g (Gross Weight).
Material
ABS+PC
Cable standards
Straight Line: 1.6m
Electrical parameters
voltage
5V
Operating current
400mA
Quiescent current
36mA
Environment parameters
Operating temperature
0℃-45℃
Storage temperature
-20℃-60℃
humidity
Relative humidity 5%-95% (non-condensing)
Ambient brightness
Max.5,000 Lux (fluorescent)
Seismic resistance
It can withstand an aerial drop of 1.5m
