H07V-K (NYAF) 450/750V 1x10mm2 class 5 copper Extra Flexible Single Core PVC Wire for PLC Panel Internal Link
H07V-K (NYAF) 450/750V 1x10mm2 class 5 copper Extra Flexible Single Core PVC Wire for PLC Panel Internal Link
Specifications
Model Number :
RV/ZC-RV
Price :
Negotiation
Jacket: :
PVC Jacket
Certification :
CE, 3C，ISO 9001:2015，ISO 14001:2005
MOQ :
2000 meters
Delivery Time :
10~15 days
Outer sheath color: :
NA
Payment Terms :
L/C,T/T
MOQ: :
2000 Meters
Insulation color :
as per request
Product Name: :
House Wiring
Supply Ability :
5000km
Model Number: :
H07V-K (NYAF) 450/750V 1x10mm2 class 5 copper Extra Flexible Single Core PVC Wire for PLC Panel Internal Link
Brand Name :
Zhenglan cable
Packaging Details :

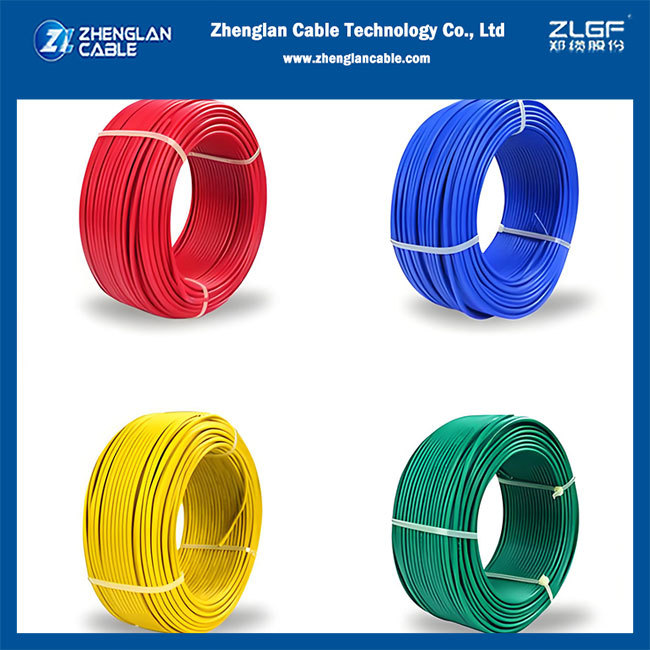

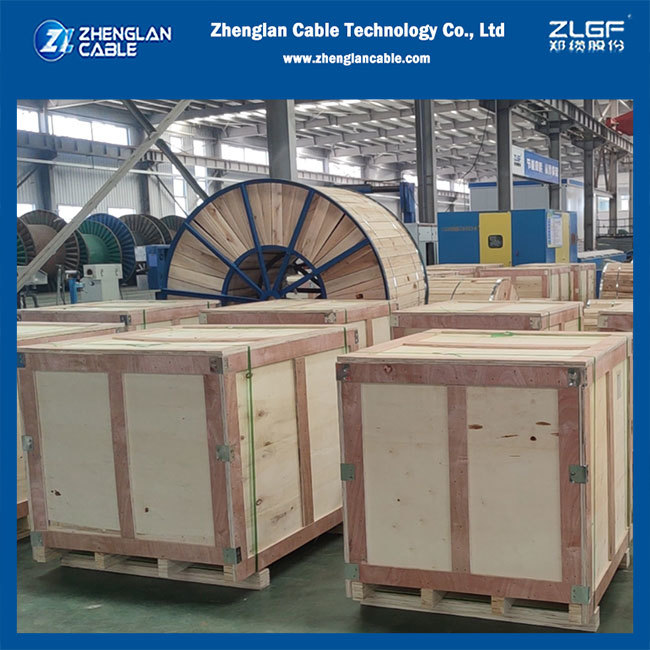

100m/roll, with wooden box, as customer's request.
Place of Origin :
Henan, China
Description

10mm² H07V-K is the sweet spot for control-circuit returns and relay wiring inside enclosures. Class 5 stranding bends by hand and holds shape—no spring-back like solid wire. We supply it in 100m coils with 12-color options for Spanish panel assemblers and Chilean solar BOS vendors.

Key Differences from 16mm²:

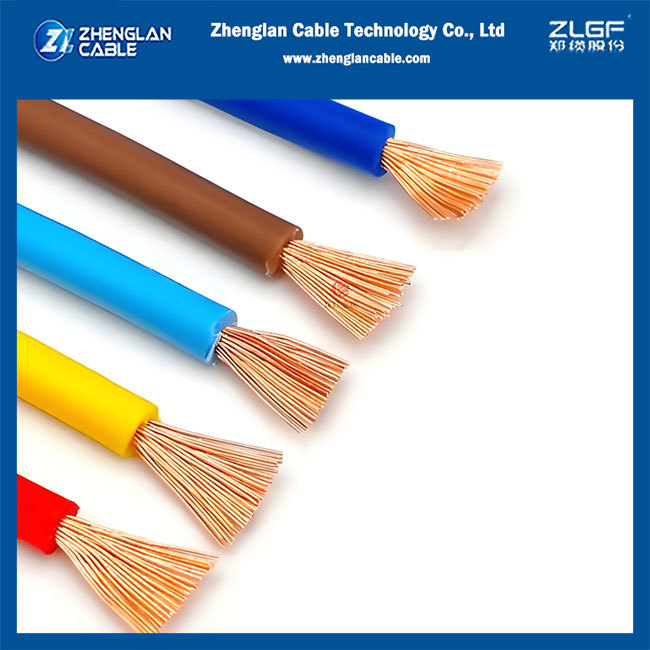

· Conductor: Class 5 fine-stranded, 84×0.40mm (10mm²)

· DC resistance: ≤1.83 Ω/km @20°C

· Diameter: 5.5–6.5mm (noticeably thinner, easier to dress in tight panels)

· Weight: 115–125 kg/km

· Current capacity: ~57A (free air)

· More wires per drum = lower unit cost for large panel-building projects

Technical Data:

· Rated voltage: 450/750V

· Insulation: PVC, 0.8mm thickness

· Test voltage: 2500V AC

· Operating temp: -15°C to +70°C

· Flame retardant: IEC 60332-1

· Standard: IEC 60227-5 / H07V-K

Manufacturing Strength:

Our factory produces NYAF on dedicated fine-wire stranding lines that maintain consistent lay length and tension, critical for achieving the flexibility that panel builders demand. Every coil is tested for continuity and insulation resistance before packing.

Application Scenarios:

Control circuit wiring, inter-panel communication cables, relay and timer connections, instrument transformer secondary wiring, and low-power DC control systems inside enclosures. The thin profile makes it ideal for high-density terminal blocks where space is at a premium.

H07V-K (NYAF) 450/750V 1x10mm2 class 5 copper Extra Flexible Single Core PVC Wire for PLC Panel Internal Link


H07V-K (NYAF) 450/750V 1x10mm2 class 5 copper Extra Flexible Single Core PVC Wire for PLC Panel Internal Link

H07V-K (NYAF) 450/750V 1x10mm2 class 5 copper Extra Flexible Single Core PVC Wire for PLC Panel Internal Link

Manufacturing Strength

Our factory uses 99.9% oxygen-free copper rods and premium PVC compound with consistent extrusion thickness. Every batch undergoes spark testing, conductor resistance testing, and flame retardancy verification. With 15+ years of export experience to Europe, Africa, and Latin America, we understand the documentation and certification requirements of different markets.
