Earth wire Green, Green/Yellow H07V-R 450/750V CU/PVC 25mm2 IEC60227

Application

Earth wire Green, Green/Yellow H07V-R 450/750V CU/PVC 25mm2 IEC60227 are used to Connect the metal casing or other metal parts of the electrical equipment to the ground. In this way, once the electrical equipment has a leakage, short circuit or other faults, the grounding wire can quickly conduct the fault current into the ground.

Cable Construction

Conductor: Class 2 stranded copper according to EN 60228.

Insulation: PVC .

Nominal Voltage : Uo / U 450 / 750V

Temperature Range : -30°C to +70°C

Minimum Bending Radius :

Cable diameter ≤ 8 mm: 4 x outer diameter

Approx. diameter > 8 to 12 mm: 5 x outer diameter

Approx. diameter > 12 mm: 6 x outer diameter

Test Voltage: 2500V

Earth wire Green, Green/Yellow H07V-R 450/750V CU/PVC 25mm2 IEC60227​ Technical data sheet

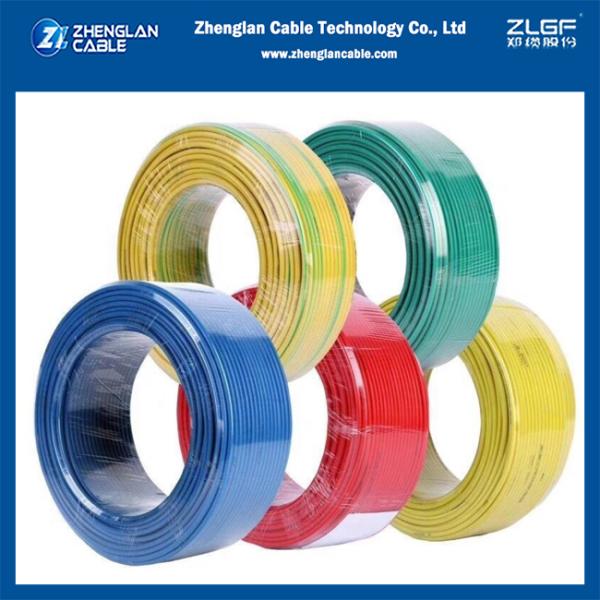

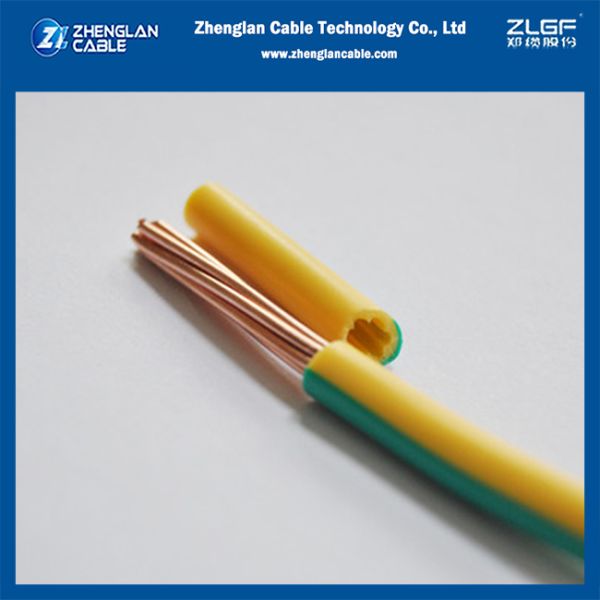

Earth wire Green, Green/Yellow H07V-R 450/750V CU/PVC 25mm2 IEC60227 reference images:

FAQ
Is your company a factory or a trade company?
Factory, more than 20 years in China
How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7 days. The samples will be sent to you via express and arrive in 3~7 days. You can use your own express account or prepay us if you do not have an account.
What are your payment terms?
We normally accept T/T 30% deposit, 70% balance before delivery as the main payment terms, and other payment can also be negotiated. Trade assurance on is also available.
What’s the delivery time?
Sample order needs 3~5 days. Formal order depends on the quantity. Usually it needs 7-30 days after get your payment.
What is your MOQ?
Generally it is 5000m.
