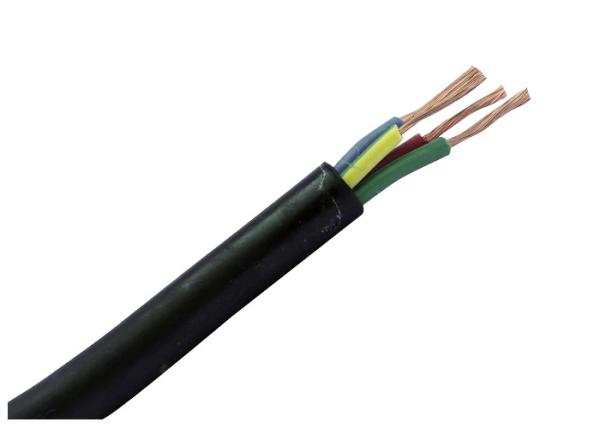

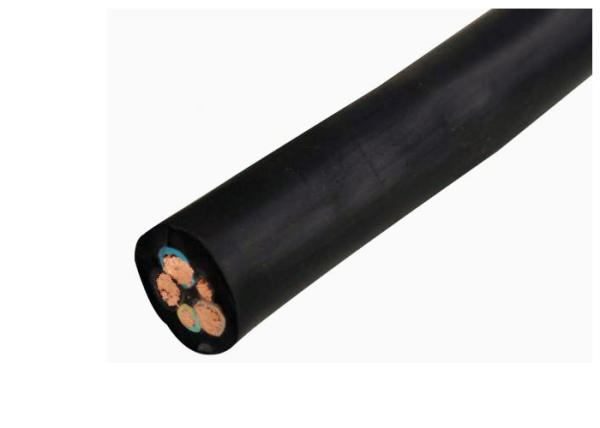

Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F
Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F
Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F
Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F
Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F
Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F
Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F
Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F
Specifications
Brand Name :
QINGDAO YICABLE CABLE
Certification :
CE/KEMA/CCC/TUV
Place of Origin :
China
MOQ :
1000m
Price :
USD 0.4 To 10.5 per Meter
Supply Ability :
8KM per Day
Delivery Time :
10-15 Days
Packaging Details :
Wooden Case
Voltage :
300/300V
Size :
0.3mm2 or 0.5mm2
Conducotor :
Flexible Copper
Insualtion :
Rubber
Sheathed :
Rubber
Place Of Origin :
Shanghai
Description

Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F

Construction:

Conductor: Flexible Class 5 Copper Conductor

Insualtion: Rubber Sheath

Sheath: Rubber Sheath

Application :


This flexible power cable can be installed either as a fixed or mobile cable under adverse conditions such as in oily, acidic or alkaline environment

Insulation Color:


Single-Core: Black,
2-Core: Brown & Black,
3-Core: Brown, Blue & Green/Yellow
4-Core: Brown, Blue, Black & Green/Yellow
5-Core: Brown, Blue, Black, Grey & Green/Yellow

Voltage Class:300/500V

Rated Temperature: Continuous working temperature under 70°C is allowed for the conductor

Standard: CCC is according with IEC60245-4 standard

CE is according with the EMC regulations of 2004/108/EC (low voltage procedures) the provisions of CE

Conductor Material: Stranded flexible fine twisted copper wire

Insulation Structure:Rubber or EPR

Core Wire Type: Centralized accordant

Sheath Material:Rubber or Neoprene

Application: This middle duty rubber cable is applied to the power connecting cable of electrical equipment and small electric tools

Package: Soft packing of a knitted woven cloth, carton, wooden plate or iron plate

Cross-Sectional
Area mm2		 Number diameter of core Overall Diameter Max.D.C resistance
of at 20℃
MΩ/km		 Approx Weight
(kg/km)
min max
2x0.3 16/0.15 4.3 5.8 69.2 71.2 30 31.5
2x0.5 28/0.15 4.8 6.4 39 40.1 43 45.5
3x0.3 16/0.15 4.6 6.1 69.2 71.2 36 38.5
3x0.5 28/0.15 5.1 6.7 39 40.1 74 77

Class 5 Copper Conducotor Rubber Sheathed Cable YCW Cable H07RN-F
