Specifications
Type :
COB
Origin :
Mainland China

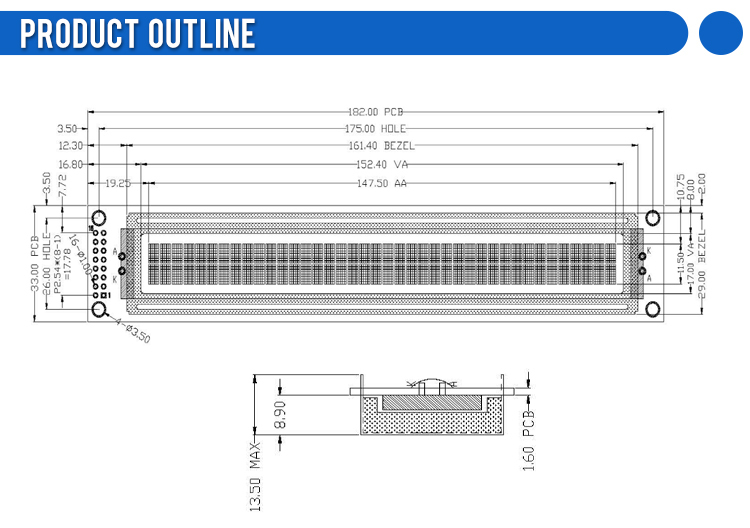

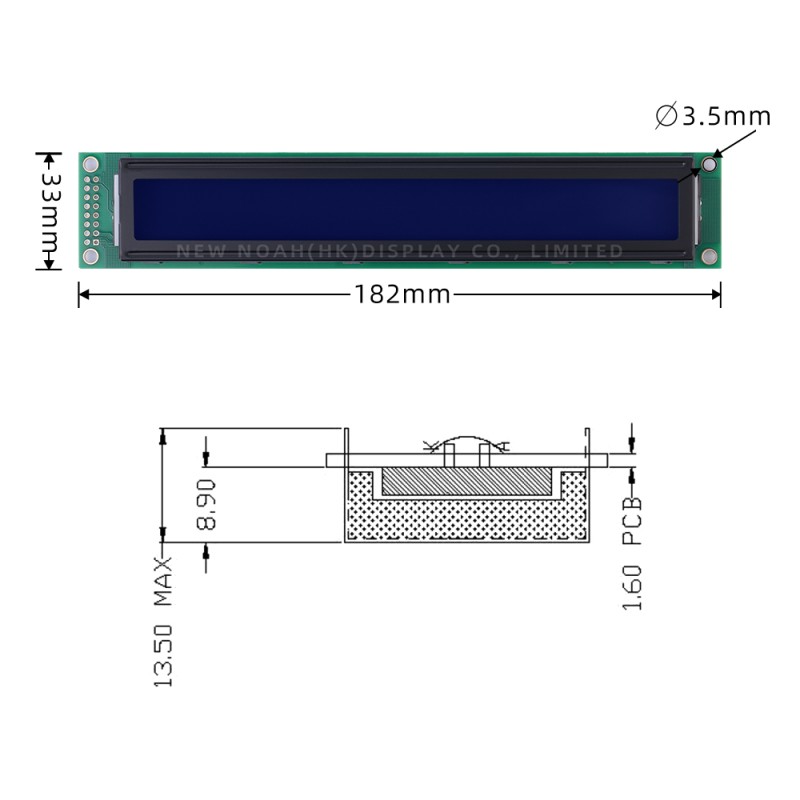

Outline Dimension :
182x33x13.5mm
Hign-concerned Chemical :
None
Controller :
ST7066U
Resolution :
40*02
Display Mode :
4002
View Size :
152x17mm
Model Number :
4002A
is_customized :
Yes
Color :
Blue Film
Description

4002A

A robust and reliable display module designed for a variety of industrial and commercial applications. The 4002A offers a clear and concise display, ensuring optimal readability even in challenging environments.

  • Clear and Concise Display: Ensures excellent readability.
  • Durable Construction: Built to withstand demanding environments.
  • Versatile Applications: Suitable for a wide range of industries.
  • Easy Integration: Simple to incorporate into existing systems.

Target Industries: Industrial automation, instrumentation, consumer electronics, and more.

Product Attributes

FOB Price: 7.34 USD
MOQ: Not Specified
Packaging & Delivery: Not Specified

Technical Specifications

Attribute Value
High-Concerned Chemical None
Display Mode 4002
Resolution 40*02
Is Customized Yes
Model Number 4002A
Type COB
Origin Mainland China
Outline Dimension 182x33x13.5mm
View Size 152x17mm
Controller ST7066U


Blue Film White Letters 4002A High Brightness LCD Screen 2X40 4002 ST7066U 40*2-Character Dot Matrix Screen

Blue Film White Letters 4002A High Brightness LCD Screen 2X40 4002 ST7066U 40*2-Character Dot Matrix Screen

Blue Film White Letters 4002A High Brightness LCD Screen 2X40 4002 ST7066U 40*2-Character Dot Matrix Screen

Blue Film White Letters 4002A High Brightness LCD Screen 2X40 4002 ST7066U 40*2-Character Dot Matrix Screen

Blue Film White Letters 4002A High Brightness LCD Screen 2X40 4002 ST7066U 40*2-Character Dot Matrix Screen

Blue Film White Letters 4002A High Brightness LCD Screen 2X40 4002 ST7066U 40*2-Character Dot Matrix Screen

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
