European Gray Film 4002A COB Monochrome Screen LCM LCD Screen
European Gray Film 4002A COB Monochrome Screen LCM LCD Screen
European Gray Film 4002A COB Monochrome Screen LCM LCD Screen
European Gray Film 4002A COB Monochrome Screen LCM LCD Screen
European Gray Film 4002A COB Monochrome Screen LCM LCD Screen
European Gray Film 4002A COB Monochrome Screen LCM LCD Screen
European Gray Film 4002A COB Monochrome Screen LCM LCD Screen
European Gray Film 4002A COB Monochrome Screen LCM LCD Screen
European Gray Film 4002A COB Monochrome Screen LCM LCD Screen
European Gray Film 4002A COB Monochrome Screen LCM LCD Screen
European Gray Film 4002A COB Monochrome Screen LCM LCD Screen
European Gray Film 4002A COB Monochrome Screen LCM LCD Screen
Specifications

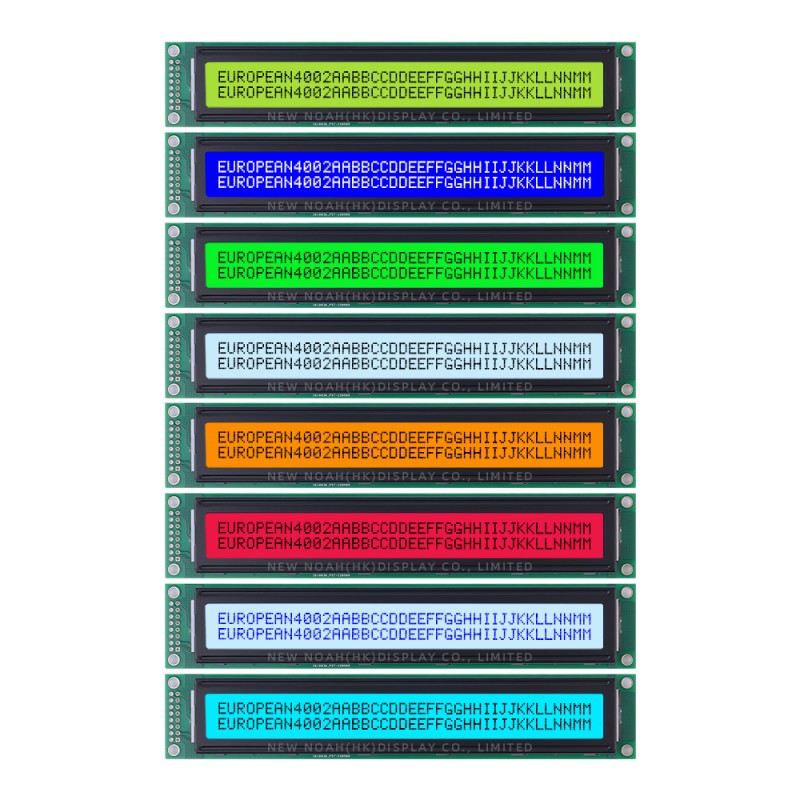

Color :
Red light-black font, Gray light-black font, Green light-black font, Gray light-blue font, Orange light-black font, Ice blue light-black font
is_customized :
Yes
Type :
COB

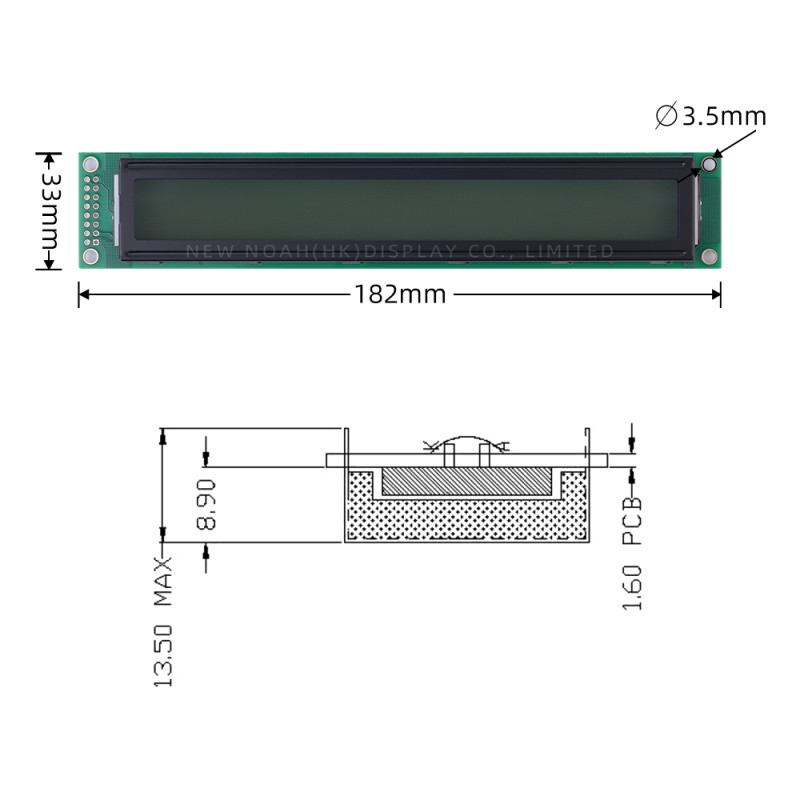

Outline Dimension :
182x33x13.5mm
Resolution :
40*02
Display Mode :
4002
View Size :
152x17mm
Model Number :
European 4002A
Hign-concerned Chemical :
None
Origin :
Mainland China
Controller :
ST7066U
Description

European 4002A

The European 4002A is a high-quality display module designed for various industrial and commercial applications. Its robust construction and clear display make it an ideal choice for demanding environments.

Key Benefits:

  • Clear and easily readable display
  • Durable and reliable construction
  • Suitable for a wide range of applications
  • Customizable to meet specific needs

Target Industries & Applications:

Industrial automation, control panels, instrumentation, and embedded systems.

n

Product Attributes

FOB Unit: piece
Product MOQ: N/A
FOB Price: 11.22
Packaging & Delivery: N/A

Technical Specifications

Attribute Value
Hign-concerned Chemical None
Display Mode 4002
Resolution 40*02
is_customized Yes
Model Number European 4002A
Type COB
Origin Mainland China
Outline Dimension 182x33x13.5mm
View Size 152x17mm
Controller ST7066U


European Gray Film 4002A COB Monochrome Screen LCM LCD Screen

European Gray Film 4002A COB Monochrome Screen LCM LCD Screen

European Gray Film 4002A COB Monochrome Screen LCM LCD Screen

European Gray Film 4002A COB Monochrome Screen LCM LCD Screen

European Gray Film 4002A COB Monochrome Screen LCM LCD Screen

European Gray Film 4002A COB Monochrome Screen LCM LCD Screen

European Gray Film 4002A COB Monochrome Screen LCM LCD Screen

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
