Specifications
is_customized :
Yes
Hign-concerned Chemical :
None

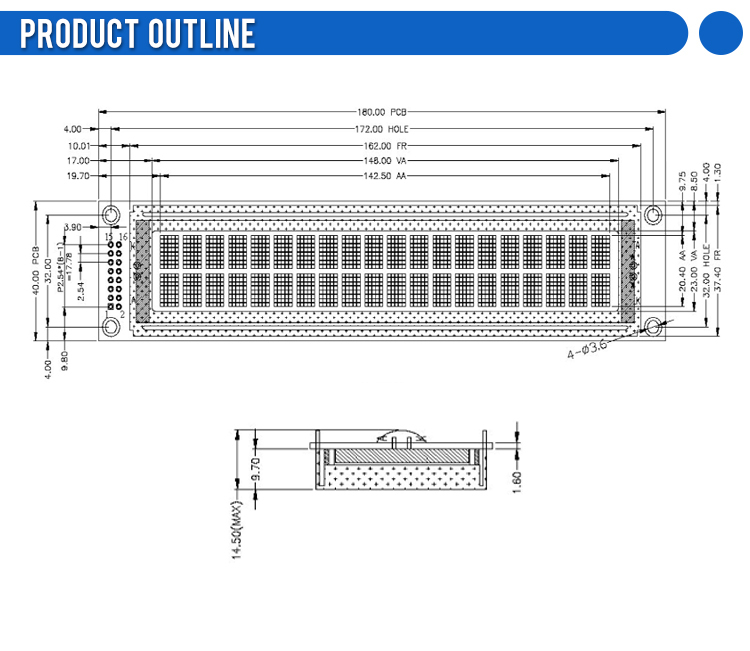

Outline Dimension :
180x40x14.5mm
Display Mode :
2002
Color :
DFSTN black film
Origin :
Mainland China
View Size :
148x23mm
Resolution :
20*02
Model Number :
2002K-2
Controller :
ST7066U
Type :
COB
Description

2002K-2

A robust and reliable display solution designed for various industrial and commercial applications. The 2002K-2 offers clear visibility and dependable performance.

Key Benefits:

  • Clear and concise display
  • Durable construction for long-lasting performance
  • Easy integration into existing systems
  • Customizable options available

Target Industries: Industrial automation, consumer electronics, and instrumentation.

Typical Applications: Control panels, testing equipment, and information displays.

Product Attributes

FOB Price: 8.63 USD

Technical Specifications

Attribute Value
Hign-concerned Chemical None
Display Mode 2002
Resolution 20*02
Is Customized Yes
Model Number 2002K-2
Type COB
Origin Mainland China
Outline Dimension 180x40x14.5mm
View Size 148x23mm
Controller ST7066U

DFSTN black film 2002K-2 LCD Screen 2*20 Large Size ST7066U LED Backlit White Text 51 Microcontroller STM32

DFSTN black film 2002K-2 LCD Screen 2*20 Large Size ST7066U LED Backlit White Text 51 Microcontroller STM32

DFSTN black film 2002K-2 LCD Screen 2*20 Large Size ST7066U LED Backlit White Text 51 Microcontroller STM32

DFSTN black film 2002K-2 LCD Screen 2*20 Large Size ST7066U LED Backlit White Text 51 Microcontroller STM32

DFSTN black film 2002K-2 LCD Screen 2*20 Large Size ST7066U LED Backlit White Text 51 Microcontroller STM32

DFSTN black film 2002K-2 LCD Screen 2*20 Large Size ST7066U LED Backlit White Text 51 Microcontroller STM32

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
