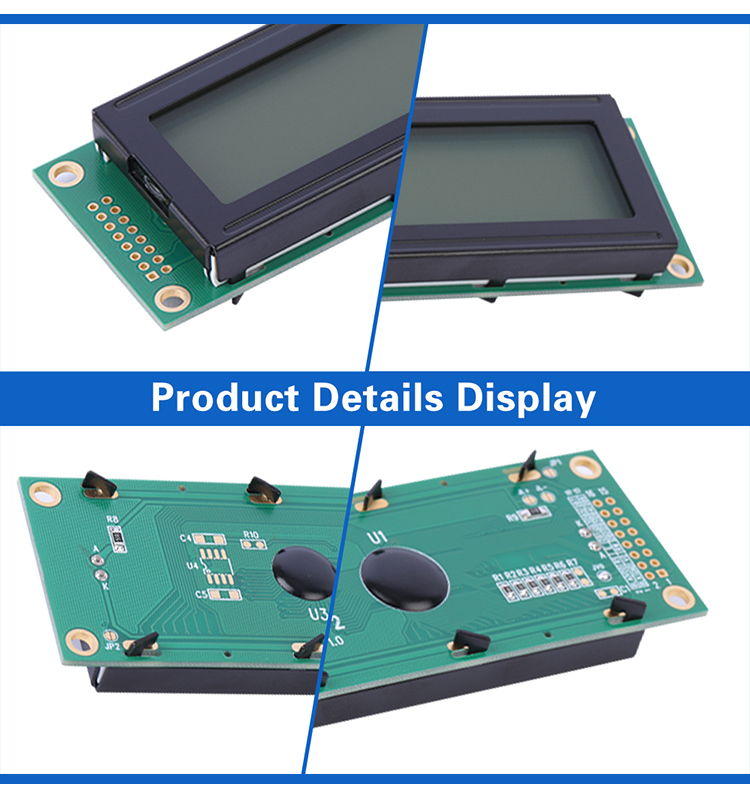

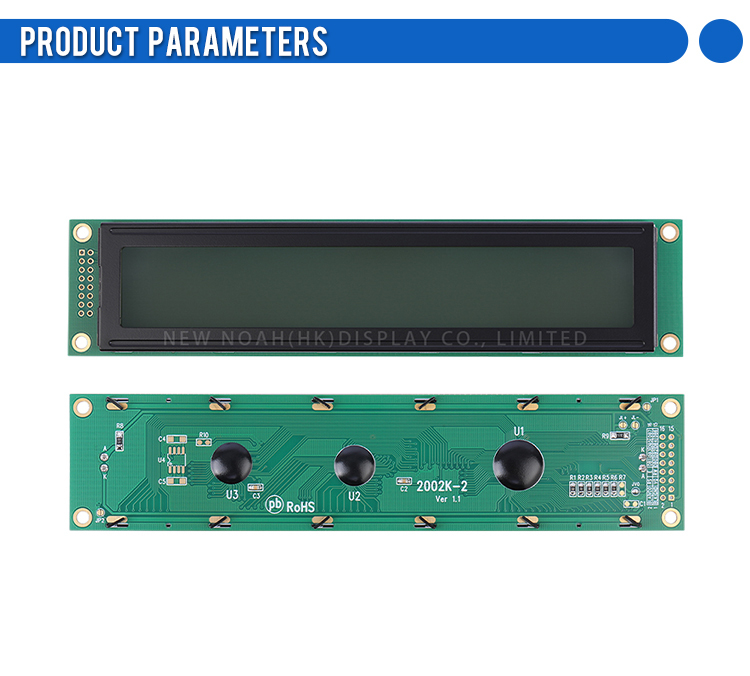

Gray Film 2002K-2 LCD Display Module 2X20 Optional ST7066U Font Screen Character LCD Display

Specifications

Display Mode :

2002

Hign-concerned Chemical :

None

Model Number :

2002K-2

Origin :

Mainland China

Controller :

ST7066U

Color :

Red light-black font, Gray light-black font, Green light-black font, Gray light-blue font, Orange light-black font, Ice blue light-black font

Outline Dimension :

180x40x14.5mm

View Size :

148x23mm

Type :

COB

Resolution :

20*02

is_customized :

Yes

Description

2002K-2

The 2002K-2 is a reliable and versatile display module designed for a wide range of industrial and commercial applications. Its robust construction and clear display make it an ideal choice for demanding environments.

Key Benefits:

Clear and readable display
Durable and reliable construction
Easy to integrate into existing systems
Customizable options available
Cost-effective solution

Target Industries and Applications: Industrial automation, medical devices, instrumentation, and consumer electronics.

Product Attributes

FOB Unit Piece

FOB Price 8.59

Technical Specifications

Attribute	Value
Hign-concerned Chemical	None
Display Mode	2002
Resolution	20*02
is_customized	Yes
Model Number	2002K-2
Type	COB
Origin	Mainland China
Outline Dimension	180x40x14.5mm
View Size	148x23mm
Controller	ST7066U

Gray Film 2002K-2 LCD Display Module 2X20 Optional ST7066U Font Screen Character LCD Display

1. LCD size: The maximum overall size or viewing area size, which size should be specified when providing it

2. LCD thickness: The thickness of conventional single glass is divided into 0.55mm,0.7mm, and 1.1mm

3. Display mode: Generally, there are five display modes: TN, HTN, STN, FSTN, and VA. Additionally, it is necessary to provide positive or negative display.

4. Generally, the VA screen is used for negative display

5. Polarizer type: fully transparent (with or without backlight), semi transparent (with or without backlight), reflective (without backlight)

6. Working temperature: 0 °C~+50 °C, -10 °C~+60 °C, -20 °C~+70 °C, -30 °C~80 °C,-40°C~+90°C

7. Connection method: metal pins, zebra stripes, FPC, etc

8. Working voltage: determined according to customer requirements

9. Drive method: commonly used 1/4DUTY 1/3BAIS according to customer requirements

10. Driver IC: The commonly used IC for segment code screens is usually 1621 or 1622
